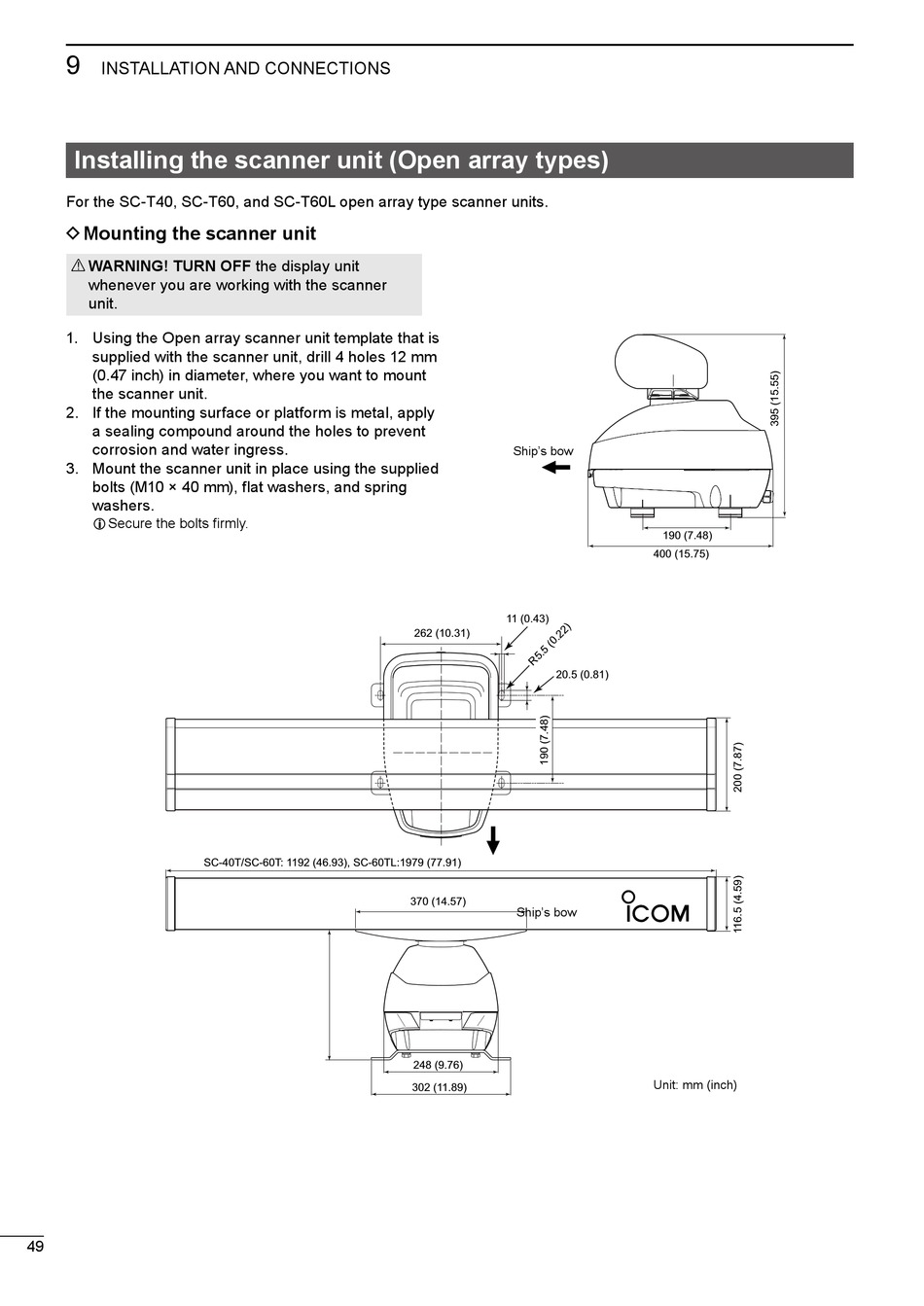

INSTALLATION AND CONNECTIONS

Installing the scanner unit (Open array types)

Installing the scanner unit (Open array types)
For the SC-T40, SC-T60, and SC-T60L open array type scanner units.
D Mounting the scanner unit
R WARNING! TURN OFF the display unit
whenever you are working with the scanner
unit.
1. Using the Open array scanner unit template that is
supplied with the scanner unit, drill 4 holes 12 mm
(0.47 inch) in diameter, where you want to mount
the scanner unit.
2. If the mounting surface or platform is metal, apply
a sealing compound around the holes to prevent
corrosion and water ingress.
3. Mount the scanner unit in place using the supplied
bolts (M10 × 40 mm), flat washers, and spring
washers.
L Secure the bolts firmly.
49
SC-40T/SC-60T: 1192 (46.93), SC-60TL:1979 (77.91)
Ship's bow
11 (0.43)
262 (10.31)
20.5 (0.81)
370 (14.57)
Ship's bow
248 (9.76)
302 (11.89)
190 (7.48)
400 (15.75)
Unit: mm (inch)
