8

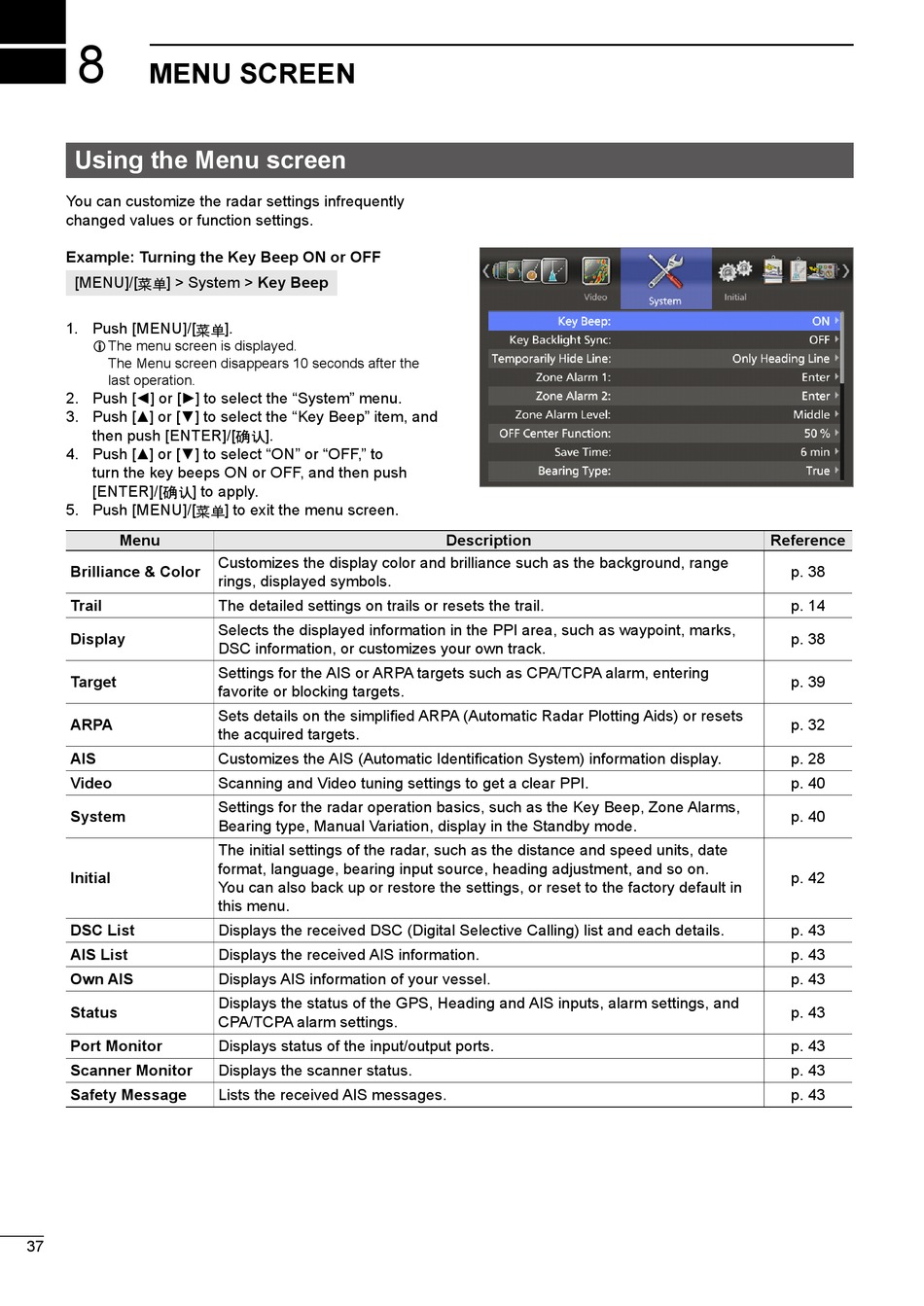

MENU SCREEN

Using the Menu screen

You can customize the radar settings infrequently
changed values or function settings.
Example: Turning the Key Beep ON or OFF
] > System > Key Beep
[MENU]/[
1. Push [MENU]/[
L The menu screen is displayed.
The Menu screen disappears 10 seconds after the
last operation.
2. Push [◄] or [►] to select the "System" menu.
3. Push [▲] or [▼] to select the "Key Beep" item, and
then push [ENTER]/[
4. Push [▲] or [▼] to select "ON" or "OFF," to
turn the key beeps ON or OFF, and then push
[ENTER]/[ ] to apply.
5. Push [MENU]/[
Menu
Brilliance & Color
Trail
Display
Target
ARPA
AIS
Video
System
Initial
DSC List
AIS List
Own AIS
Status
Port Monitor
Scanner Monitor
Safety Message
37
].
].
] to exit the menu screen.
Customizes the display color and brilliance such as the background, range
rings, displayed symbols.
The detailed settings on trails or resets the trail.
Selects the displayed information in the PPI area, such as waypoint, marks,
DSC information, or customizes your own track.
Settings for the AIS or ARPA targets such as CPA/TCPA alarm, entering
favorite or blocking targets.
Sets details on the simplified ARPA (Automatic Radar Plotting Aids) or resets
the acquired targets.
Customizes the AIS (Automatic Identification System) information display.
Scanning and Video tuning settings to get a clear PPI.
Settings for the radar operation basics, such as the Key Beep, Zone Alarms,
Bearing type, Manual Variation, display in the Standby mode.
The initial settings of the radar, such as the distance and speed units, date
format, language, bearing input source, heading adjustment, and so on.
You can also back up or restore the settings, or reset to the factory default in
this menu.
Displays the received DSC (Digital Selective Calling) list and each details.
Displays the received AIS information.
Displays AIS information of your vessel.
Displays the status of the GPS, Heading and AIS inputs, alarm settings, and
CPA/TCPA alarm settings.
Displays status of the input/output ports.
Displays the scanner status.
Lists the received AIS messages.
Description Reference
p. 38
p. 14
p. 38
p. 39
p. 32
p. 28
p. 40
p. 40
p. 42
p. 43
p. 43
p. 43
p. 43
p. 43
p. 43
p. 43
