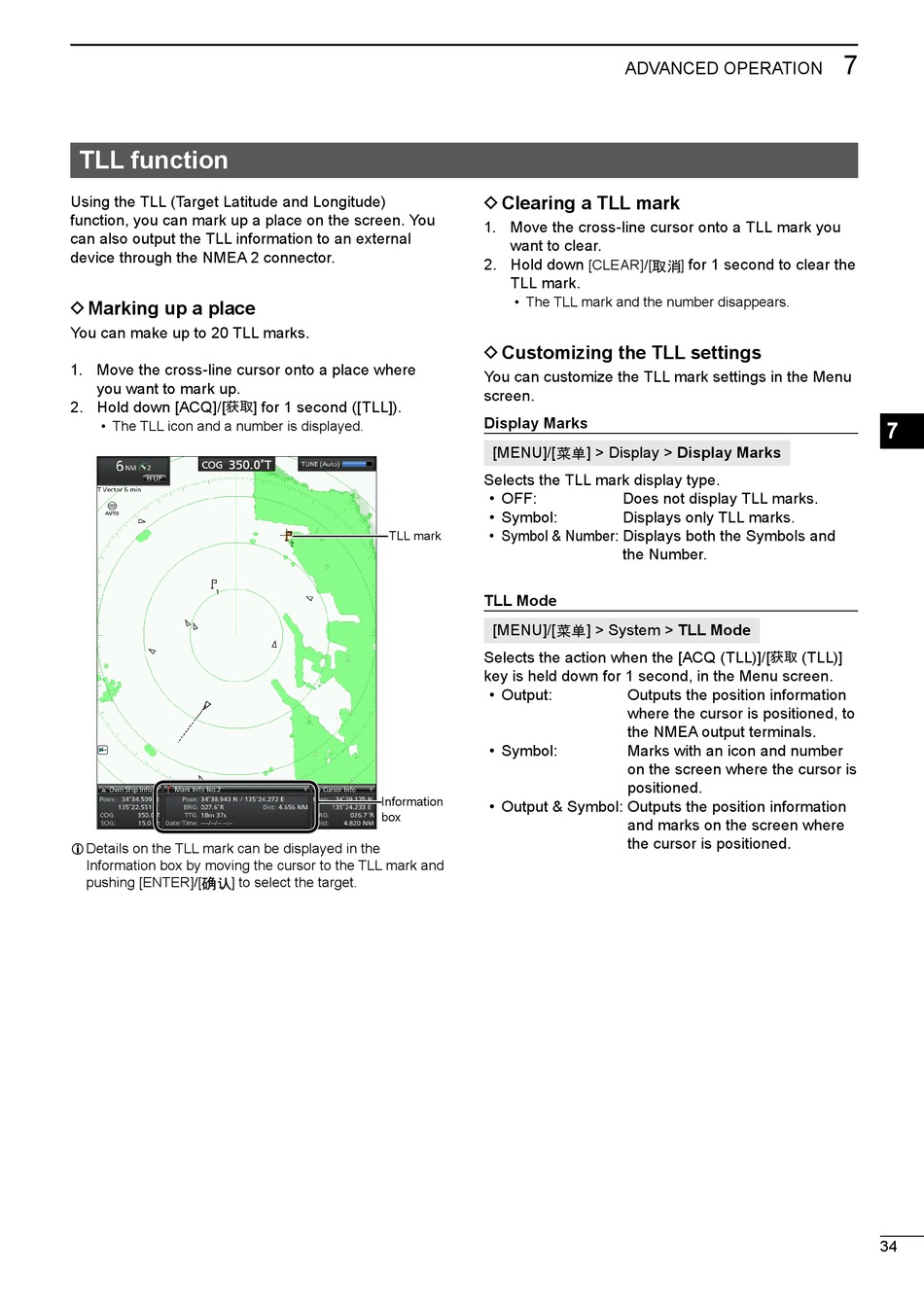

TLL function

Using the TLL (Target Latitude and Longitude)
function, you can mark up a place on the screen. You
can also output the TLL information to an external
device through the NMEA 2 connector.
D Marking up a place
You can make up to 20 TLL marks.
1. Move the cross-line cursor onto a place where
you want to mark up.
2. Hold down [ACQ]/[
• The TLL icon and a number is displayed.
L Details on the TLL mark can be displayed in the
Information box by moving the cursor to the TLL mark and
pushing [ENTER]/[ ] to select the target.
] for 1 second ([TLL]).
TLL mark
Information
box
ADvANCED OPERATION
D Clearing a TLL mark
1. Move the cross-line cursor onto a TLL mark you
want to clear.
2. Hold down
[CLEAR]/[
TLL mark.
• The TLL mark and the number disappears.
D Customizing the TLL settings
You can customize the TLL mark settings in the Menu
screen.
Display Marks
] > Display > Display Marks
[MENU]/[
Selects the TLL mark display type.
• OFF: Does not display TLL marks.
• Symbol: Displays only TLL marks.
• Symbol & Number: Displays both the Symbols and
the Number.
TLL Mode
[MENU]/[ ] > System > TLL Mode
Selects the action when the [ACQ (TLL)]/[
key is held down for 1 second, in the Menu screen.
• Output: Outputs the position information
where the cursor is positioned, to
the NMEA output terminals.
• Symbol: Marks with an icon and number
on the screen where the cursor is
positioned.
• Output & Symbol: Outputs the position information
and marks on the screen where
the cursor is positioned.
7
for 1 second to clear the
]
(TLL)]
