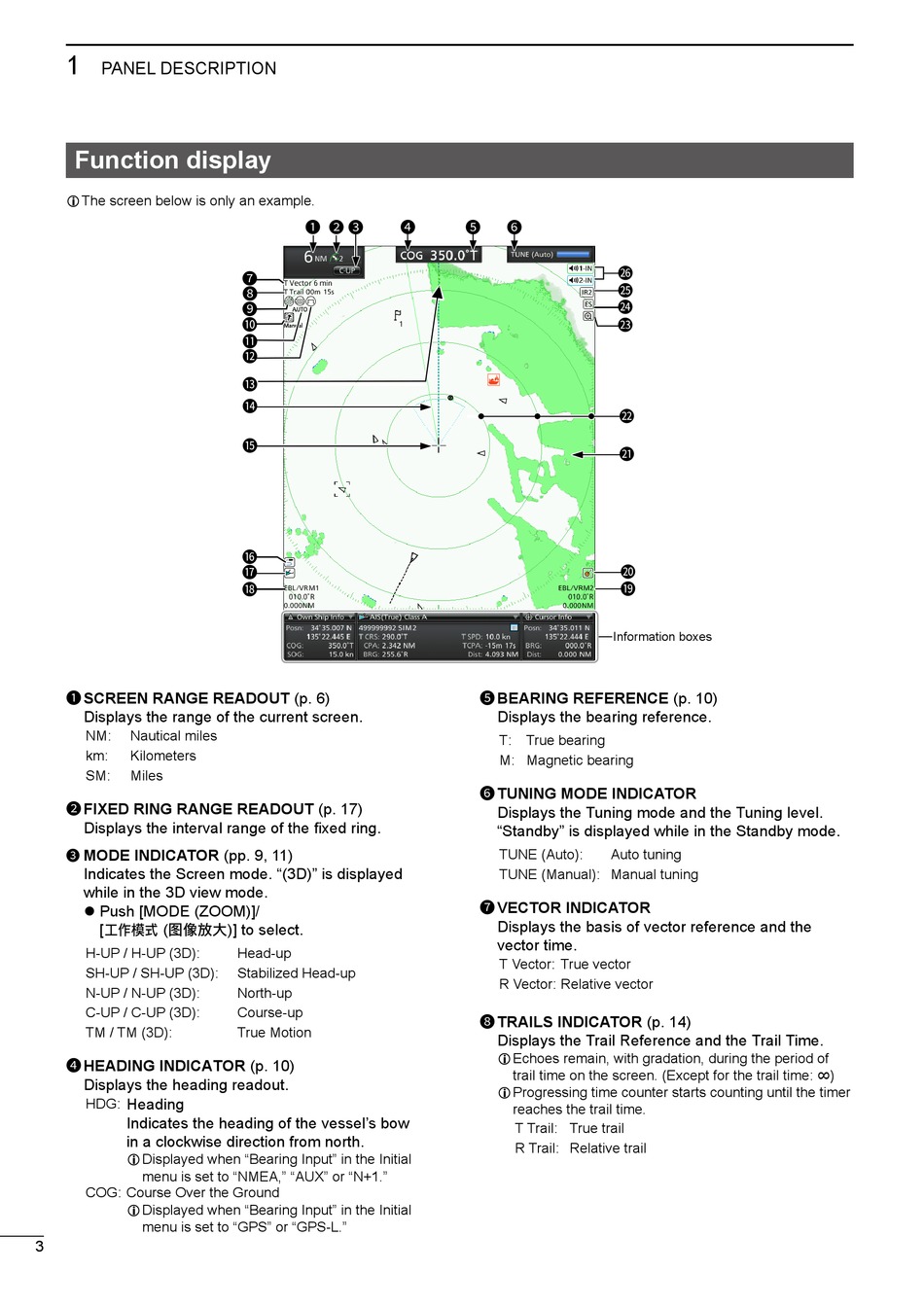

Function Display - Icom MR-1220 Series Instruction Manual

1
PANEL DESCRIPTION

Function display

L The screen below is only an example.
1 SCREEN RANGE READOUT (p. 6)
Displays the range of the current screen.
NM: Nautical miles
km: Kilometers
SM: Miles
2 FIXED RING RANGE READOUT (p. 17)
Displays the interval range of the fixed ring.
MODE INDICATOR (pp. 9, 11)
3
Indicates the Screen mode. "(3D)" is displayed
while in the 3D view mode.
z Push [MODE (ZOOM)]/
[ (
H-UP / H-UP (3D):
SH-UP / SH-UP (3D):
N-UP / N-UP (3D):
C-UP / C-UP (3D):
TM / TM (3D):
4 HEADING INDICATOR (p. 10)
Displays the heading readout.
Heading
HDG:
Indicates the heading of the vessel's bow
in a clockwise direction from north.
L Displayed when "Bearing Input" in the Initial
menu is set to "NMEA," "AUX" or "N+1."
COG: Course Over the Ground
L Displayed when "Bearing Input" in the Initial
menu is set to "GPS" or "GPS-L."
3
1 2 3 4
7
8
9
10
11
12
13
14
15
16
17
18
)] to select.
Head-up
Stabilized Head-up
North-up
Course-up
True Motion
5 6
26
25
24
23
22
21
20
19
Information boxes
5 BEARING REFERENCE (p. 10)
Displays the bearing reference.
T: True bearing
M: Magnetic bearing
6 TUNING MODE INDICATOR
Displays the Tuning mode and the Tuning level.
"Standby" is displayed while in the Standby mode.
TUNE (Auto): Auto tuning
TUNE (Manual): Manual tuning
7 VECTOR INDICATOR
Displays the basis of vector reference and the
vector time.
T Vector: True vector
R Vector: Relative vector
8 TRAILS INDICATOR (p. 14)
Displays the Trail Reference and the Trail Time.
L Echoes remain, with gradation, during the period of
trail time on the screen. (Except for the trail time: ∞)
L Progressing time counter starts counting until the timer
reaches the trail time.
T Trail: True trail
R Trail: Relative trail
