Disassembly

Disconnect the frequency inverter from mains voltage and protect it against being
energized unintentionally.
Remove covers (1) and (2) of the frequency inverter.
7

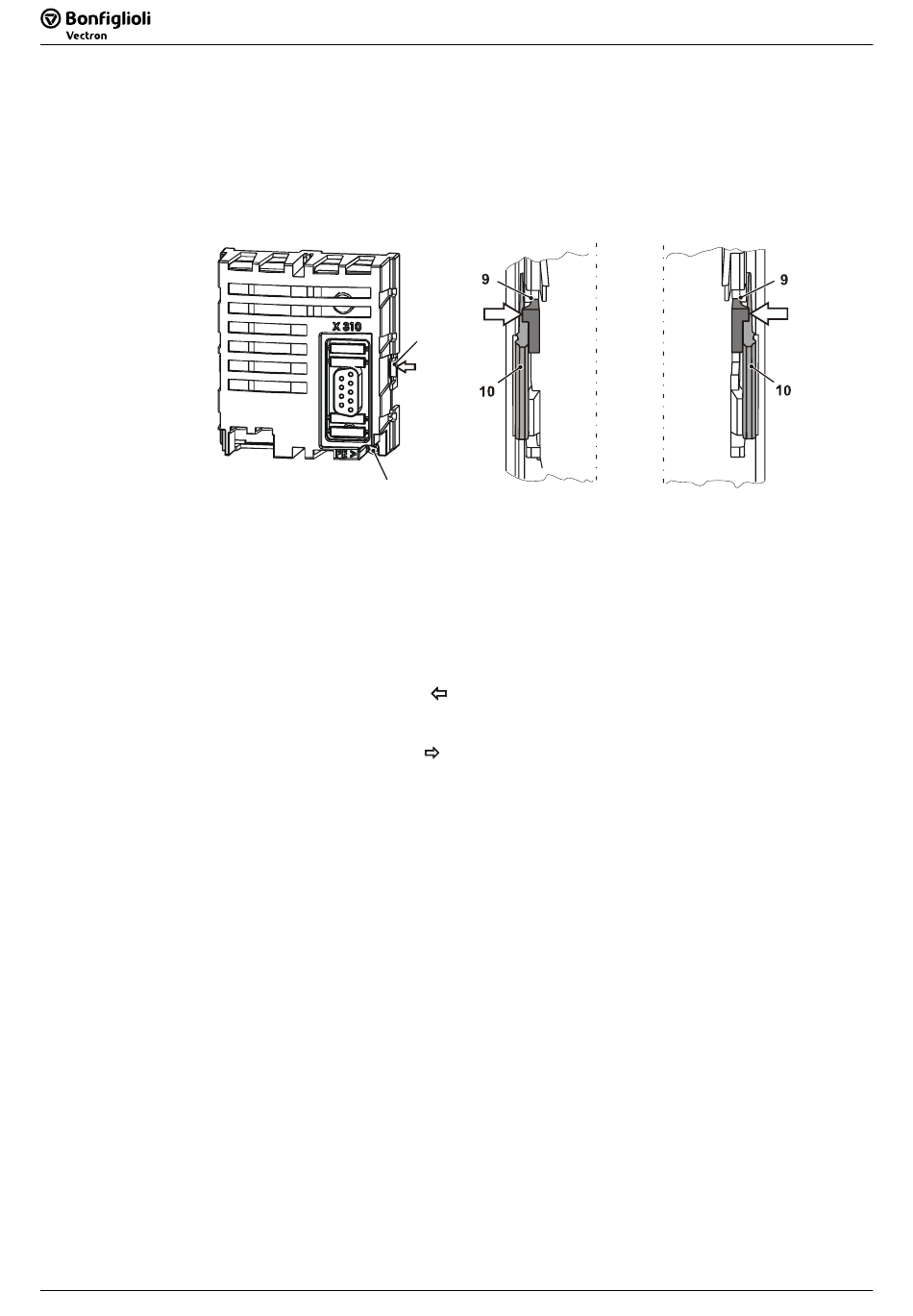

Loosen the M2 screw (7) at the communication module
Unplug the communication module from Slot B (4) by unlocking the locking hooks
(9) on the right and left side of the module from the case of the frequency in-
verter using a small screwdriver.
The looking hooks (9) are located at the place where the looking hooks (10) for
the upper cover (1) project from the case of the frequency inverter.
• To do this, insert the screwdriver in the gap between the case of the module
and the frequency inverter carefully and push the locking hook inwards in the
direction of the arrow (
module a bit on the right side and hold it.
Hold the module on the right side while unlocking the locking hook on the left
•
side in the same way (
• Pull the module out of the slot by gently pulling on the right and left side al-
ternately.
Disassemble the PE spring (5).
Mount the two covers (1) and (2).
Modbus Instruction manual
Modbus Instruction manual
9
). As soon as the right side is unlocked, pull out the
).
