3
3.1
The communication module is pre-assembled in a case. Additionally, a PE spring is
enclosed for PE connection (shield).
Caution! The frequency inverter must be disconnected from power supply before
Work steps:
05/08
05/08

Installation/Disassembly of the communication module

Installation

installation of the communication module.
Assembly under voltage is not permissible and will destroy the frequency
inverter and/or the communication module.
Do not touch the PCB visible on the back of the module, otherwise com-
ponents may be damaged.
Disconnect the frequency inverter from mains voltage and protect it against being
energized unintentionally.

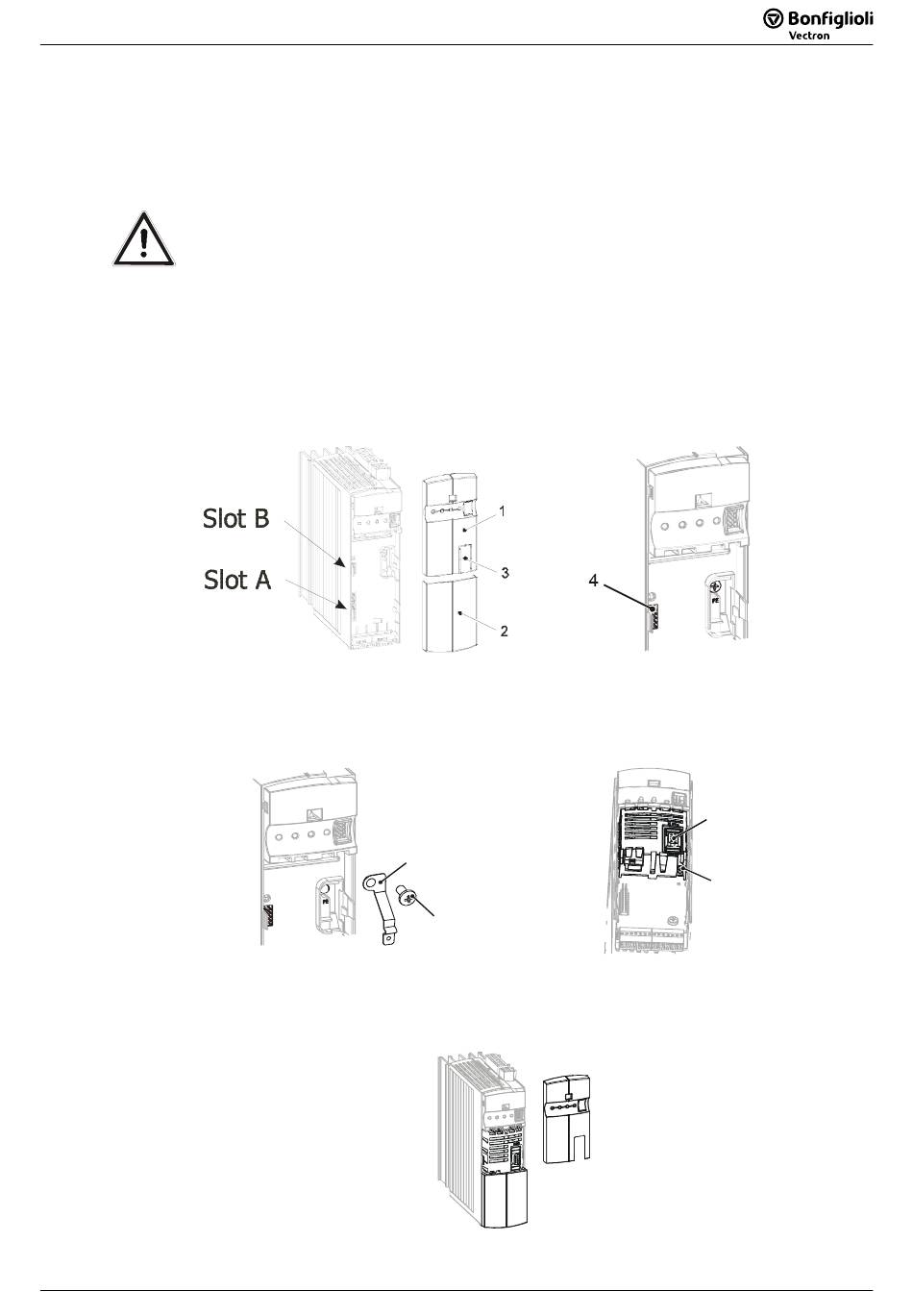

Remove covers (1) and (2) of the frequency inverter. Slot B (4) for the commu-
nication module is now accessible.
Mount the supplied PE spring (5) using the M4 screw (6) in the unit. The spring
must be aligned centrally.
Insert the communication module in slot B (4) until it engages audibly.
Fix the communication module by screwing the M2 screw (7) of the module to the
PE spring (5).
In the upper cover (1), break out the pre-punched cutout (3) for the plug X310
(8).
Mount the two covers (1) and (2).
Modbus Instruction manual
Modbus Instruction manual
5
6
(M4)
8
7
(M2)
9
9
