4.2
•
•
•
•

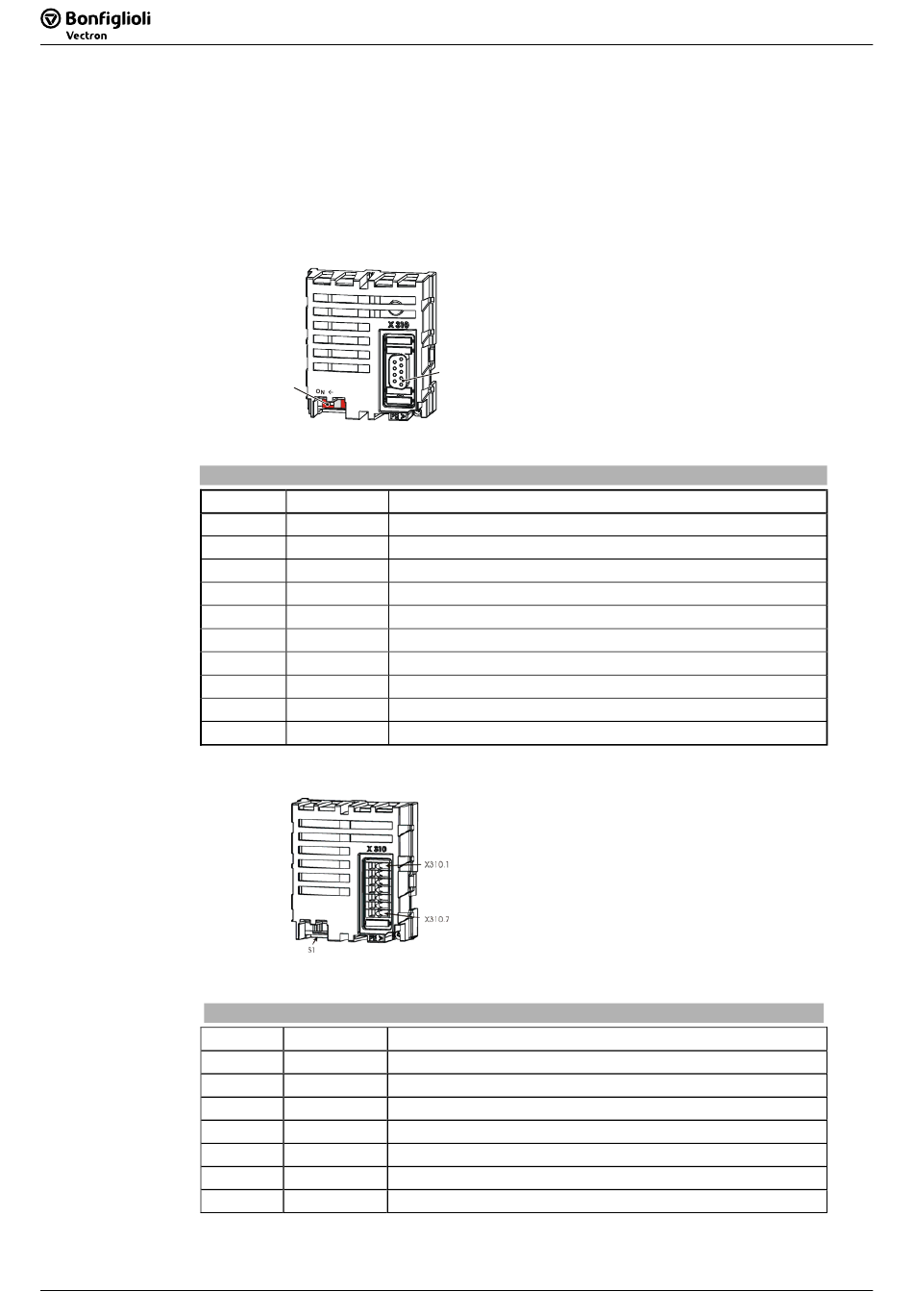

4.2.1 RS485 module CM-485 DB9

Part. No.
179 675-110

4.2.2 RS485 module CM-485 T

Part. no.
179 675-111
12
12

RS485 module

For the bus cable RS485, the twisted and shielded line is to be used
The shield must be a harness shield (not a foil shield)
The shield is to be connected to PE properly on both sides.
The pin assignment of the RS485 cable is different from that of the RS232 cable;
if you use the wrong cable, no communication is possible
S1
Bus Connector X310 CM-485 DB9
pin name
Housing Shield
Data Line B
1
Data Line B'
2
0 V
3
–
4
5 +5 V
6 –
Data Line A
7
Data Line A'
8
–
9
Busstecker X310 CM-485T (7p terminal)
terminal name
1 Data Line A
2 Data Line A'
3 Data Line B
4 Data Line B'
5 +5 V
6 0 V
7 PE
Modbus Instruction manual
Modbus Instruction manual
The RS485 interface is connected via the 9-pin
D-Sub socket X310.
For details on the pin assignment, refer to the
following table.
X310
connected with PE
short-circuit proof and functionally insulated; max. current 60 mA
same as pin 1 – for cable network
GND/earth
n. c.
Supply voltage interface converter +5 V
n. c.
short-circuit proof and functionally insulated; max. current 60 mA
same as pin 7 – for cable network
n. c.
The RS485 interface is connected via the 7-pin
terminal socket X310
For details on the pin assignment, refer to the
following table.
short-circuit proof and functionally insulated; max. current 60 mA
same as terminal 1 – for cable network
short-circuit proof and functionally insulated; max. current 60 mA
same as terminal 3 – for cable network
Supply voltage interface converter +5 V
GND/ earth
Shield/PE
function
function
