Section 3.5 Use the CompactLogix Processor Out Channel Zero or One

To use a CompactLogix processor out Channel Zero on a display:
Chapter 3: Serial ASCII Communications
1. Open a new application.

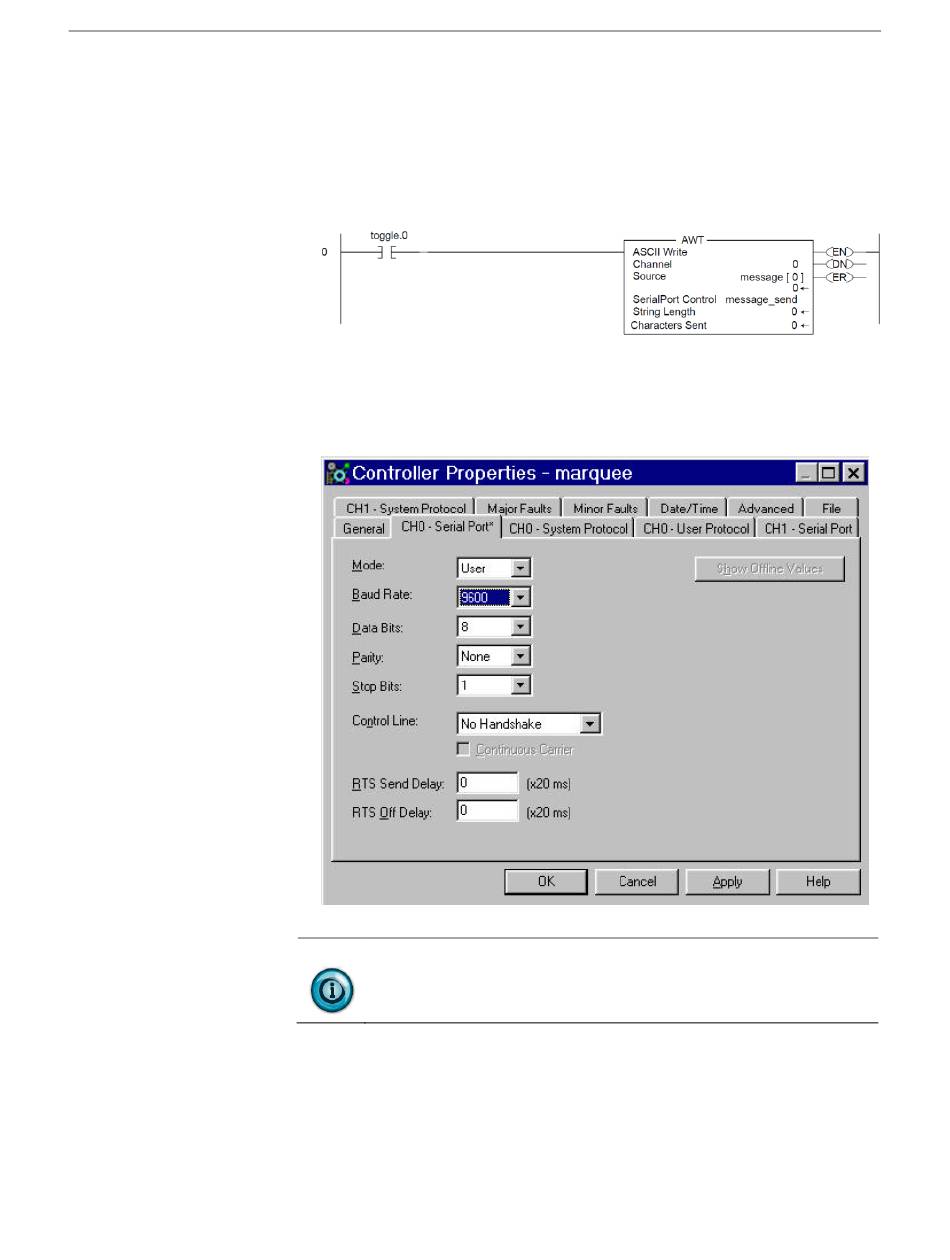

2. Set up the controller properties by right-clicking on the controller name
and selecting properties and then the serial port tab.
The ladder is the same as a ControlLogix except that the user can select
either channel zero or one:
3. The tag setup for this example is:
•
Toggle is of type DINT.
•
Message_send is of type SERIAL_PORT_CONTROL
•
Message is of type SINT[50]
This same setup would need to be done for CH1-System
NOTE
Protocol if using you are using channel one instead of channel
zero.
User's Manual 0300277-02 Rev. D
3-5
