Section 1.7 Mount the 2706-P92-SC and 2706-P94-SC Displays

To mount the sign:
NOTE
Chapter 1: Installing InView Message Display
1. Attach the two sign brackets to a wall, ceiling, or other surface.

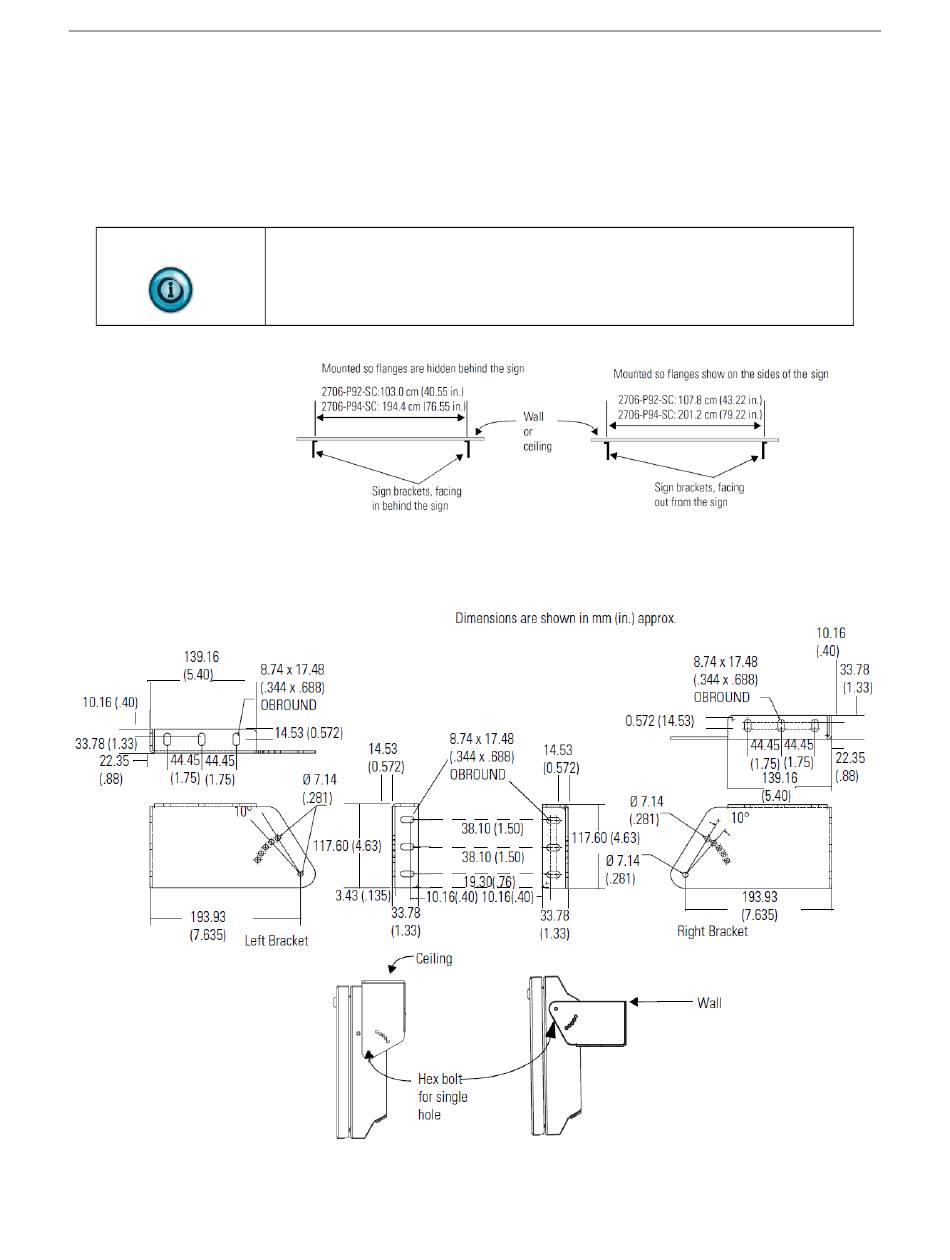

2. Be sure to place the brackets so the bracket flanges face appropriately as
shown below. Mount the brackets the following distance apart (measured
from the center of the mounting holes in each bracket):
Do not install the sign directly to drywall or plaster-board. The sign must
be fastened to a wall capable of supporting at least four times the weight
of the sign.
3. Mount the sign on the sign brackets using the two large hex bolts
supplied.
4. Insert the bolts into the far single holes first, until the desired viewing
angle is determined.
5. Tilt the sign to select a viewing angle.
