Appendix A: Installing InView Marquee 2706-P9xC2-SC Message Displays A-5
1. Disconnect power to the InView display.
2. Loosen the right-hand drawer by unscrewing its 4 screws until you can
pull the drawer out. Set the screws aside for later step.
3. Connect power conduit through the power drawer conduit opening on the
left side of the drawer. Pull wires through the conduit and wire as shown
below. Ensure you follow all applicable, local, electrical codes for
completion of the wiring.
4. The InView Display power terminal block in the right-hand drawer is
rated for wire ranges of 20 to 6 AWG for the power wiring. Strip the
electrical wires back 6.35 mm (0.25 in).

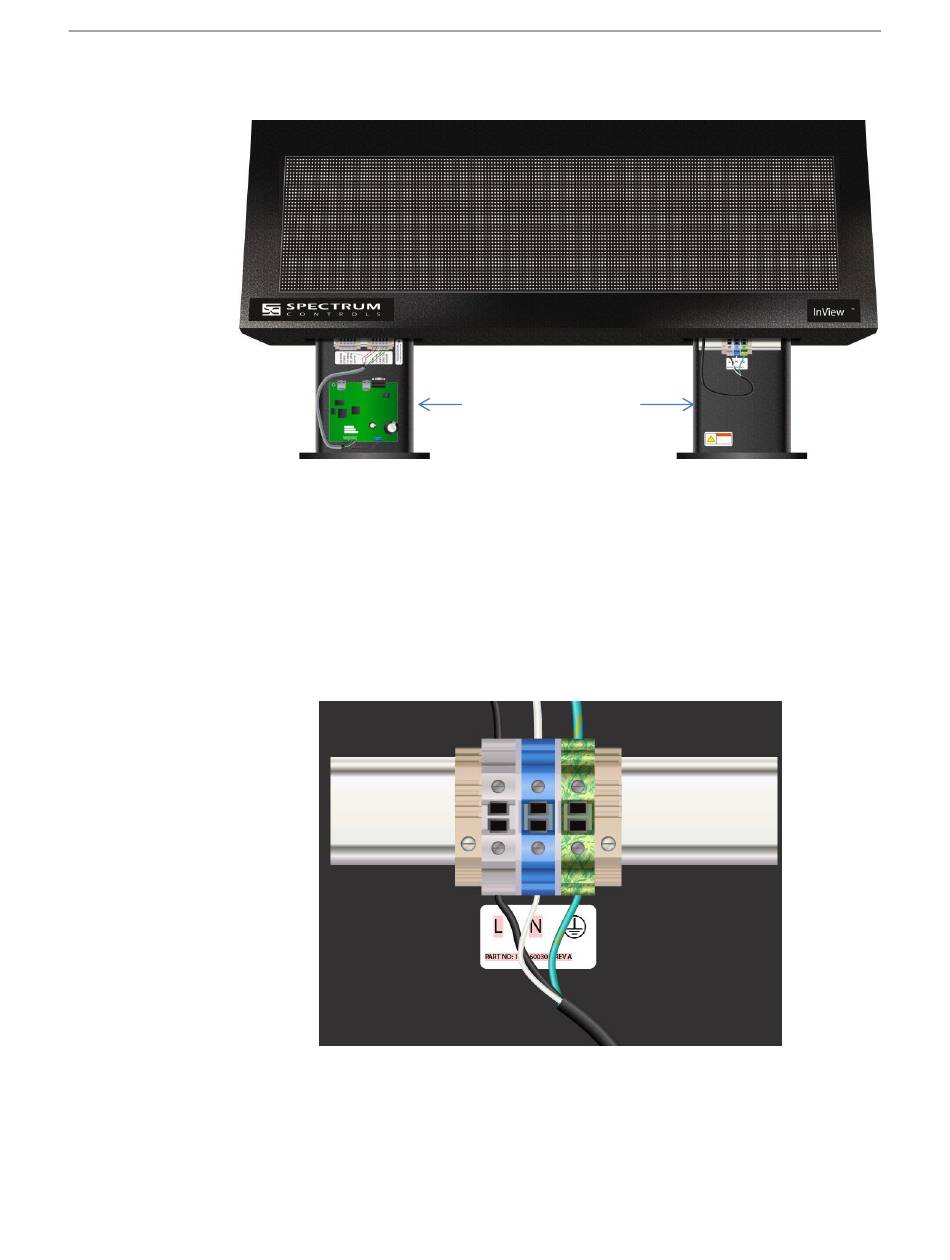

5. Insert the wires into the appropriate terminal connection as shown below
and tighten the screw to 1.47 to 1.7 N-m (13 to 15 in-lbs). Enlarged label
is shown following image below:
