Chapter 3
Serial ASCII Communications
Section 3.1 Use a PLC5 Out Channel Zero
To use a PLC5 out Channel Zero on a display:
1. Create a new application.

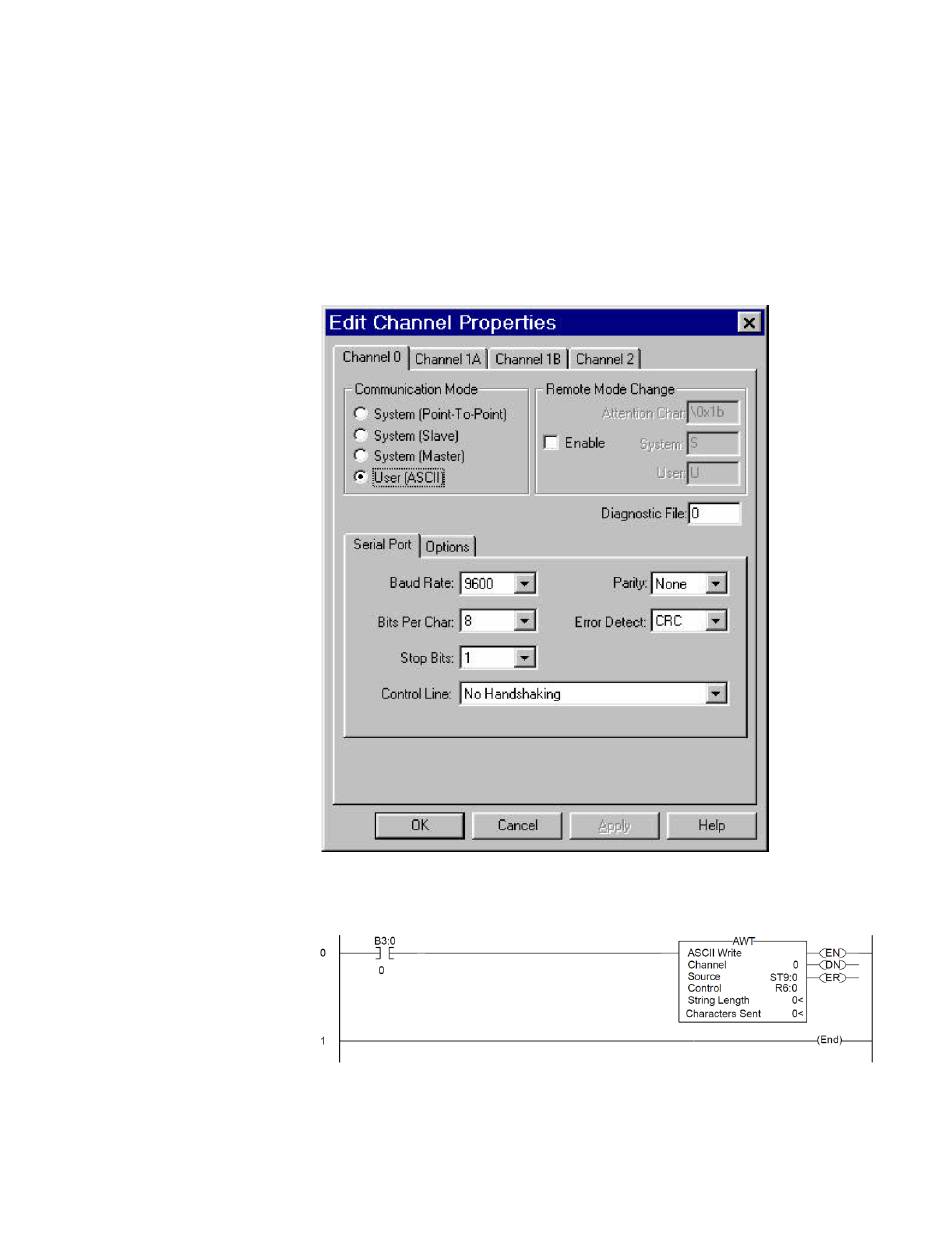

2. Set up the channel configuration.
3. Create a file type String (ST). You insert ASCII/Hex commands in this
file.
4. Set up the ladder logic.
