If the Invalid IP Address window appears, click OK, choose a different
NOTE

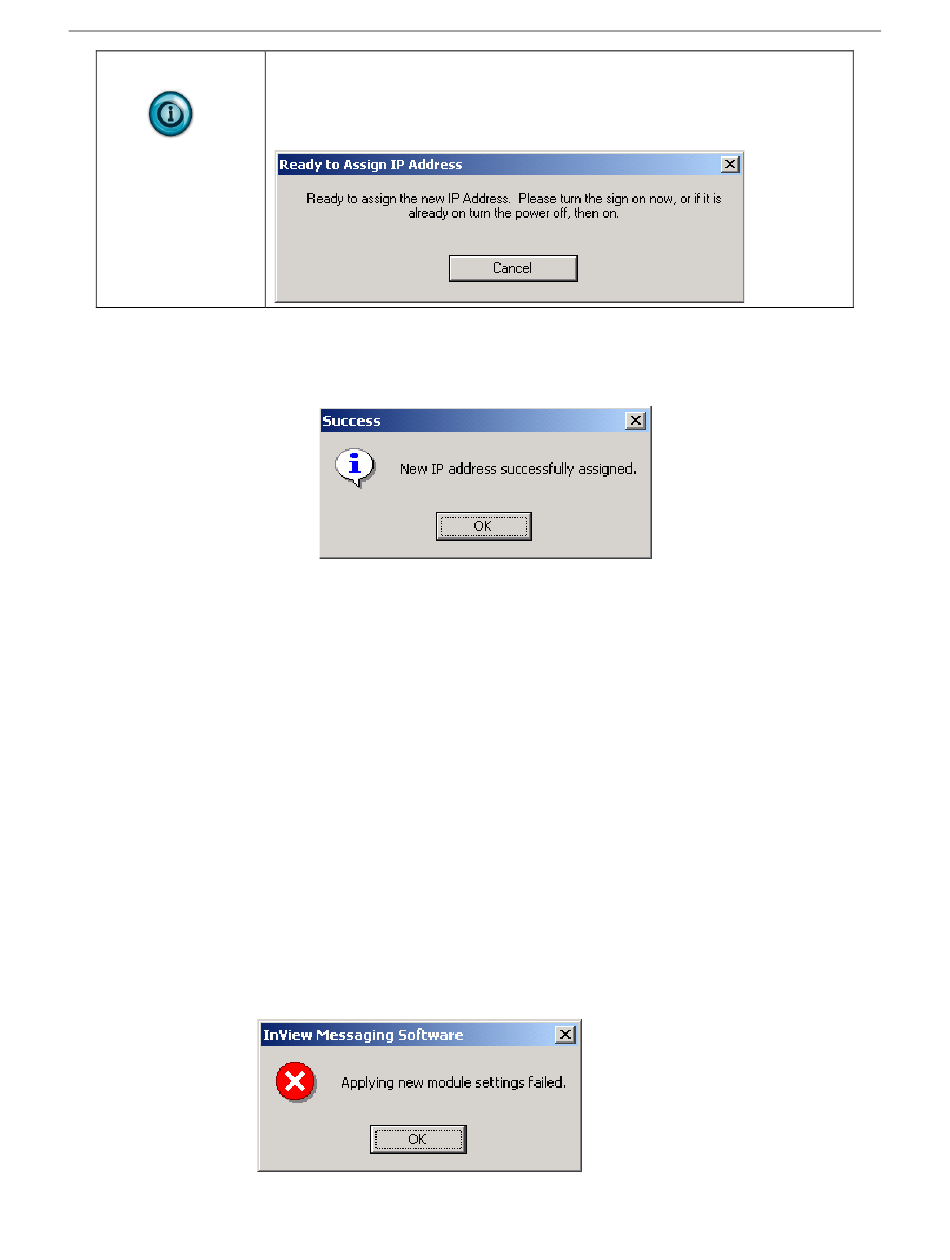

desired IP Address, and click the Setup button again. Once a valid IP
Address is entered, the following window should appear saying it is ready
to assign an IP address:
10. You need to either turn the display on or power cycle the display if it is
already turned on. Upon successful assignment of an IP Address, the
following window appears:
Gateway Address and Subnet Mask Setup
Set up the Gateway address and Subnet Mask if needed based on your Ethernet
Network configuration. Default values typically are for Subnet Mask,
255.255.255.0 and as a default the Gateway address is left blank.
Subnet Mask is a parameter that interprets IP addresses when the network is
divided into multiple networks. The IP address is formatted as four sets of
decimal numbers with periods between them (255.255.255.1). The range of
values for the first set of decimal numbers is 1 to 255. The range of values for the
last three sets of decimal numbers is 0 to 255. The value 0.0.0.0 is not a valid
subnet mask.
Gateway Address is a unique address of the Gateway connecting two individual
IP networks into a system of networks. When a node needs to communicate with
a node on another network, the Gateway transfers the data between the two
networks. The IP address is formatted as four sets of decimal numbers (from 1 to
255) with periods between them (130.0.0.1). The first field cannot be 0 if any
other fields contain a 0.
Once the desired Gateway Address and Subnet Mask have been entered, click on
the Setup button located just below where the Subnet Mask was entered. If for
some reason, the settings are not received by the 2706-PENET1-SC module, the
following error message will appear:
