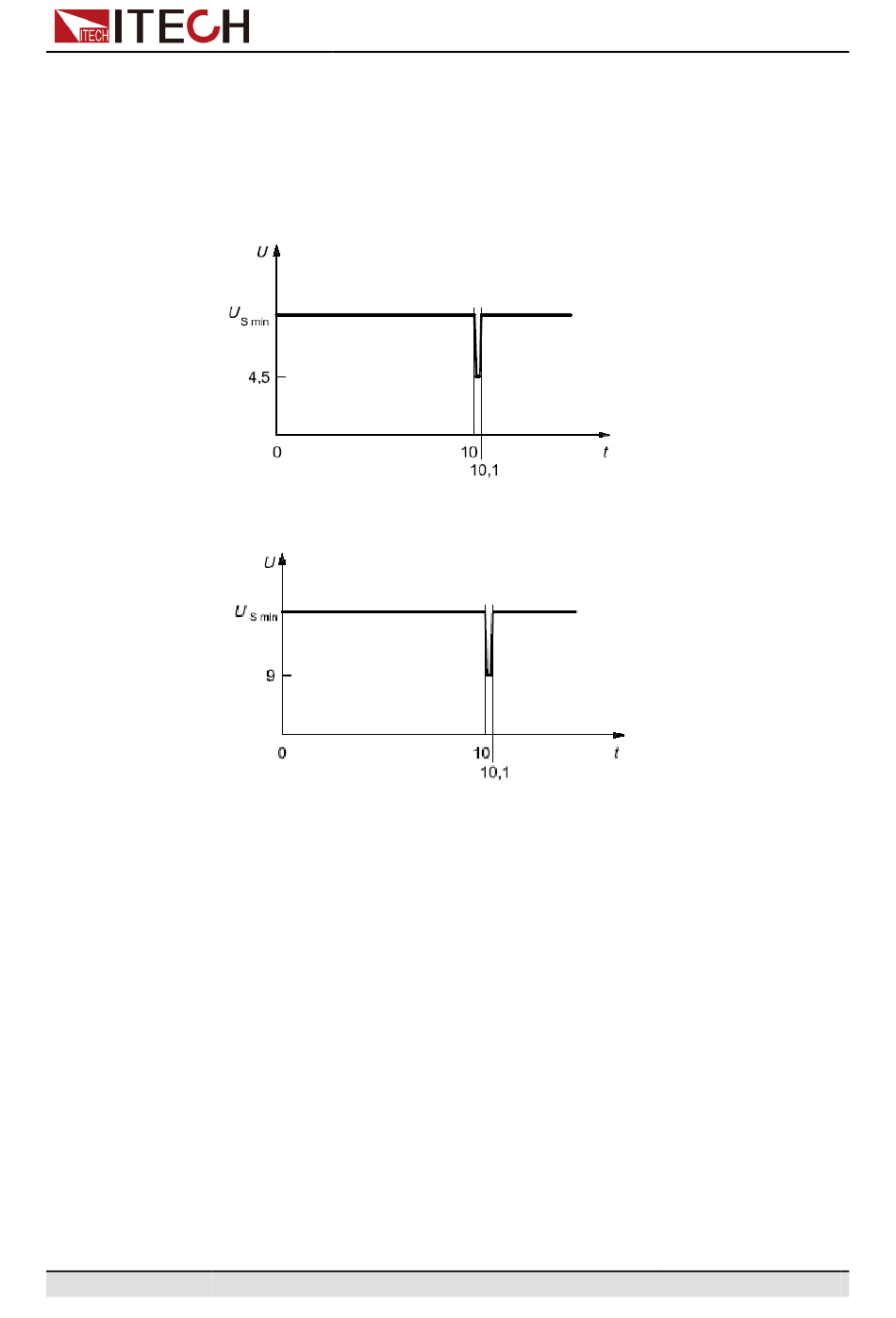

Automotive Short-time Voltage Drop Waveform
This waveform simulates an instantaneous drop in the supply voltage when the
car is started. This test simulates the effect when a conventional fuse element
melts in another circuit.
•
•
How to recall this waveform from menu (take 12V system as an example):
1. Press the composite keys [Shift]+[I-set] (Function) on the front panel to en-
2. Use the knob or press the Up/Down key to select 3.Road-Vehicles = Off
3. Press the Left/Right key to select ISO16750-2 and press [Enter] to confirm.
4. Press the Left/Right key to select Short-Drop and press [Enter] to confirm.
5. Press the Left/Right key to select 12V and press [Enter] to confirm.
6. Press [On/Off] on the front panel to turn on the output.
12V system
24V system
ter the function menu.
and press [Enter].
The interface returns to the main interface of the system and displays
SHORT-DROP.
