DIN40839 for 24V System
Steps
1
2
3

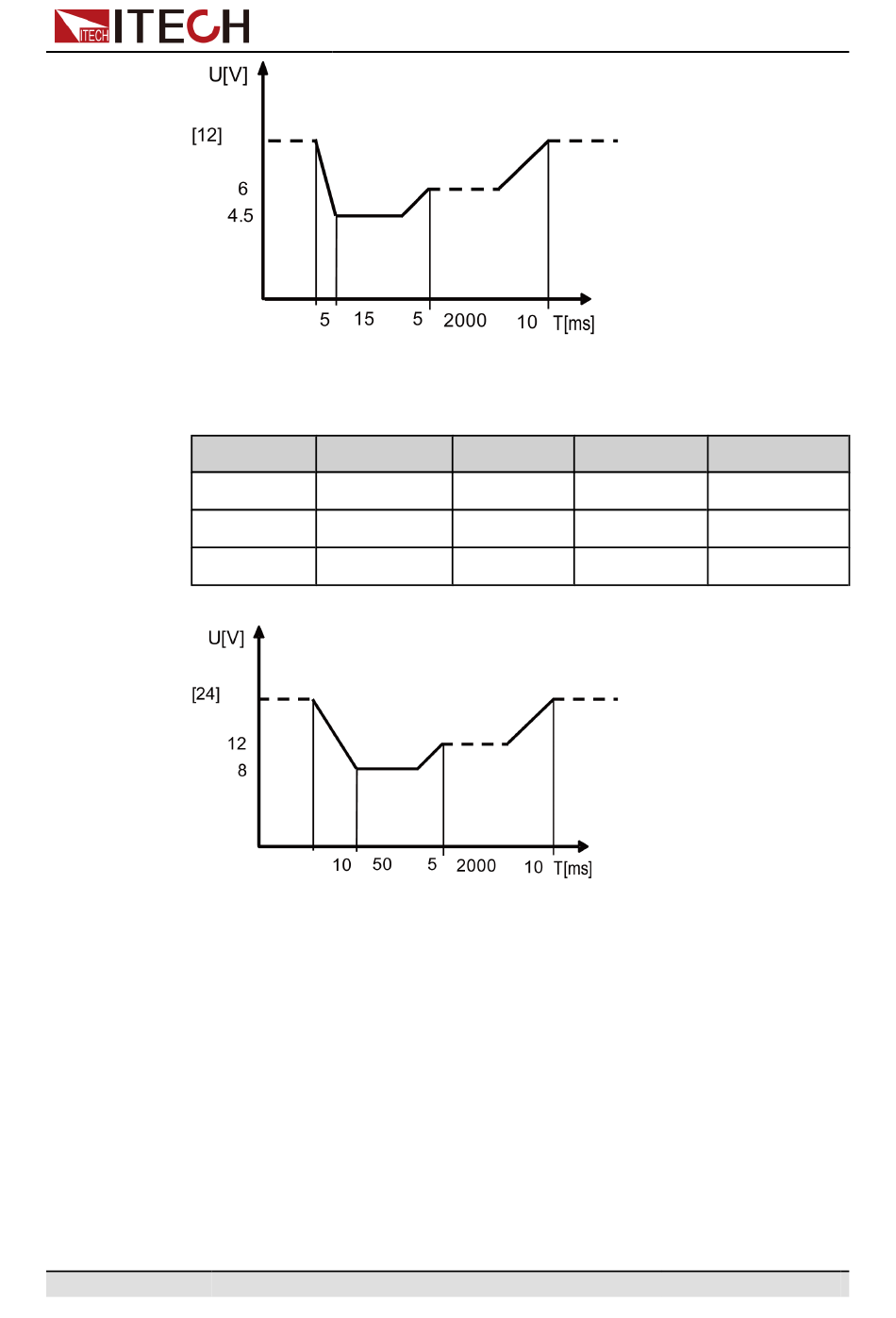

User-defined Startup Voltage Waveform System
The user can define the startup voltage, ranging from 8V to 32V. When the
waveform program is divided into 8V-16V, the waveform is consistent with
standard 12V; when the waveform program is divided into 16V-32V, the wave-
form is consistent with the standard 24V waveform. The waveform diagram is
shown below.
Voltage (V)
8V
12V
24V
Copyright © Itech Electronic Co., Ltd.
Current(A)
Width(mS)
60
50
60
2000
60
T
Power Supply Function
Slope(mS)
10
5
10
68
