Kyle Form 5/Triple-Single Microprocessor-Based Recloser Control Installation and Operation Instructions
AØ VOLTAGE
BØ VOLTAGE
CØ VOLTAGE
These red voltage LEDs illuminate when the control
detects the presence of voltage on the respective bush-
ings as connected to TB1. Refer to the Customer Con-
nections for AC Power section in these instructions to
determine the appropriate power connections.
1Ø TRIP - 1Ø LOCKOUT
1Ø TRIP - 3Ø LOCKOUT
3Ø TRIP - 3Ø LOCKOUT
Indicates the Triple -Single mode of operation (Modes C,
B, A).
CLOSED, OPEN, and LOCKOUT LEDs
Each phase has its own set of status LEDs. See Figure
6. The CLOSED red indicator illuminates when the con-
trol senses the recloser mechanism is in the closed posi-
tion. The OPEN green indicator illuminates when the
control senses that the recloser mechanism is in the open
position.
This green LOCKOUT indicator is illuminated when the
recloser is open and a reclosing sequence is not in
progress or when the lockout handle on the recloser
mechanism is in the down position (i.e., trip and close cir-
cuits are open).
1Ø TRIP - 1Ø LOCKOUT
1Ø TRIP - 3Ø LOCKOUT
3Ø TRIP - 3Ø LOCKOUT
CLOSED
OPEN
LOCKOUT
CLOSED
OPEN
LOCKOUT
CLOSED
OPEN
LOCKOUT
SELECT PHASES TO OPERATE
TRIP
(LOCKOUT)

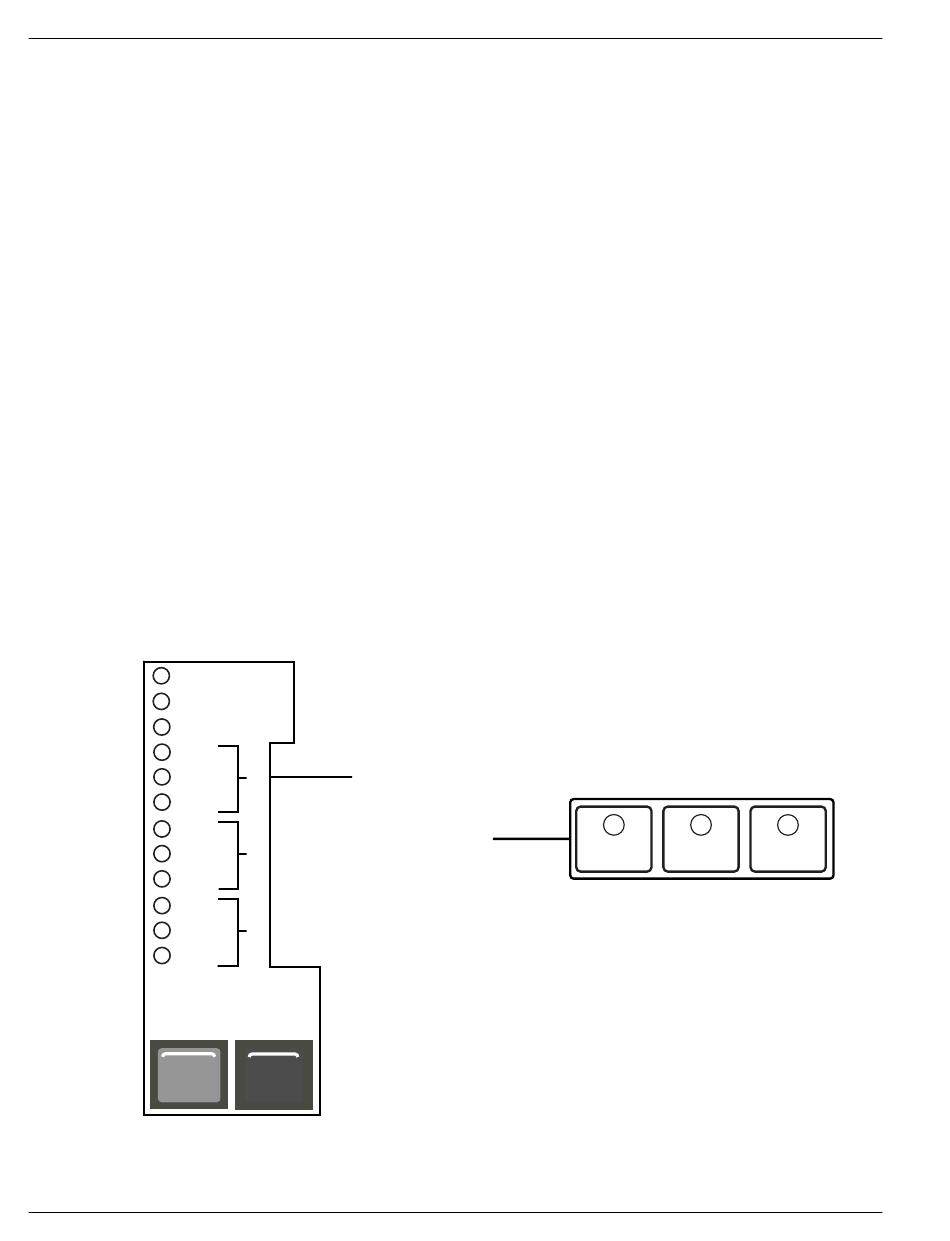

Figure 6.
Recloser status LEDs for each phase and manual
trip and close pushbuttons.
8
AØ
BØ
CØ
CLOSE
TRIP (Lockout) Pushbutton
The TRIP pushbutton (Figure 6) provides front-panel
access to trip (lockout) the recloser. When pressed, the
TRIP push-button manually opens the recloser and locks
out the control.
CLOSE Pushbutton
When pressed, the CLOSE pushbutton (Figure 6) manu-
ally returns the control to the initial or home position, clos-
ing the recloser. The control is ready for the start of a new
trip/close sequence.
Note: Pressing the CLOSE pushbutton from the Lockout posi-
tion, will initiate Cold Load Pickup (CLPU) protection, if
the feature is first enabled from the interface software
Protection Profile screen, and the COLD LOAD PICKUP
BLOCKED LED on the operator panel is not lit.
If the recloser is closed, pushing the CLOSE pushbutton
has no effect on the control. Depressing and holding the
CLOSE pushbutton does not activate the Cold Load
Pickup feature. See Cold Load Pickup in the Control
Features section of this manual.
The Form 5/Triple-Single control has a Manual Close
Delay feature that provides an interval of time from when
the CLOSE pushbutton is depressed to the time when
manual close operation is performed. See Manual Close
Delay in the Control Features section of this manual.
Phase Selection Keys
The Form 5/Triple-Single control has phase selection
keys (Figure 7) for the user to indicate only which phase
of the NOVA-TS Triple-Single recloser will operate when
the manual TRIP (LOCKOUT) and CLOSE pushbuttons
on the operator panel are pressed. When the TRIP or
CLOSE buttons are pressed, only the phases that are
selected (LED on) will trip or close. For complete opera-
tion instructions, refer to the Manual Control Operation
section of this manual.
AØ
SELECT
Figure 7.
Phase SELECT keys for operation with TRIP and
CLOSE pushbuttons.
BØ CØ
SELECT SELECT
