Area controller

Advertisement

Quick Links

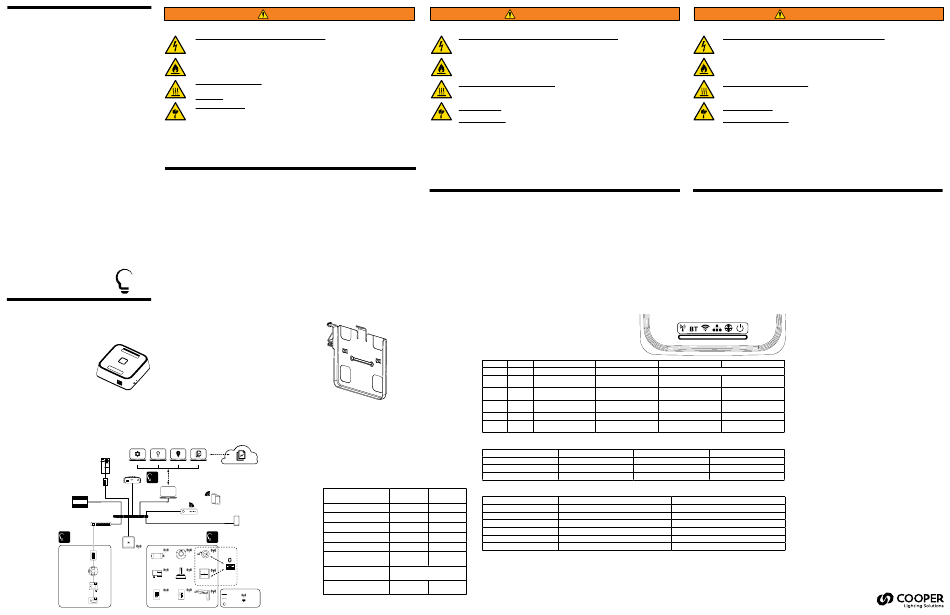

IMPORTANT: Read carefully before installing product. Retain for future reference.

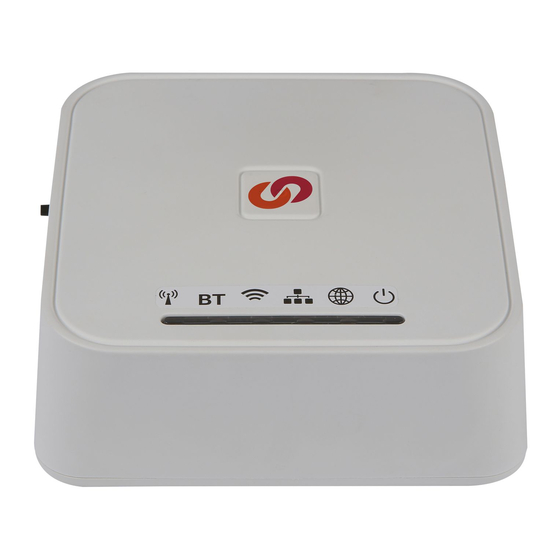

WaveLinx
Area Controller
(WAC2-POE)
Quick Start Guide
WaveLinx
DISCLAIMER OF LIABILITY: Cooper LIghting Solutions assumes no liability for damages or losses of any kind that may
Contrôleur de zone
arise from the improper, careless, or negligent installation, handling or use of this product.
NOTICE: Product may become damaged and/or unstable if not installed properly.
Note: Specifications and dimensions subject to change without notice.
(WAC2-POE)
ATTENTION Receiving Department: Note actual product description of any shortage or noticeable damage on delivery receipt. File
claim for common carrier (LTL) directly with carrier. Claims for concealed damage must be filed within 15 days of delivery. All damaged
material, complete with original packing must be retained.
Guide de démarrage rapide
NOTICE: All new wiring must be fully verified before applying power.
NOTICE: Designed for indoor installation and use only.
Warranties and Limitation of Liability
WaveLinx
Please refer to www.cooperlighting.com/global/resources/legal for our terms and conditions.
Controlador de área
(WAC2-POE)
Guía de inicio rápidoe
WaveLinx
www.cooperlighting.com
WaveLinx
SAVE THESE INSTRUCTIONS
Where to mount the WAC
Digital Lighting
Typically installed above the drop ceiling or high on the wall in the center
This installation instruction is for the WaveLinx Area Controller (WAC2-POE)
of the space it will be controlling
which enables user control of the WaveLinx system and devices via local
The WAC should be located so it has a good line-of-sight with its
Control Solutions
control or through the WaveLinx Mobile application.
communicating devices
The purpose of this document is to provide
Within 300ft (91m) of the PoE switch or building LAN connection point
At least 10ft (3m) away from the building WiFi access points
sufficient detailed instructions for installation
and basic troubleshooting.
At least 15ft (5m) away from concrete or metal structures
This document covers
Where NOT to mount the WAC
installation of the
Inside a metal enclosure or near large metal objects or walls
following products.
Inside or near large concrete walls or spaces
WAC2-POE WaveLinx Area Controller,
Do not mount inside electrical closet
POE powered
WAC2-120 WaveLinx Area Controller,
120V (includes PoE injector for power)
Note: WAC2-POE may be powered from a PoE injector. If an injector is used,
WPOE2-120 from Cooper Lighting Solutions is required. WAC2-120 includes
both the WAC2-POE and the WPOE2-120 injector.
WaveLinx System Architecture
Smart Spaces Apps
Building
Automation
System
CORE Admin
CORE Lighting
CORE Locate
WaveLinx
CORE
BACnet
Router
CORE Pro
on-premises
Workstation
enterprise
with
management
Web Browser
software
Firewall
PoE
Power
Area Hub
WaveLinx
CAT
Wired
Wireless
Area
1
2
Controller
Wallstation
3
4
Ceiling
Relay
Switchpack
Sensor
Ceiling
Sensor
Wired & Wireless
Relay Switchpack
Integrated
Same set of tools
with Contact
Industrial Fixtures
Dimming Switchpack
and features
Closure Input
or Emergency
Switchpack
Contact Closure
or Sensor Interface
Wallstation
Controlled
(AC or Battery)
Receptacle
WARNING
Risk of Fire, Electrical Shock, Cuts or other Casualty Hazards- Installation and maintenance of this
product must be performed by a qualified electrician. This product must be installed in accordance with the
applicable installation code by a person familiar with the construction and operation of the product and hazards
involved.
Before installing or performing any service, the power MUST be turned OFF at the branch circuit breaker. According to NEC
240-83(d), if the branch is used as the main switch for a fluorescent lighting circuit, the circuit breaker should be marked with
"SWD". All installations should be in compliance with the National Electric Code and all state and local codes.
Risk of Fire and Electric Shock- Before installing or performing any service, the power MUST be turned
OFF. All installations should be in compliance with the National Electric Code and all state local codes.
Risk of Burn- Disconnect power and allow product to cool before handling or servicing.
Risk of Personal Injury- Due to sharp edges, handle with care.
Failure to comply with these instructions may result in death, serious bodily injury and property damage.
Do not energize the WaveLinx Area Controller
until directed to do so by a trained
WaveLinx commissioning technician.
CORE Insights
CORE Insights
on Cloud
WaveLinx design best practices
Design Consideration
WCL devices per WAC
WaveLinx
Mobile App
User-defined areas per WAC
Access
Point
Touchscreen
Construction areas per WAC
Zones per Area
WaveLinx
PRO
Scenes per Area
WAC range
(indoor WCL devices)
Tilemount
Sensor
WAC range
RTLS Tag
(outdoor WCL devices)
Integrated
Ambient Fixtures
Device hops beyond WAC
(indoor / outdoor)
KEY
Ethernet
WaveLinx PRO
Notes:
(IEEE 802.3)
(IEEE 802.15.4)
WaveLinx CAT
WiFi
(CAT5)
1 Considering two (2) interior walls of standard construction
Integrated
(IEEE 802.11)
Bluetooth
Outdoor Fixtures
(IEEE 802.15.1)
2 Considering no LOS obstructions (walls, columns, etc.)
AVERTISSEMENT
IMPORTANT : Lire attentivement avant d'installer le luminaire. À conserver pour consultation ultérieure.
Risque d'incendie, de décharge électrique, de coupure ou d'autres risques – L'installation et l'entretien de
ce produit doivent être effectués par un électricien qualifié. Ce produit doit être installé conformément au Code
d'installation en vigueur par une personne familière avec la construction et le fonctionnement du produit, ainsi qu'avec
les risques inhérents.
Avant d'installer ou d'effectuer l'entretien, l'alimentation électrique DOIT être mise hors tension depuis le disjoncteur du circuit
de dérivation. Selon la norme 240-83(d) de la NEC, si un disjoncteur de circuit de dérivation est utilisé comme interrupteur
principal pour un circuit d'éclairage fluorescent, ce disjoncteur doit comporter la marque « SWD ». Toutes les installations
doivent être conformes au Code national de l'électricité, ainsi qu'à tous les codes nationaux et locaux.
Risque d'incendie et de décharge électrique – Assurez-vous que l'alimentation électrique est HORS
TENSION avant de commencer l'installation ou de tenter d'en faire l'entretien. Mettez l'alimentation
électrique hors tension au niveau du fusible ou du disjoncteur. Toutes les installations doivent être
conformes au Code national de l'électricité, ainsi qu'à tous les codes nationaux et locaux.
Risque de brûlure – Débranchez la source d'alimentation et laissez refroidir le luminaire avant de
procéder à son entretien ou à sa manipulation.
Risque de blessures – À cause des arêtes tranchantes, manipulez ce produit avec précaution.
La désobéissance aux instructions suivantes représente un risque de blessures (y compris la mort) et de
dommages matériels.
EXONÉRATION DE RESPONSABILITÉ : Cooper LIghting Solutions n'assume aucune responsabilité pour les dommages
ou pertes de quelque nature que ce soit pouvant découler d'une installation, d'une manipulation ou d'une utilisation
inappropriée, imprudente ou négligente de ce produit.
AVIS : Ce produit peut s'endommager ou devenir instable s'il n'est pas installé correctement.
Remarque : Les caractéristiques techniques et les dimensions peuvent changer sans préavis.
ATTENTION Service de la réception : Veuillez fournir une description de tout élément manquant ou de tout dommage constaté au
bordereau de réception. Soumettez une réclamation de transporteur public (chargement partiel) directement auprès du transporteur. Les
demandes pour les dommages cachés doivent être présentées dans les 15 jours suivants la livraison. Tout matériel endommagé doit être
conservé avec tout l'emballage d'origine.
AVIS: Il faut entièrement vérifier tous les nouveaux câblages avant la mise sous tension.
AVIS : Produit conçu uniquement pour une installation et un usage à l'intérieur.
Garanties et limitation de responsabilité
Veuillez consulter le site www.cooperlighting.com/global/resources/legal pour obtenir les conditions générales.
WaveLinx Area Controller LED Indicators
The LED indicators can be used for diagnostics and troubleshooting
diagnostics of the WaveLinx Area Controller.
The table below gives you more information.
Mounting bracket
installation
LED Color
On
Use #6 screws (not included)
Power
Blue
WAC is powered and running
appropriate for the installation
Connection to OpenADR
WAN
Green
or 3rd party
Connected to building LAN
LAN
Green
and received IP address
Connected to building LAN
WiFi
Blue
and received IP address
PAN
Blue
Future functionality
STOP!
802.15.4
Blue
WaveLinx PRO network is formed
Wireless Transmitter Specification
Radio Protocol Used
802.11 (Wi-Fi)
2412 to 2462
802.15.1
2402 to 2480
802.15.4
2405 to 2480
Supported Modules and Frequencies: This product contains FCC ID and IC
Maximum
Best Practice
Capability
Brand Name
Raspberry PI
150
200
Module name
Wi-Fi and Bluetooth Module
Model No
3 Model B+
49
49
FCC ID
2ABCB-RPI3BP
1
1
IC
20953-RPI3P
3
16
Supported region
North America
16
16
Frequency Range
2412MHz to 2462MHz & 2402MHz to 2480MHz
150ft (45m) LOS
1
300ft (91m) LOS
2
See sensor spec sheets
4 / 10
5 / 10
IMPORTANTE: Lea atentamente antes de instalar la luminaria. Conserve estas instrucciones para tenerlas como referencia futura.
Riesgo de incendio, descarga eléctrica, cortes u otros riesgos de accidentes: la instalación y el
mantenimiento de este producto deben ser realizados por un electricista calificado. Una persona con
conocimientos sobre la construcción y el funcionamiento del producto y los riesgos implicados debe instalar este
producto de conformidad con el código de instalación aplicable.
Antes de instalar o realizar un servicio de mantenimiento, la alimentación DEBE estar desconectada en el disyuntor de
circuito de rama. De conformidad con la sección 240-83(d) del NEC (Código Eléctrico Nacional), si el ramal se utiliza
como interruptor principal para un circuito de iluminación fluorescente, el disyuntor debe tener la marca "SWD". Todas las
instalaciones deben realizarse en cumplimiento del Código Eléctrico Nacional y de todos los códigos locales y estatales.
Riesgo de incendio y descarga eléctrica: asegúrese de que el suministro eléctrico esté desconectado
antes de comenzar la instalación o intentar realizar cualquier tarea de mantenimiento. Desconecte
el suministro eléctrico en el fusible o disyuntor. Todas las instalaciones deben cumplir con el Código
Eléctrico Nacional y todos los códigos estatales y locales.
Riesgo de quemaduras: desconecte el suministro eléctrico y espere que la luminaria se enfríe antes de
manipularla o repararla.
Riesgo de lesiones personales: debido a bordes filosos, manipúlela con cuidado.
El incumplimiento de estas instrucciones puede provocar lesiones graves (incluida la muerte) y daños
a la propiedad.
RENUNCIA DE RESPONSABILIDAD: Cooper LIghting Solutions no asume ninguna responsabilidad por daños o pérdidas de ningún
tipo que puedan surgir por la instalación, manipulación o uso inadecuado, descuidado o negligente de este producto.
AVISO: La luminaria puede dañarse y/o ser inestable si no se instala correctamente.
Nota: Las especificaciones y dimensiones están sujetas a cambios sin previo aviso.
ATENCIÓN Departamento de recepción: Observe que la descripción real de la luminaria no carezca de piezas ni presente
daños notorios al momento de su entrega. Presente el reclamo directamente al transportista de carga (LTL). Los reclamos por daños ocultos deben
presentarse dentro de los 15 días posteriores a la entrega. Se debe retener todo el material dañado, completo con el embalaje original.
AVISO: Todo el nuevo cableado debe verificarse por completo antes de aplicar alimentación.
AVISO: Diseñado solo para su instalación y uso en interiores.
Garantías y Limitación de Responsabilidad
Visite www.cooperlighting.com/global/resources/legal para conocer nuestros términos y condiciones.
Off
Blink
Fast Blink
WAC has no PoE connection
For blinking LED, consult WaveLinx System Manual
Normal
Communications from 3rd party
No connection or IP address from
Communications from LAN.During
building LAN
internal webpage setup
No connection or IP address from
Communications from LAN.
When login UN/PW are reset
building LAN
During internal webpage setup
Future functionality
Future functionality
Future functionality
No WaveLinx PRO devices are
During Construction Grouping and
When WAC is set to Factory
paired
WaveLinx Communications
Defaults
Operating Frequency
Device outcome
WAC LED feedback
14.55 dBm
3.5 dBi / PCB Trace Antenna
0.40 dBm
3.5 dBi / PCB Trace Antenna
16.26 dBm
1.0 dBi / integrated Chip Antenna
Silicon labs
ZigBee Module
MGM12P32GA
QOQMGM12P3
20953-RPI3P
North America
2405MHz to 2480MHz
Cooper Lighting Solutions
1121 Highway 74 South
Peachtree City, GA 30269
Canada Sales
© 2023 Cooper Lighting Solutions
www.cooperlighting.com
5925 McLaughlin Road
All Rights Reserved
For service or technical
Mississauga, Ontario L5R 1B8
Printed in Mexico
assistance:
P: 905-501-3000
Publication No. IB503106ML
1-800-553-3879
F: 905-501-3172
September 2023
ADVERTENCIA
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Note: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
Note: The equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a commercial installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off an
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment must be installed and operated
in accordance with provided instructions and the antenna(s) used for this
transmitter must be installed to provide a separation distance of at least 20
cm from all persons.
The device integrates Wi-Fi and BLE transmitter from Raspberry PI having FCC
ID : 2ABCB-RPI3BP, IC : 20953-RPI3P and ZigBee module from Silicon labs
having FCC ID: QOQMGM12P3 and IC : 20953-RPI3P for Radio communication
,and RF modules are integrated to this host product as per module integration
rule, and FCC and IC grant consitions are not voilated, RF exposure evaluation
for co-locating the transmitter and symultaneous transmission conditions
were evaluated and found satisfactory.
ISED RSS
This device complies with Industry Canada's licence-exempt RSSs. Operation
is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may
cause undesired operation of the device.
CAN ICES-005 (B)/NMB-005(B)
Cooper LIghting Solutions is a
registered trademark.
All trademarks are property
of their respective owners.
Product availability, specifications,
and compliances are subject to
change without notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the WaveLinx WAC2-POE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cooper WaveLinx WAC2-POE

  • Page 1 La désobéissance aux instructions suivantes représente un risque de blessures (y compris la mort) et de El incumplimiento de estas instrucciones puede provocar lesiones graves (incluida la muerte) y daños DISCLAIMER OF LIABILITY: Cooper LIghting Solutions assumes no liability for damages or losses of any kind that may Contrôleur de zone dommages matériels.
  • Page 2 Ne pas installer dans un placard d’installations électriques l’immeuble; adresse IP reçue du réseau local de l’immeuble un injecteur est utilisé, le modèle WPOE2-120 de Cooper Lighting Solutions page Web interne de la connexion Ne mettez pas le WaveLinx contrôleur de zone WaveLinx est requis.
