FORM 5/TRIPLE-SINGLE UNIVERSAL DEVICE PROTECTION
The UDP function allows the Form 5/Triple-Single control
to become a switch control to provide indication of over-
current trip conditions without issuing an overcurrent trip
signal. The control is in the recloser mode when the fea-
ture is in the OFF position, and in the switch mode when
the feature is ACTIVE.
While in the switch mode, all automatic open and close
operations of the recloser (including overcurrent voltage
and frequency) are blocked. Fault targeting, metering,
alarms, and event recording functions are active.
This non-tripping fault indication state is initiated via a
operator panel pushbutton (labeled SWITCH MODE) as
shown in Figure 22, digital SCADA, or discrete SCADA.
The UDP feature has local indication at the operator panel
(LED), digital indication, and remote indication via status
contacts on the Discrete Interface (DIF) module 1.
GND TRIP
BLOCKED
COLD LOAD
PICKUP
BLOCKED
ALTERNATE
PROFILE
NO. 1
AØ
SELECT

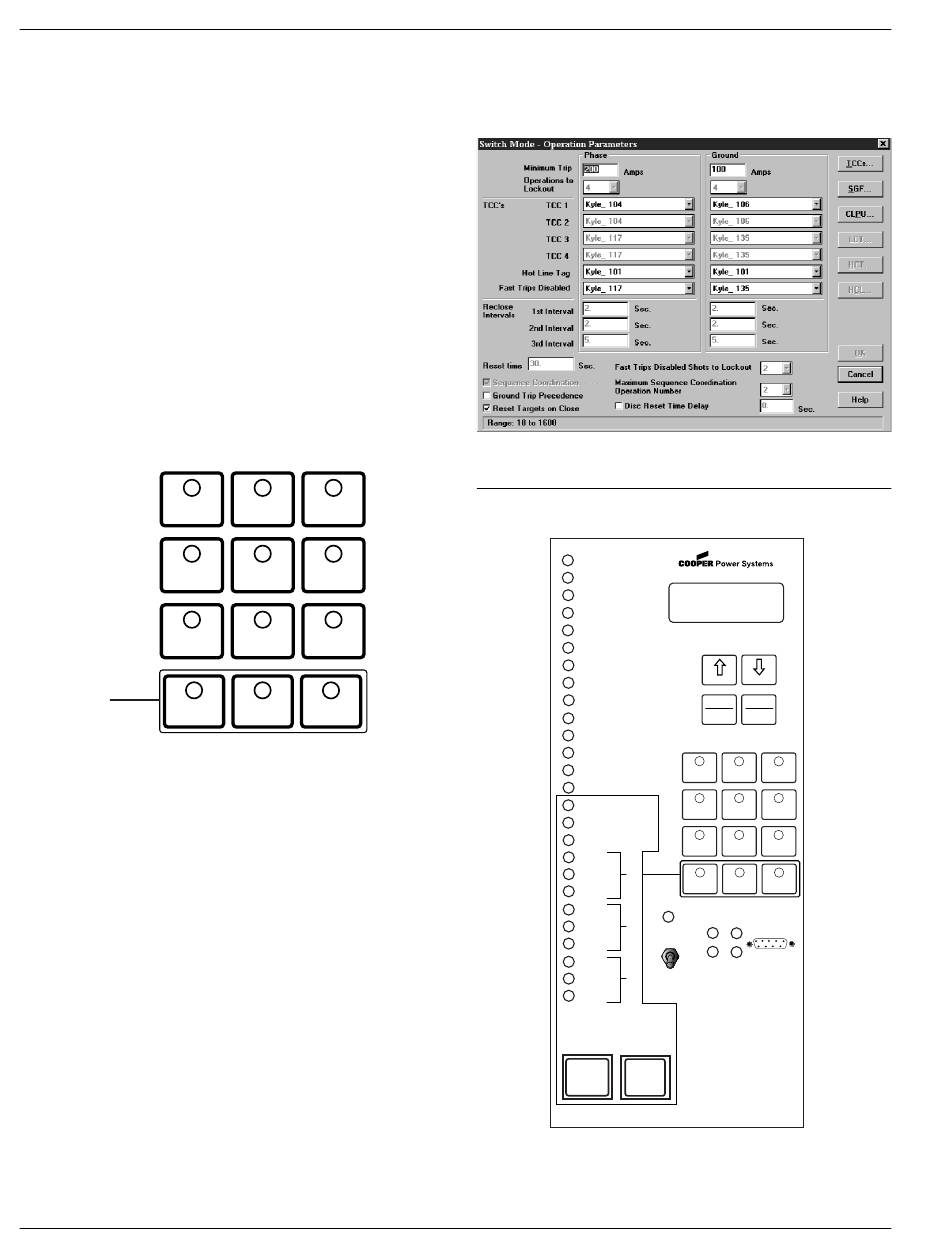

Figure 22.
Function/Indication pushbuttons for the Form
5/Triple-Single control equipped with the UDP
accessory.
22
(UDP) CONTROL
SUPERVISORY
NON
BLOCKED
RECLOSING
FAST
BATTERY
TRIPS
TEST
DISABLED
ALTERNATE
SWITCH
PROFILE
MODE
NO. 2
BØ CØ
SELECT
SELECT
Figure 23.
Interface software Switch Mode settings.
CONTROL OK
AC POWER
ABOVE MIN TRIP
CHECK BATTERY
RECLOSER MALFUNCTION
REVERSE POWER FLOW
AØ FAULT TARGET
BØ FAULT TARGET
CØ FAULT TARGET
GROUND FAULT TARGET
SENSITIVE-GROUND FAULT TARGET
AØ VOLTAGE
BØ VOLTAGE
CØ VOLTAGE
1Ø TRIP - 1Ø LOCKOUT
1Ø TRIP - 3Ø LOCKOUT
3Ø TRIP - 3Ø LOCKOUT
CLOSED
OPEN AØ
LOCKOUT
CLOSED
OPEN BØ
HOT LINE
LOCKOUT
CLOSED
CØ
OPEN
LOCKOUT
SELECT PHASES TO OPERATE
TRIP
CLOSE
(LOCKOUT)
Figure 24.
Form 5/Triple-Single UDP Operator Panel.
BACK NEXT
RESET
CHANGE
TARGETS
RESET LAMP
MAX CURRENT
TEST
GND TRIP NON
SUPERVISORY
RECLOSING
BLOCKED BLOCKED
COLD LOAD
FAST
BATTERY
PICK UP TRIPS
TEST
BLOCKED
DISABLED
ALTERNATE ALTERNATE SWITCH
PROFILE PROFILE MODE
NO. 1 NO. 2
AØ BØ CØ
SELECT SELECT SELECT
TX 3 TX 2
TAG
ON
RS232
RX 3 RX 2
OFF
®
KYLE
FORM 5/TRIPLE-SINGLE UDP
RECLOSER CONTROL
