Mounting the Control

Mount the Form 5/Triple-Single recloser control in a con-
venient, accessible location. Mounting dimensions are
provided in Figure 29.
For pole-mounted installation, a hole and keyway in the
control mounting bracket accommodates a 5/8" bolt.
20 (3/4) Dia. Hole
for Locking Handle
Female Receptacle
For Control
Vent
35mm (1-7/16") Dia. Hole
For User 120Vac
Input Connection
(Cap-Plug Installed)
110mm
(4-1/4")
40mm
(1-1/2")
30mm (1-1/8") Hole
In Lifting Lug
Male Receptacle
For Control Cable
(1-1/8")
CONTROL WEIGHT

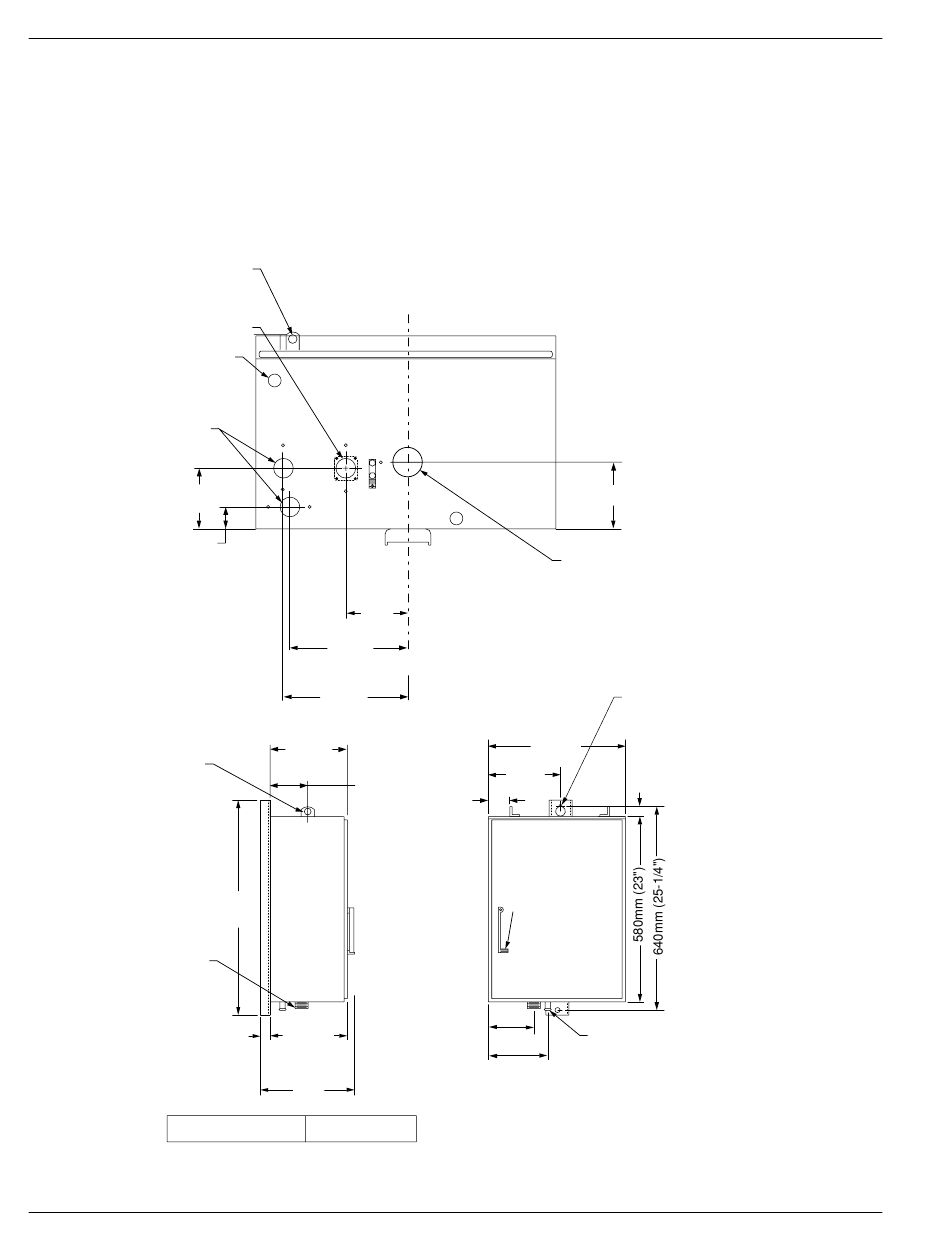

Figure 29.
Control cabinet mounting dimensions.
32
Cable
130mm
(5-1/8")
190mm
(7-3/8")
200mm
(7-7/8")
380mm
(15")
160mm
(6-3/8")
685mm
(27")
350mm
30mm
(13-13/16")
410
(16-15/64)
52 kg (115 LBS)
Limits on control cable length are determined by the max-
imum distance between the control, junction box, and
NOVA-TS Triple-Single recloser:
• Up to 312 m (95* ft) for NOVA-TS Triple-Single
recloser.
* This length is based on standard control cables. Consult
your Cooper Power Systems representative if longer
cable lengths are required.
C L
120mm (4-3/4")
45mm (1-3/4") Dia. Hole
For Automation Accessory
(Cap-Plug Installed)
C L
480mm
(19")
240mm
(9-1/2")
76mm
(3")
16 (5/8) Dia. Hole
for User-Provided Lock
110mm
(4-3/8")
165mm
(6-1/2")
Mtg Hole For
15mm (5/8") Max
Bolt Dia.*
* USER-PROVIDED HARDWARE
40mm (1-1/2")
Grounding Terminal
One Internal and
One External
Use No. 14 To No. 4
Stranded Wire
