Kyle Form 5/Triple-Single Microprocessor-Based Recloser Control Installation and Operation Instructions
*28Vdc (nominal)
supplied by
DIF module for
whetting voltage.
Discrete Interface
(DIF) Module 1
SUPERVISORY PHASE C CLOSE
SUPERVISORY PHASE B CLOSE
SUPERVISORY PHASE A CLOSE
SUPERVISORY PHASE C TRIP AND LOCKOUT
SUPERVISORY PHASE B TRIP AND LOCKOUT
SUPERVISORY PHASE A TRIP AND LOCKOUT
SUPERVISORY ALL PHASED CLOSE
SUPERVISORY ALL PHASES TRIP AND LOCKOUT
SUPERVISORY BATTERY TEST
SUPERVISORY NON-RECLOSING
SUPERVISORY GROUND TRIP BLOCKED

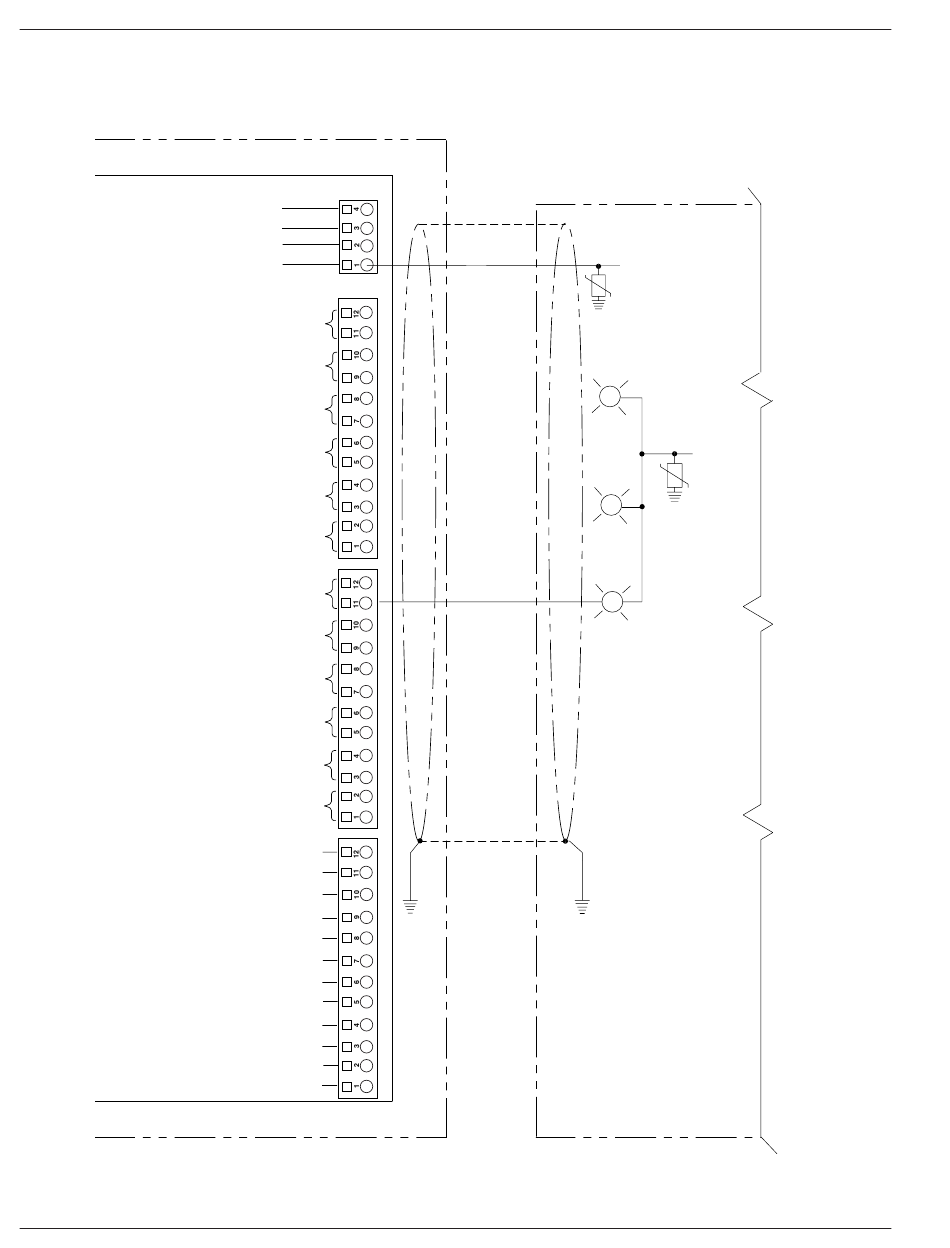

Figure 27.
Customer connections to DIF module outputs with shielding and surge protection.
24
FORM 5 CONTROL
P5
INPUT COMMON
28V (-)
28V (+)
OUTPUT COMMON
P3
SUPERVISORY BLOCK
NORMAL PROFILE
HOT LINE TAG
BATTERY TEST
NON-RECLOSING
GROUND TRIP BLOCK
P2
PHASE C CLOSED
PHASE B CLOSED
PHASE A CLOSED
PHASE C LOCKOUT
PHASE B LOCKOUT
PHASE A LOCKOUT
P4
REMOTE HOT LINE TAG
Remote Terminal Unit (RTU)
COMMON*
R
G
R
Not All Remote
Connections
Shown
INPUT
VOLTAGE
