Installation Instructions
Model # SC-UN-FT

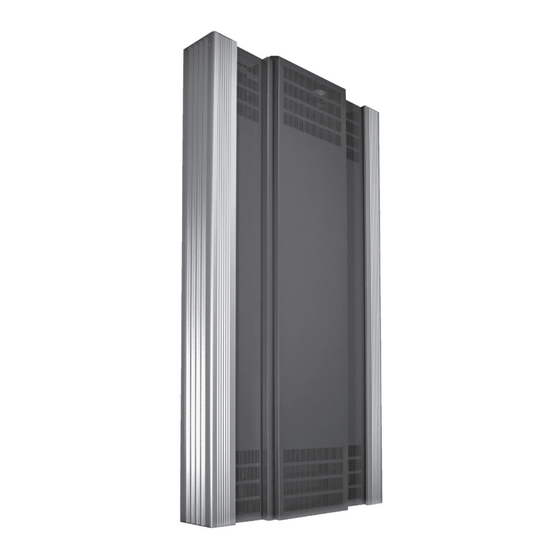

Universal Source Controller - Feed Through
Risk of Fire, Electrical Shock, Cuts or other Casualty Hazards- Installation and maintenance of this product must be
performed by a qualified electrician. This product must be installed in accordance with the applicable installation code
by a person familiar with the construction and operation of the product and hazards involved. For continued protection
against shock hazard replace all covers and guards after field wiring is completed.
Risk of Fire and Electric Shock- Before installing or performing any service, the power MUST be turned OFF.
All installations should be in compliance with the National Electric Code and all state and local codes.
Risk of Burn- Disconnect power and allow product to cool before handling or servicing.
Risk of Personal Injury- Due to sharp edges, handle with care.
Failure to comply with these instructions may result in death, serious bodily injury and property damage.
DISCLAIMER OF LIABILITY: Cooper Lighting Solutions assumes no liability for damages or losses of any kind that may arise
from the improper, careless, or negligent installation, handling or use of this product.
IMPORTANT: Read carefully before installing product. Retain for future reference.
NOTICE: Product may become damaged and/or unstable if not installed properly.
Note: Specifications and dimensions subject to change without notice.
ATTENTION Receiving Department: Note actual product description of any shortage or noticeable damage on delivery receipt.
File claim for common carrier (LTL) directly with carrier. Claims for concealed damage must be filed within 15 days of delivery.
All damaged material, complete with original packing must be retained.
NOTICE: All new wiring must be fully verified before applying power.
NOTICE: Designed for indoor installation and use only. Dry location rated.
Please Read This First
The Universal Source Controllers are designed, built and tested to strict safety regulations. By following the steps listed below and elsewhere within this
guide, you can ensure safe installation and operation of these controller units.
• The Universal Source Controllers must be installed only by a qualified electrician
• The installation must comply with the appropriate electrical codes and regulations in force in your area
• The Universal Source Controllers are designed for indoor installation and use only. The units can, however, be used to control appropriately certified
exterior lighting fixtures
• Ensure that all wiring used conforms fully to local specifications and is sufficiently rated for the installation
• All new wiring must be fully verified before applying power
• The high voltage supply should be fed to the Universal Source Controller via an external isolation breaker with sufficient capacity for the planned
installation
• All Universal Source Controllers exceed the weight limit for one person lifting - always use at least two people when lifting and mounting the units
• Do not mix load types within a single channel (e.g. 120V tungsten and low voltage ballast control)
• Ensure that the supply is fully isolated at an external breaker before removing the chassis covers. Test that power has been removed before starting
to handle conductors
• Ensure that high voltage and low voltage wiring remains separate
Important Points For Consideration
• The Universal Source Controllers must be mounted flush with the wall, do not recess the controller chassis
• Upper and lower raceways must not be located within 8 inches (200 mm) of the upper and lower panels of the Universal Source Controller. Use
suitable conduits and couplers to link the raceways to the controller chassis
• Allow adequate space for future maintenance of the unit. Do not install in a location that will later be difficult to access
• The Universal Source Controllers are designed to be mounted vertically
• During operation, the Universal Source Controllers will produce audible noise caused by electrical noise suppression circuitry and also the circuit
relays within the unit. The noise is a low level buzz that varies with the level of dimming and also clicks when relays are energised. Take these
matters into consideration when deciding on a suitable mounting position.
• The hinged cover must be unscrewed and removed from the front cover when the Universal Source Controller operates at full load in a high ambient
environment
WARNING
WaveLinx Wired
9850-000234-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WaveLinx Wired and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cooper WaveLinx Wired

  • Page 1 Failure to comply with these instructions may result in death, serious bodily injury and property damage. DISCLAIMER OF LIABILITY: Cooper Lighting Solutions assumes no liability for damages or losses of any kind that may arise from the improper, careless, or negligent installation, handling or use of this product.
  • Page 2: Table Of Contents

    WaveLinx Wired Universal Source Controller - Feed Thru Contents Description Page Introduction ............3 Welcome .
  • Page 3: Introduction

    Three overall cabinet sizes are available as shown on this and the following pages. Welcome 6 Circuit Cabinet The WaveLinx Wired Universal Source Controller range from Cooper Lighting Solutions has been designed to provide Weight maximum flexibility in both installation and operation.
  • Page 4 WaveLinx Wired Universal Source Controller - Feed Thru 12 Circuit Cabinet 24 Circuit Cabinet Weight Weight Packed: 160 lbs (72 Kg) Packed (24): 220 lbs (100 Kg) Unpacked: 132 lbs (60 Kg) Unpacked (24): 200 lbs (90 Kg) 9.78 in.
  • Page 5: Specifications

    WaveLinx Wired Universal Source Controller - Feed Thru Safety Specifications The numerous models within the Universal Source Controller Please Read This First range share the following key specifications. Information The Universal Source Controllers are designed, built and specific to each cabinet model are provided elsewhere tested to strict safety regulations.
  • Page 6: Ambient Atmosphere Requirements

    WaveLinx Wired Universal Source Controller - Feed Thru Mounting Ambient Atmosphere Requirements Temperature F to 104 F (0 C to +40 Location and Spacing Humidity 0 to 95% non-condensing The Universal Source Controller models are all fully convection cooled, therefore it is vitally important to ensure...
  • Page 7: Mounting Holes

    WaveLinx Wired Universal Source Controller - Feed Thru Mounting Holes Ensure that the mounting wall is able to safely support the weight of the unit plus all wiring hardware and that it All models within the Universal Source Controller range are complies with local codes.
  • Page 8: Accessing The Mounting Holes

    WaveLinx Wired Universal Source Controller - Feed Thru Supply Wiring Accessing the Mounting Holes The mounting holes are located within the rear panel of the Wiring Flow Source Controller. To access the mounting holes (and circuit wiring terminals) it is necessary to remove the front panels.
  • Page 9: Single Phase Supply

    WaveLinx Wired Universal Source Controller - Feed Thru Single Phase Supply Supply Power to the Panel The SC-UN-FT is provided with a single phase main power The main power supply terminals are spaced slightly below supply connection that supports an incoming supply of the dimmer channel supply terminals.
  • Page 10: Phase Distribution To Circuits

    WaveLinx Wired Universal Source Controller - Feed Thru Additional Wiring Detail IMPORTANT: The bypass jumper must remain in place on each channel until the commissioning process is complete. ote: Wiring terminal may face alternate direction. Connections should be made to terminal blocks on the side that is not pre-wired by the factory.
  • Page 11: Total Load Per Channel

    WaveLinx Wired Universal Source Controller - Feed Thru High Voltage Load Wiring Flows 2 Wire Fluorescent Dimmable Ballast A knockout (diameter 2.42 inches/61.5 mm) is provided (E.g. Advance Mark X™) above each load wireway within the top panel of the chassis.
  • Page 12: Low Voltage Load Wiring

    WaveLinx Wired Universal Source Controller - Feed Thru Low Voltage Load Wiring For each circuit, the low voltage control protocol to be used is selected using the configuration menu on the control Each channel can be individually configured to support any panel.
  • Page 13: Control Wiring

    WaveLinx Wired Universal Source Controller - Feed Thru Control Wiring Termination The iCAN, DMX and RS-485 are ‘daisy-chain’ protocols that all require termination on the devices located at either end Multiple Control Protocols of the chain. To ensure maximum versatility, the Universal Source...
  • Page 14: Control Panel Operation

    WaveLinx Wired Universal Source Controller - Feed Thru Control Panel Operation The main configuration procedures within the control panel are covered within the accompanying System Manual. This section provides a brief overview of some common Using the Control Panel functions.
  • Page 15: Accessing The Operation Menu

    WaveLinx Wired Universal Source Controller - Feed Thru Menu Navigation Accessing the Menus Within the control panel menu system, use the following During normal operation, the control panel screen shows buttons to navigate: only the time, date and device number ð...
  • Page 16: Setting The Time And Date
