Initial Programming Prior to
Installation
CAUTION: Equipment misoperation. Do not
connect this control to an energized recloser until
all control settings have been properly programmed
and verified. Refer to the programming information for
this control. Failure to comply can result in control and
recloser misoperation, equipment damage, and per-
sonal injury.
The control must be programmed with all necessary oper-
ating settings and parameters prior to operation with an
energized recloser.
Note: Program all protection profiles. Unused alternate pro-
files should be programmed with the same settings as
one of the applicable profiles. Default settings on
unused alternate profiles can cause unnecessary out-
ages if they are below normal system requirements.
Initial programming of the control is the responsibility of a
qualified technician or engineer familiar with control func-
tions and programming parameters required for the spe-
cific recloser installation.
The control must be programmed with the Form 5/Triple-
Single interface software.

Control Cable

The control cable is fabricated with connectors on both
ends.
Note: The control cable must be supported along its length to
prevent repeated movement due to wind or other out-
side forces which can damage the cable.

INSTALLATION PROCEDURE

G110.3
Triple-Single Control Junction
Box
The Type NOVA-TS Triple-Single recloser is connected to
the Form 5/Triple-Single recloser control at a junction box.
See Figure 28.
IMPORTANT: The triple-single recloser junction box
is mounted with all cable connections made at the bot-
tom of the box.
• In a pole-mounting application, the junction box is
mounted on the mounting frame.
• For substation applications, mount the junction box on
the frame in a location between the Type NOVA-TS
Triple-Single recloser and the Form 5/Triple-Single
control.
NOVA-TS
Pole-mounting
Junction Box
or Substation
mounting frame
AØ
(3) Triple-Single
Recloser Cables

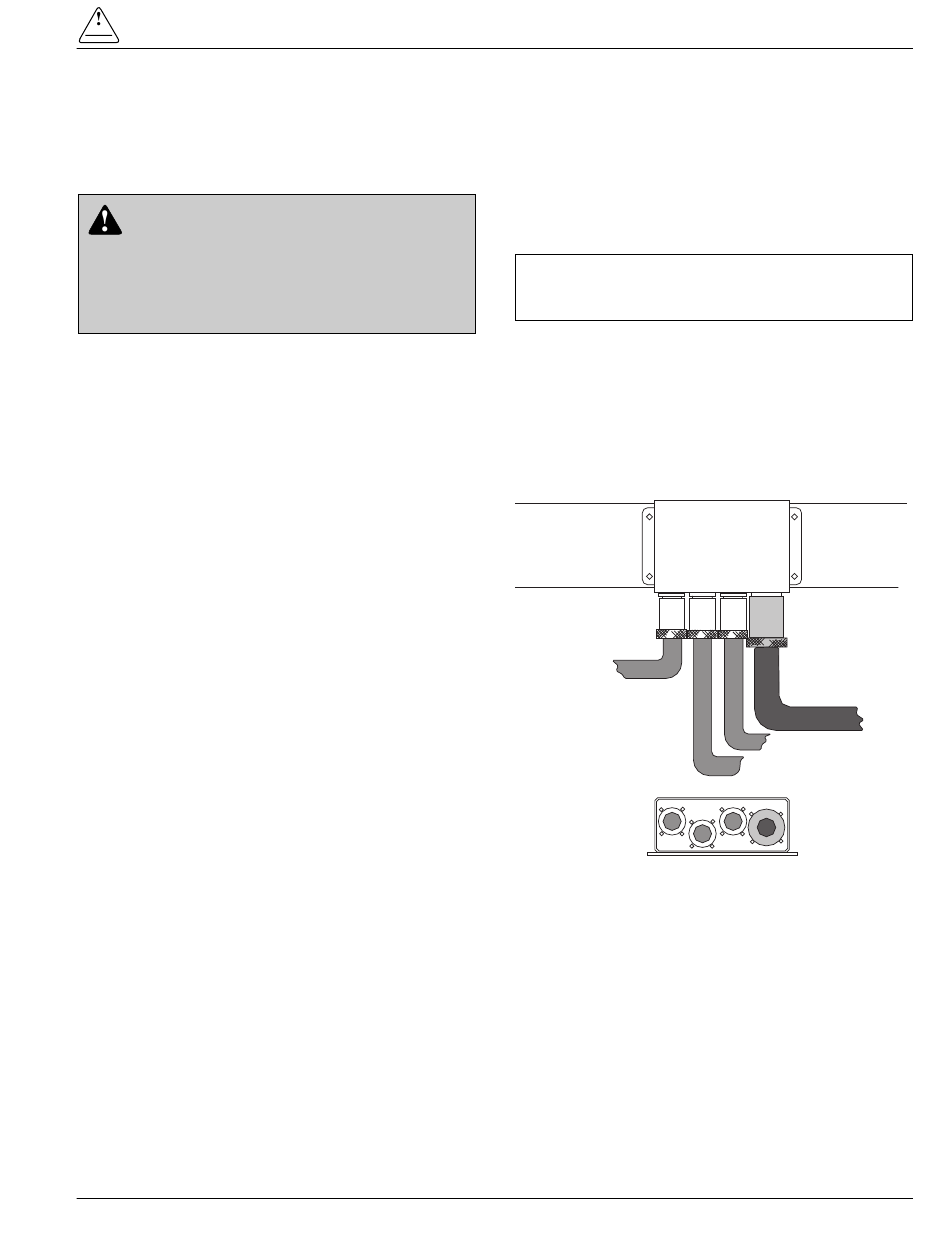

Figure 28.
NOVA-TS Triple-Single reclosers are connected to
the Form 5/Triple-Single control through a junction
box.
S280-42-3
BØ CØ
Form 5/Triple-Single
Control Cable
