Operating Guide | VACON® NX Inverters FI4-FI8
Procedure
1. To find the Active faults menu, scroll down in the main menu until the location indication M4 shows on the first line of the display.
Active faults
2. To go to the Active faults menu from the main menu, push the Menu button Right.

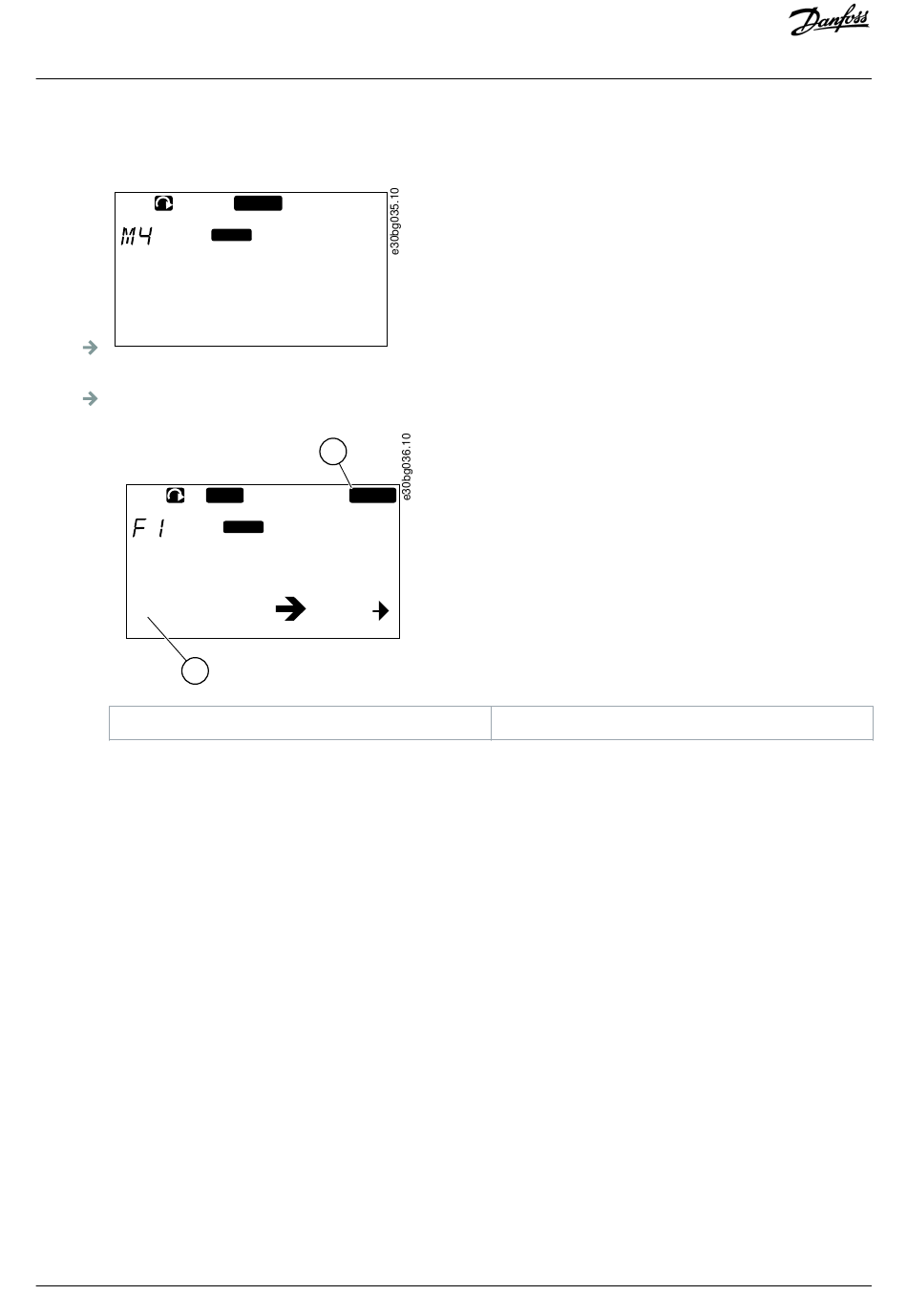

If there is a fault in the display, these symbols show:
STOP
11 Output phase
F
B
A Fault symbol
Illustration 35:

8.5.2 Examining the Fault Time Data Record

Context:
This menu shows some important data that was valid at the time of the fault. This helps to find the cause of the fault.
Procedure
1. Find the fault in Active faults menu or Fault history menu.
2. Push the Menu button Right.
3. Scroll the data T.1-T.16 with the Browser buttons.

8.5.3 Fault Time Data Record

The fault time data record shows some important data that was valid at the time of the fault. This helps to find the cause of the fault.
If real time is set on the AC drive, the data items T1 and T2 show as in column Real Time Data Record.
Danfoss A/S © 2019.07
READY
I/O term
F0
A
FAULT
I/O term
T1 T13
Fault Symbols
B Fault type symbol
AQ299433367205en-000101 / DPD00908| 77
Using the Control Panel
