Operating Guide | VACON® NX Inverters FI4-FI8
Electrical Installation
Procedure

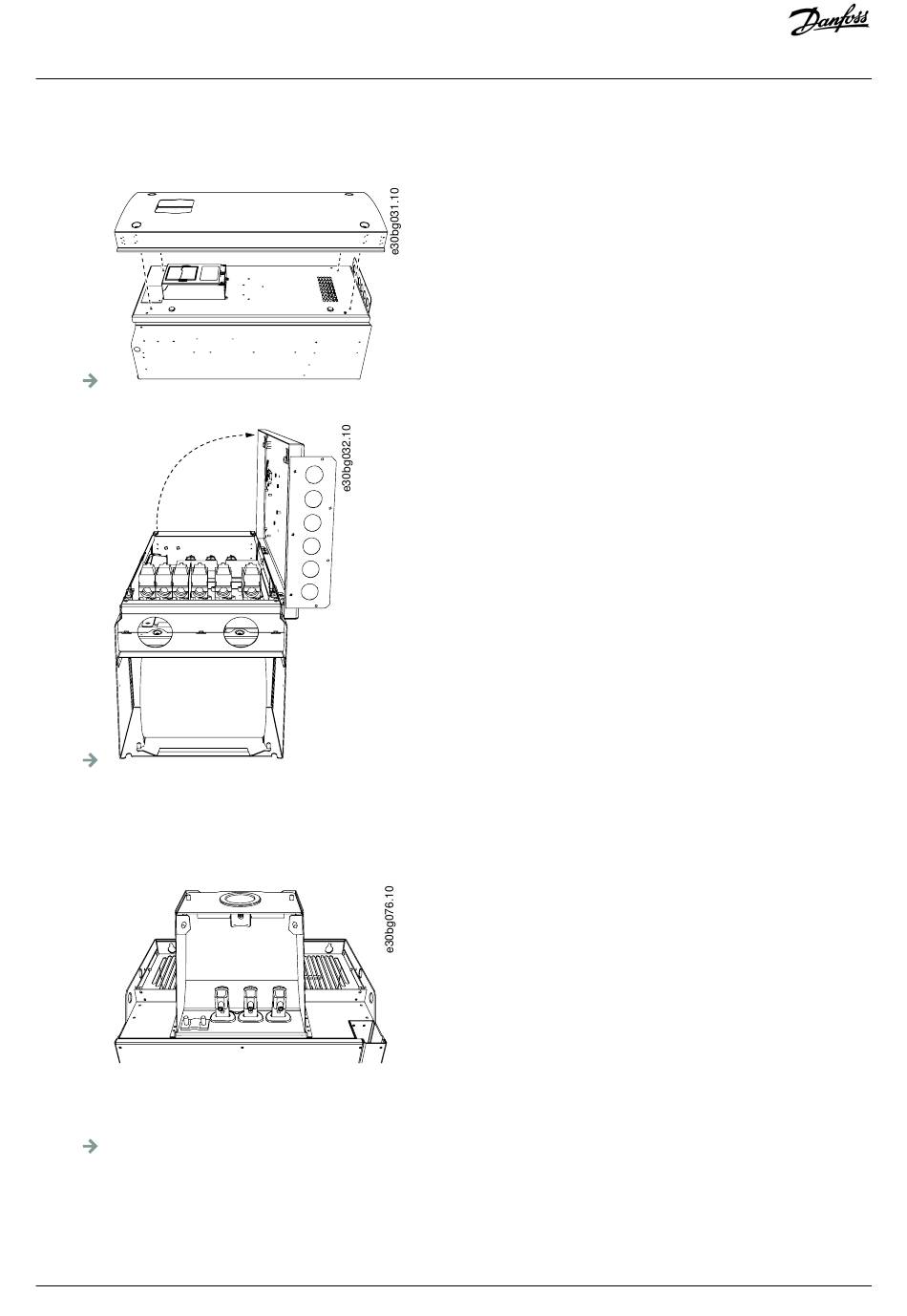

1. Open the cover of the AC drive.
2. Open the power unit cover.
3. Find the DC terminals and Brake resistor terminals on top of the AC drive.
B- B+
R+ R-
4. Locate the terminals.
Danfoss A/S © 2019.07
AQ299433367205en-000101 / DPD00908| 47
