Operating Guide | VACON® NX Inverters FI4-FI8
A
+24V
GND
A Positive logic (+24 V is the active signal) = the input is active
when the switch is closed.

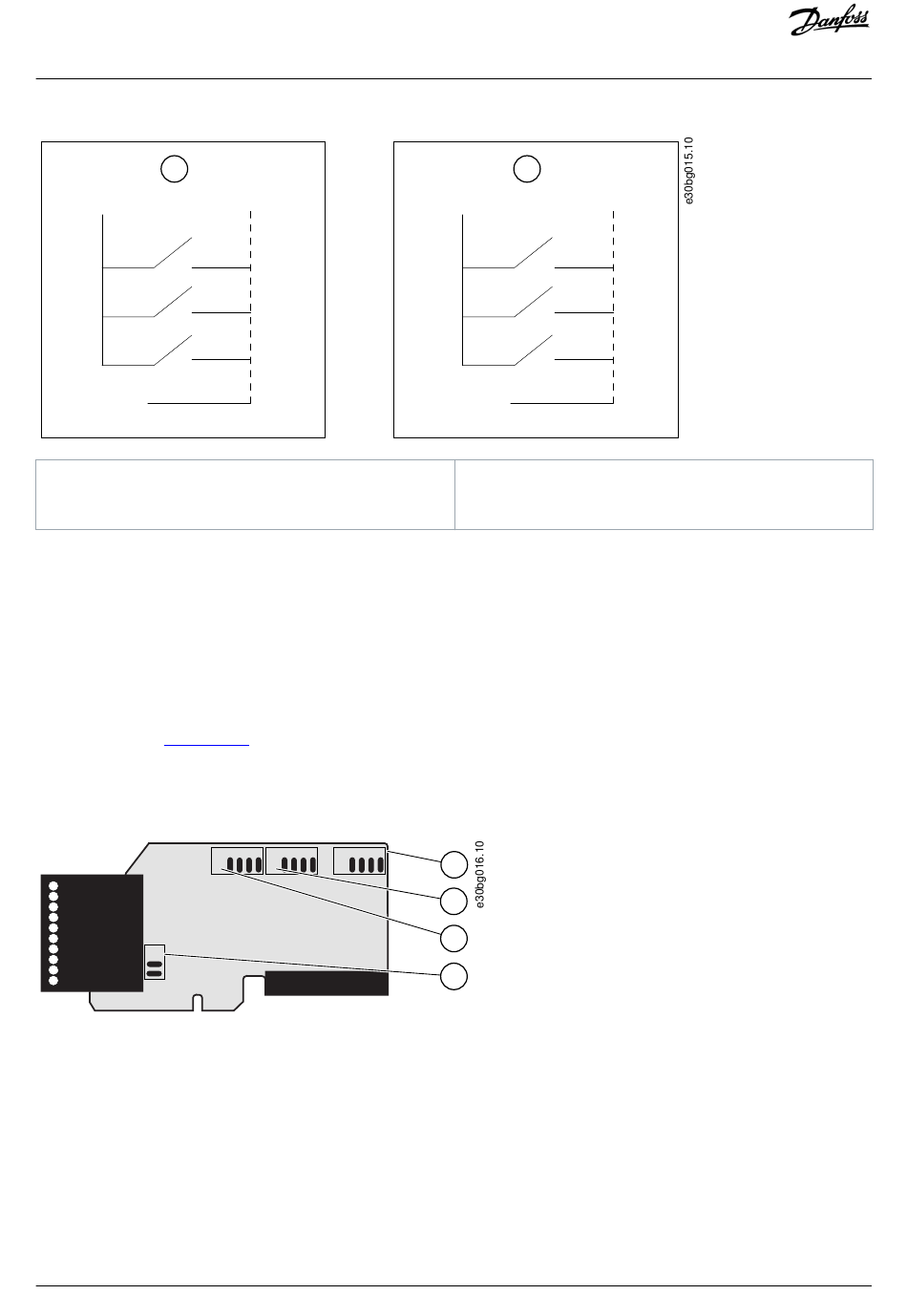

Illustration 27: Positive/Negative Logic

7.3.2.2 Jumper Selections on the OPTA1 Basic Board

The functions of the AC drive can be changed to make them better agree with local requirements. To do it, change some positions for
the jumpers on the OPTA1 board. The positions of the jumpers set the signal type of analog and digital inputs. Changing the AI/AO
signal contents requires also a change in the related board parameter in menu M7.
On the A1 basic board, there are 4 jumper blocks: X1, X2, X3, and X6. Each jumper block contains 8 pins and 2 jumpers. See the possible
jumper selections in illustration
X3
Illustration 28: Jumper Blocks on OPTA1
Danfoss A/S © 2019.07
DIN1
DIN2
DIN3
CMA
28.
A B C D A B C D A B C D
X1 X2 X6
B
GND
+24V
B Negative logic (0 V is the active signal) = the input is active
when the switch is closed. Set the jumper X3 to the position
'CMA/CMB isolated from ground'.
X6
X2
X1
X3
Control Unit
DIN1
DIN2
DIN3
CMA
AQ299433367205en-000101 / DPD00908| 63
