Reference Conditions: 23°C ± 3°C, 30 to 50% RH, DC or 50/60 Hz, battery voltage: 3V ± 10%.
MODEL
ELECTRICAL
Channels
Input
Current Probe Output
Voltage Range
Resolution
Accuracy
(50/60Hz)
Maximum Input Voltage***
Input Impedance
Sample Rate
Storage Rate
Storage Modes
Recording Length
Memory
Communication
Power Source**
Battery Life
MECHANICAL
Dimensions
Weight (with battery)
Case
Vibration
Shock
Drop
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Relative Humidity
Altitude
SAFETY
Safety Rating
Environmental
10

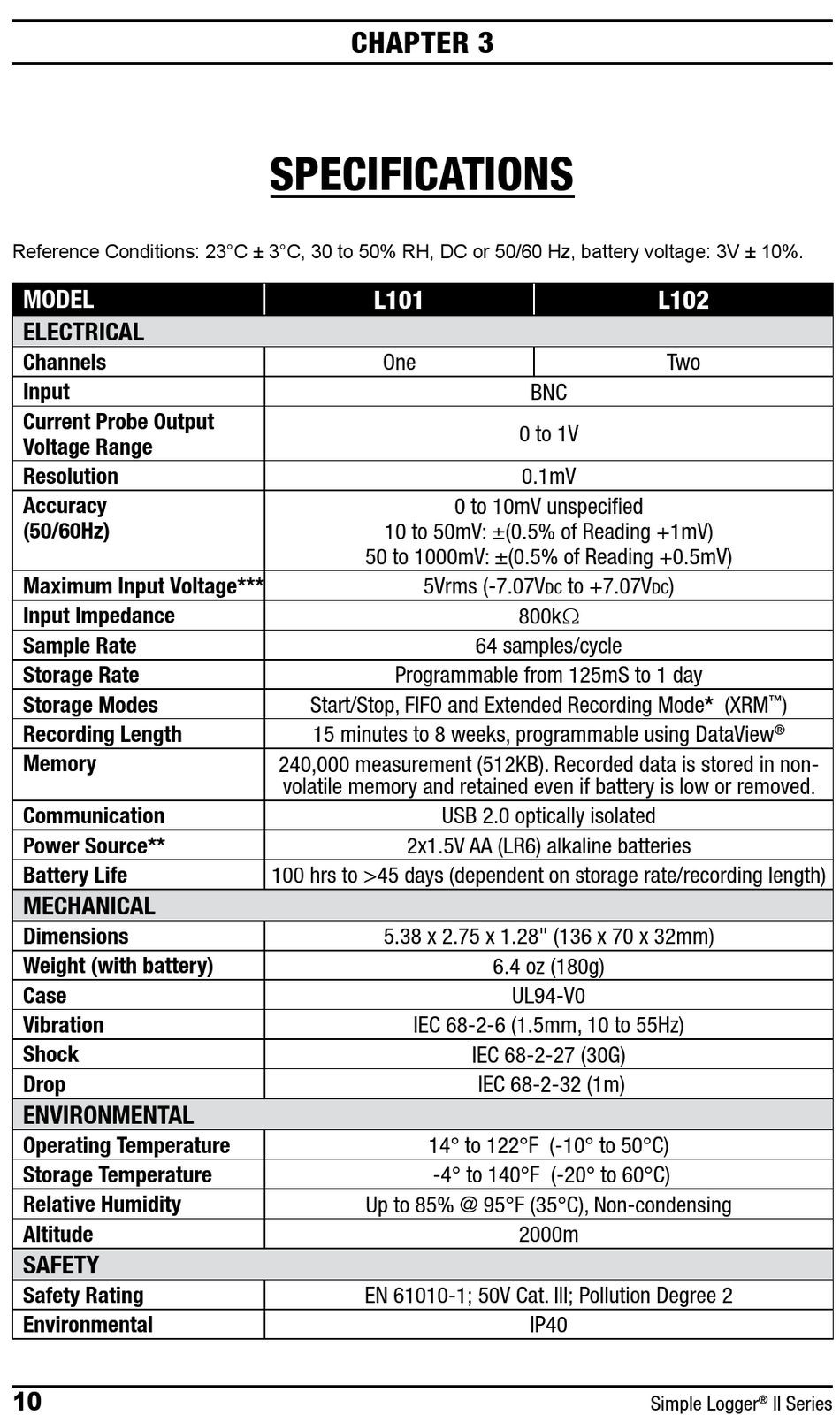

CHAPTER 3

SPECIFICATIONS

L101
One
10 to 50mV: ±(0.5% of Reading +1mV)
50 to 1000mV: ±(0.5% of Reading +0.5mV)
5Vrms (-7.07V
Programmable from 125mS to 1 day
Start/Stop, FIFO and Extended Recording Mode* (XRM
15 minutes to 8 weeks, programmable using DataView
240,000 measurement (512KB). Recorded data is stored in non-
volatile memory and retained even if battery is low or removed.
2x1.5V AA (LR6) alkaline batteries
100 hrs to >45 days (dependent on storage rate/recording length)
5.38 x 2.75 x 1.28" (136 x 70 x 32mm)
IEC 68-2-6 (1.5mm, 10 to 55Hz)
14° to 122°F (-10° to 50°C)
-4° to 140°F (-20° to 60°C)
Up to 85% @ 95°F (35°C), Non-condensing
EN 61010-1; 50V Cat. III; Pollution Degree 2
BNC
0 to 1V
0.1mV
0 to 10mV unspecified
to +7.07V
dc
800kW
64 samples/cycle
USB 2.0 optically isolated
6.4 oz (180g)
UL94-V0
IEC 68-2-27 (30G)
IEC 68-2-32 (1m)
2000m
IP40
L102
Two
)
dc
)
™
®
