2.2

Control Features

1. Input (model dependent)

L101/L102 - BNC Input Termination

L261/L111 - Two recessed 4mm safety banana jacks

L322/L432 - One 4-position removable screw-type terminal block

L562 - BNC/Two recessed 4mm safety banana jacks

L642 - Two miniature thermocouple connectors

2. Five LED Indicators

The LEDs on the logger serve two functions: Control Operation and

Status Function.

•

The control operation (when holding down the PRESS button) is

indicated with text to the left of each LED.

•

The status function (when PRESS is not being held down) associ-

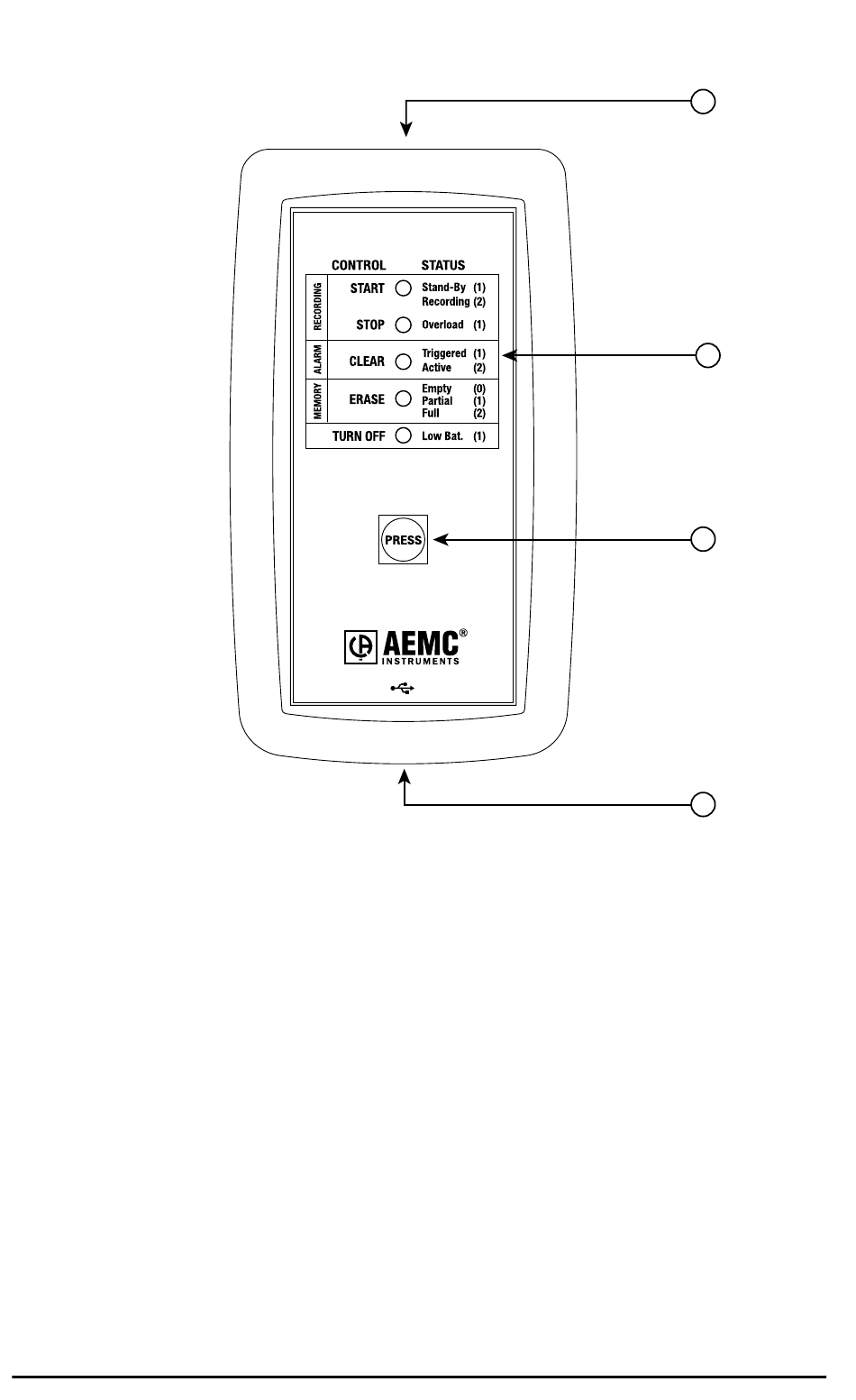

Figure 2-2. Key Components and Features

Simple Logger

II Series
