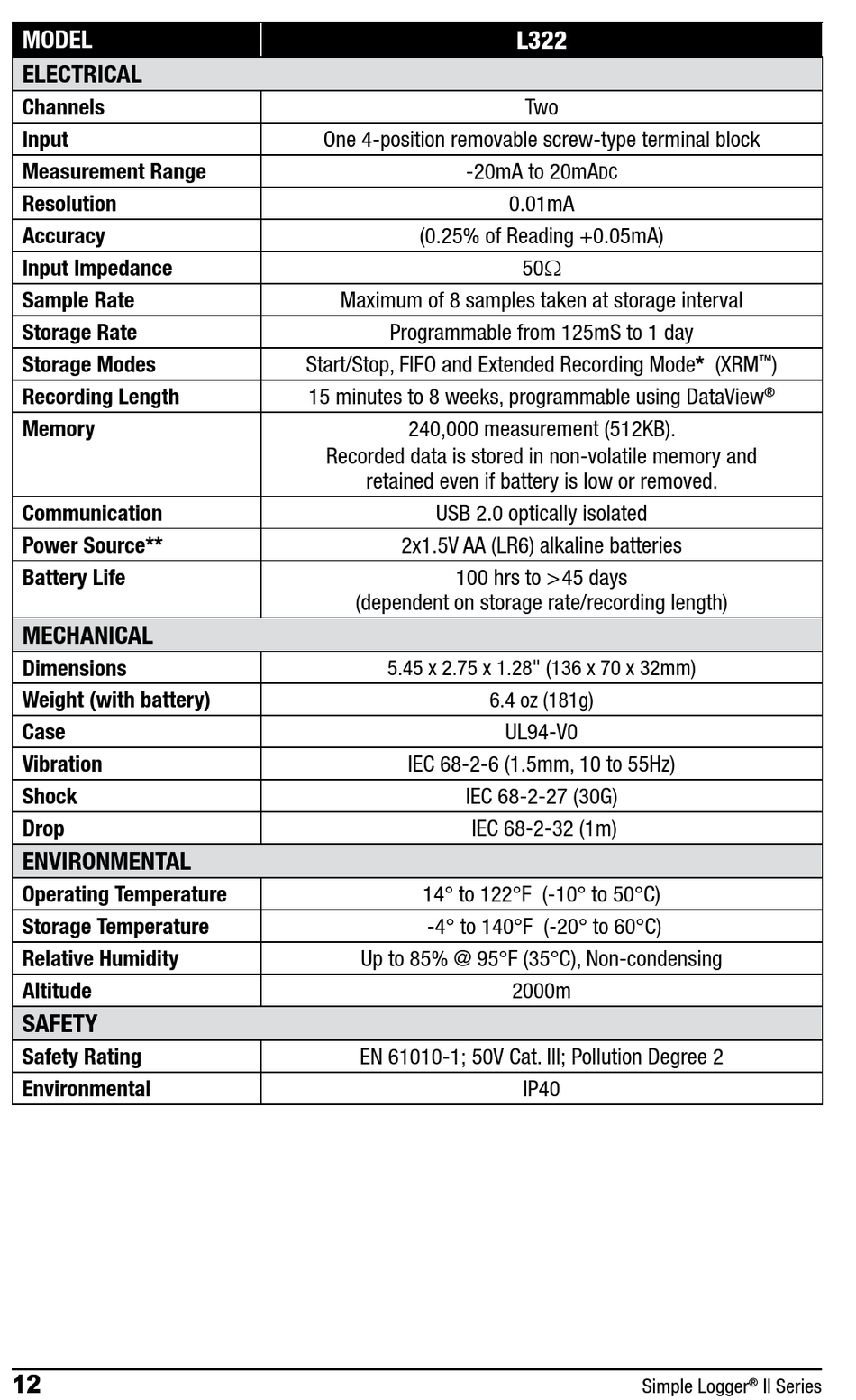

AEMC Simple Logger II Series User Manual page 14

MODEL
ELECTRICAL
Channels
Input
Measurement Range
Resolution
Accuracy
Input Impedance
Sample Rate
Storage Rate
Storage Modes
Recording Length
Memory
Communication
Power Source**
Battery Life
MECHANICAL
Dimensions
Weight (with battery)
Case
Vibration
Shock
Drop
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Relative Humidity
Altitude
SAFETY
Safety Rating
Environmental
12
One 4-position removable screw-type terminal block
-20mA to 20mA
(0.25% of Reading +0.05mA)
Maximum of 8 samples taken at storage interval
Programmable from 125mS to 1 day
Start/Stop, FIFO and Extended Recording Mode* (XRM
15 minutes to 8 weeks, programmable using DataView
240,000 measurement (512KB).
Recorded data is stored in non-volatile memory and
retained even if battery is low or removed.
USB 2.0 optically isolated
2x1.5V AA (LR6) alkaline batteries
100 hrs to >45 days
(dependent on storage rate/recording length)
5.45 x 2.75 x 1.28" (136 x 70 x 32mm)
IEC 68-2-6 (1.5mm, 10 to 55Hz)
IEC 68-2-27 (30G)
14° to 122°F (-10° to 50°C)
-4° to 140°F (-20° to 60°C)
Up to 85% @ 95°F (35°C), Non-condensing
EN 61010-1; 50V Cat. III; Pollution Degree 2
L322
Two
DC
0.01mA
50W
6.4 oz (181g)
UL94-V0
IEC 68-2-32 (1m)
2000m
IP40
)
™
®
Simple Logger II Series
®
