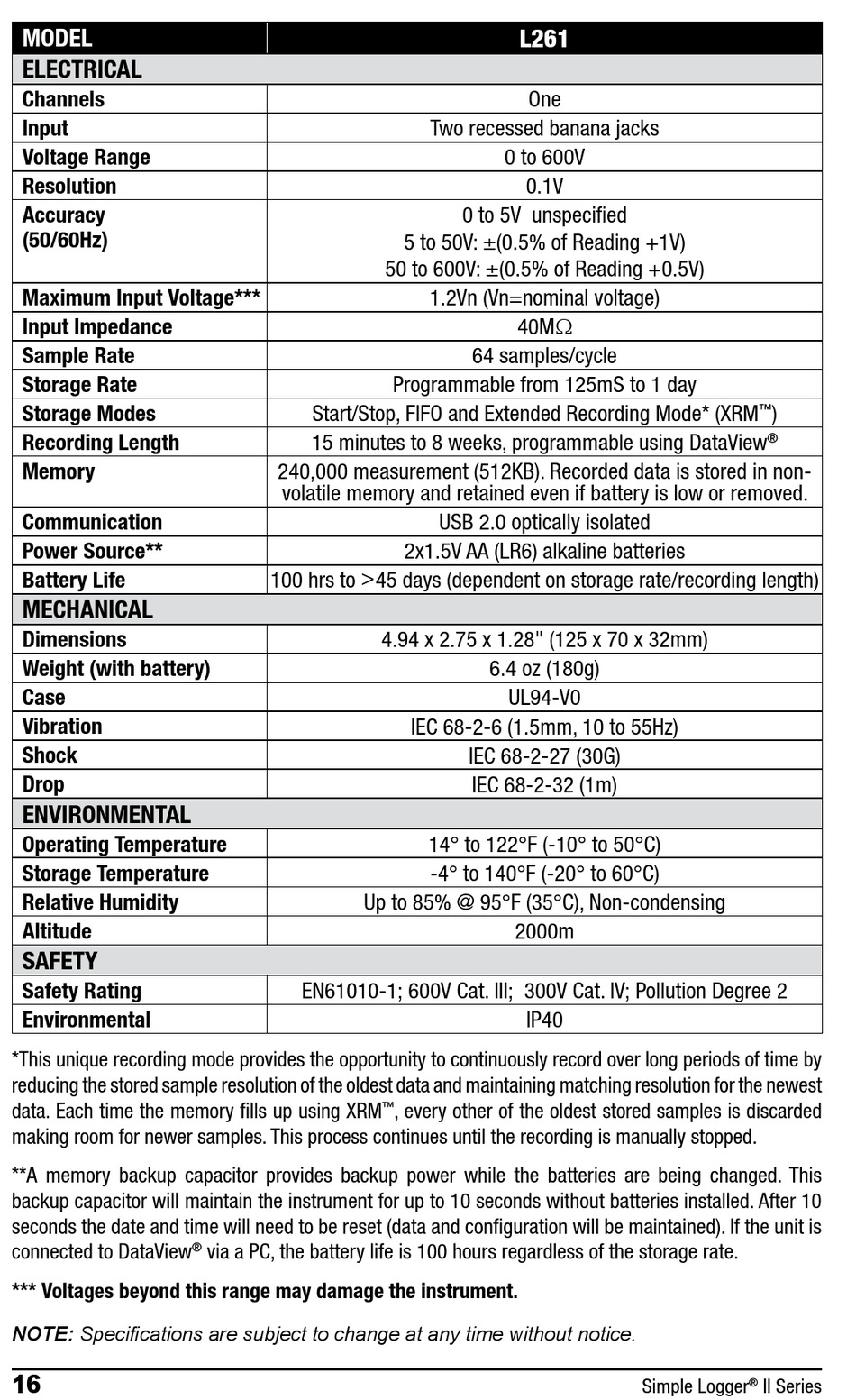

AEMC Simple Logger II Series User Manual page 18

MODEL
ELECTRICAL
Channels
Input
Voltage Range
Resolution
Accuracy
(50/60Hz)
Maximum Input Voltage***
Input Impedance
Sample Rate
Storage Rate
Storage Modes
Recording Length
Memory
Communication
Power Source**
Battery Life
MECHANICAL
Dimensions
Weight (with battery)
Case
Vibration
Shock
Drop
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Relative Humidity
Altitude
SAFETY
Safety Rating
Environmental
*This unique recording mode provides the opportunity to continuously record over long periods of time by
reducing the stored sample resolution of the oldest data and maintaining matching resolution for the newest
data. Each time the memory fills up using XRM
making room for newer samples. This process continues until the recording is manually stopped.
**A memory backup capacitor provides backup power while the batteries are being changed. This
backup capacitor will maintain the instrument for up to 10 seconds without batteries installed. After 10
seconds the date and time will need to be reset (data and configuration will be maintained). If the unit is
connected to DataView
*** Voltages beyond this range may damage the instrument.
NOTE: Specifications are subject to change at any time without notice.
16
Start/Stop, FIFO and Extended Recording Mode* (XRM
15 minutes to 8 weeks, programmable using DataView
240,000 measurement (512KB). Recorded data is stored in non-
volatile memory and retained even if battery is low or removed.
100 hrs to > 45 days (dependent on storage rate/recording length)
EN61010-1; 600V Cat. III; 300V Cat. IV; Pollution Degree 2
via a PC, the battery life is 100 hours regardless of the storage rate.
®
L261
Two recessed banana jacks
0 to 600V
0 to 5V unspecified
5 to 50V: ±(0.5% of Reading +1V)
50 to 600V: ±(0.5% of Reading +0.5V)
1.2Vn (Vn=nominal voltage)
40MW
64 samples/cycle
Programmable from 125mS to 1 day
USB 2.0 optically isolated
2x1.5V AA (LR6) alkaline batteries
4.94 x 2.75 x 1.28" (125 x 70 x 32mm)
6.4 oz (180g)
UL94-V0
IEC 68-2-6 (1.5mm, 10 to 55Hz)
IEC 68-2-27 (30G)
IEC 68-2-32 (1m)
14° to 122°F (-10° to 50°C)
-4° to 140°F (-20° to 60°C)
Up to 85% @ 95°F (35°C), Non-condensing
2000m
, every other of the oldest stored samples is discarded
™
One
0.1V
IP40
Simple Logger
)
™
®
II Series
®
