Functional Principle, Technical Data
2.2
The non-contact, single-channel measuring system of the capaNCDT 6100 installed in an aluminium housing,
consists of:
- Controller
- Sensor and
- sensor cable.
The controller consists a connecting board and a signal conditioning board which are both enclosed in the
metal housing.
The board also contains the „zero" and the „gain" potentiometers which are used for adjusting the zero point
and the gain. This allows optimization of the current measuring task.
The connecting board contains the 8-pin connector, reverse polarity protection and various protection ele-
ments for the connections which are necessary to satisfy the EMC regulations.
The output signal can only be displayed externally.

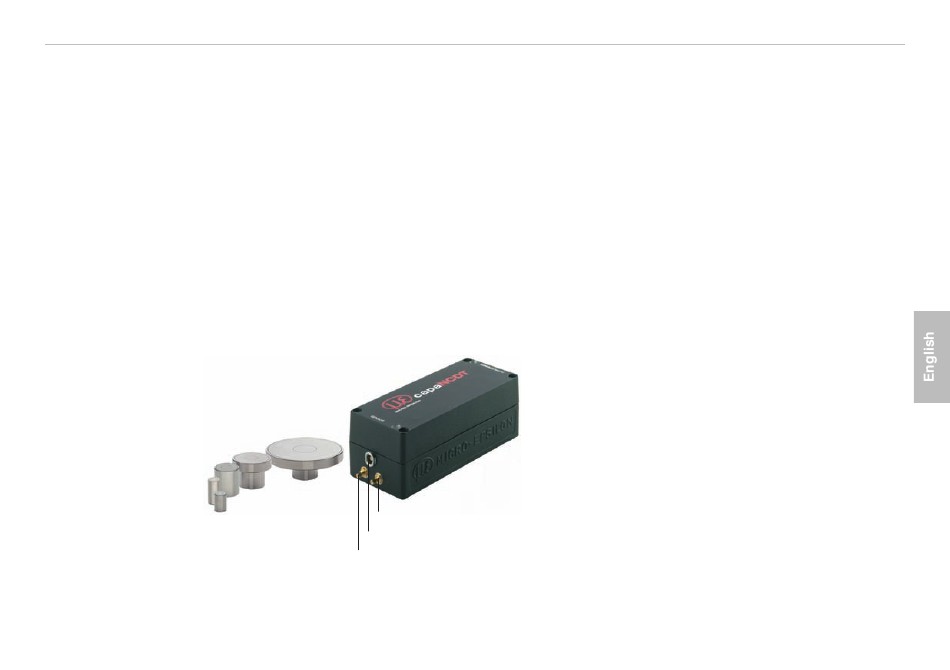

Fig. 2
capaNCDT 6100

Structure

Synchronization input
Sensor
Synchronization output
Measuring system capaNCDT 6100
Power supply,
output signal
