Installation and Assembly

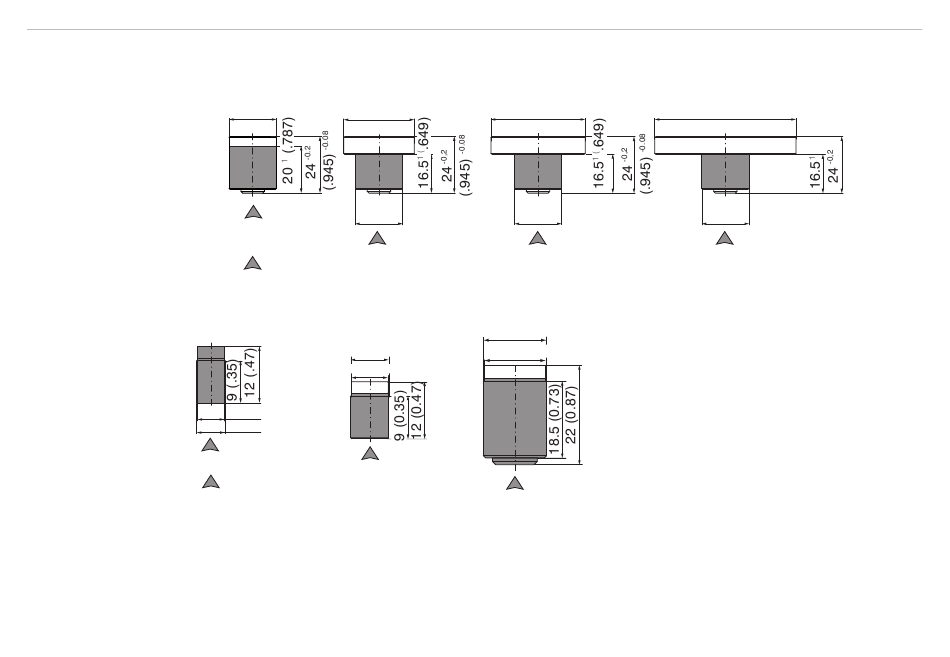

ø20h7 (.79 dia.)
CSE05
Dimensions in mm (inches), not to scale
1) Adjustment area for radial point respectively circumferential clamping
capaNCDT 6100
CS2 CS3
M=1:2 M=1:2
ø30h7 (1.18 dia.)
ø20h7 (.79 dia.)
Connector side
CSE1
ø8f7 (0.31 dia.)
ø7.7 (0.30 dia.)
ø5.7 (.22)
ø6f7
(.24 dia.)
Connector side
CS5
M=1:2 M=1:2
ø40h7 (1.58 dia.)
ø20h7 (.79 dia.)
CSE2
ø14h7 (0.55 dia.)
ø13.7 (0.54 dia.)
CS10
ø60h7 (2.36 dia.)
ø20h7 (.79 dia.)
