Health and safety
2.6

Safety devices

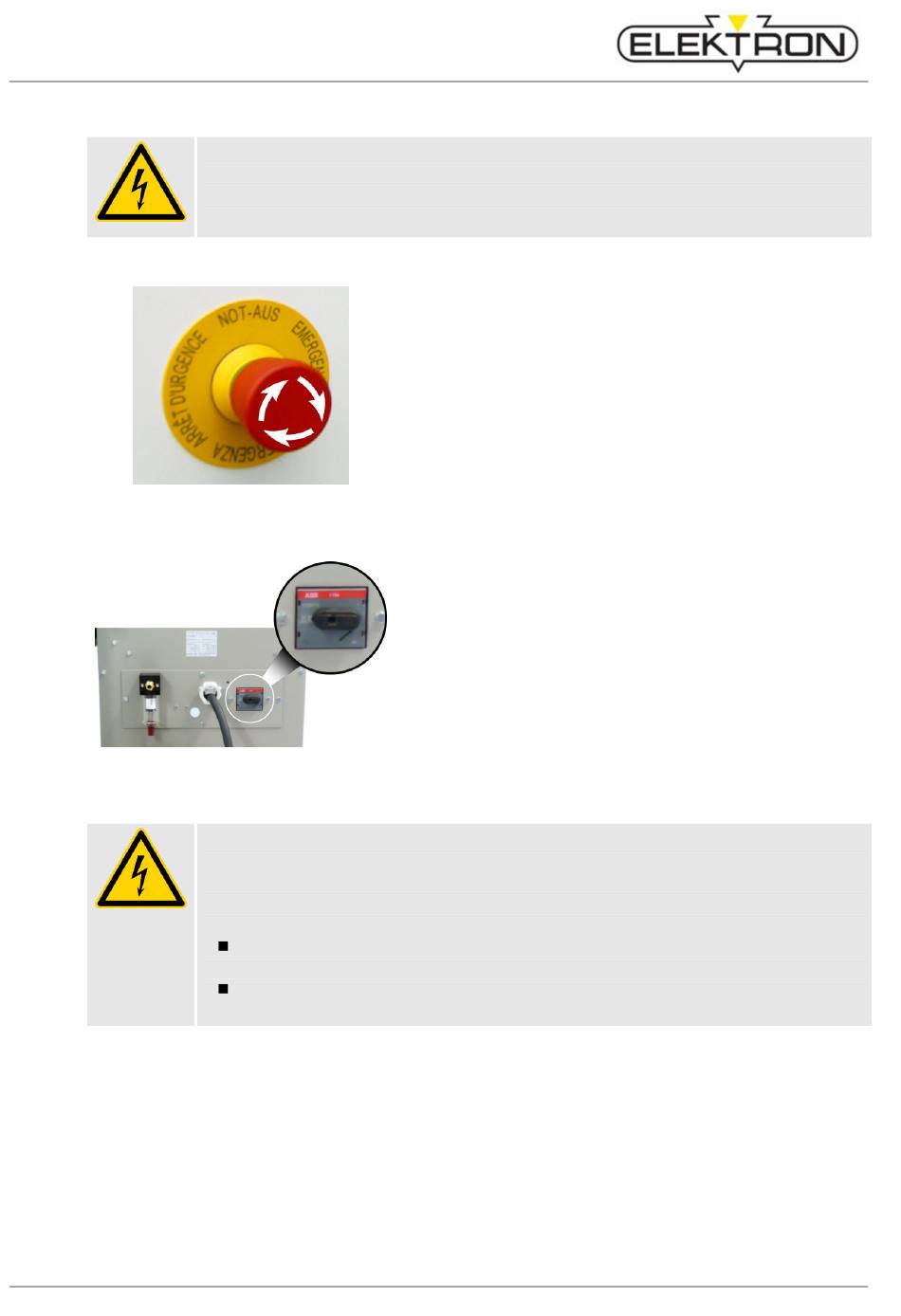

Fig. 1: Emergency stop pushbutton
Fig. 2: Power switch on the backside
18
WARNING! Danger! Due to insufficient protection against residual current!
Connection to electrical socket: the device may only be plugged into a socket with a
residual current device and an operable earthing device.
WARNING! Danger of life and limb! Equipment may still be under voltage!
The emergency stop will shut down the equipment, but will not disconnect the power
supply. To accomplish that, push the power switch on the backside of the equipment.
Even then, there may still be components inside that are still under voltage.
Therefore:
In order to disconnect this equipment from the power supply, switch off using the
power switch. Earth components, short circuit and check for residual electricity.
Do not unlock the emergency stop pushbutton before danger has been completely
removed.
Emergency stop pushbutton
Hitting the emergency stop pushbutton will shut down the
equipment immediately. After the emergency stop has been
actuated, it must be turned clockwise (cw) to unlock before
the equipment can be switched on again.
Power switch
Turning the power switch to position "0" will disconnect the
power supply immediately (which, basically, has the same
effect as an emergency stop).
