5.4

Assembling the balancer

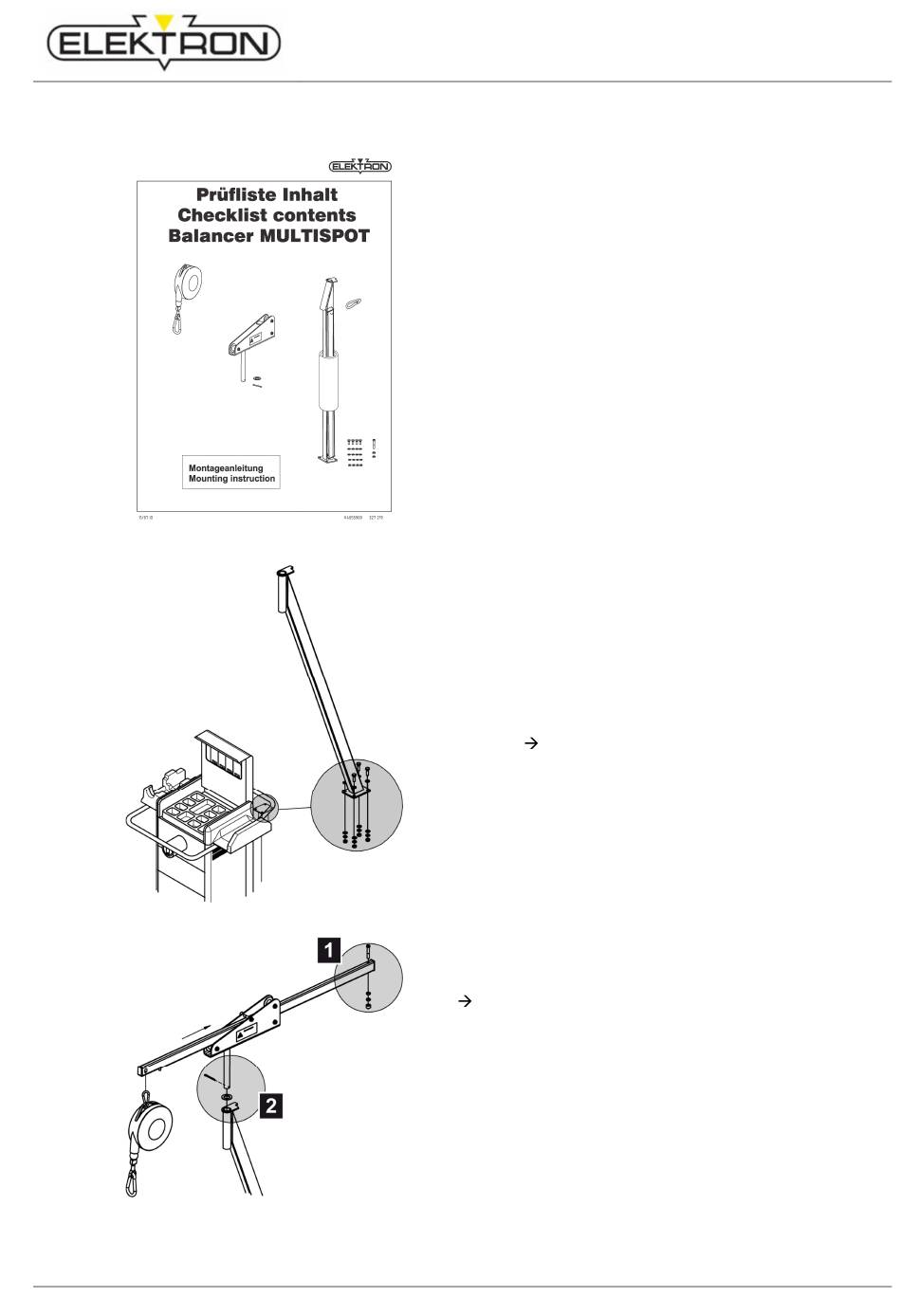

Fig. 22: Balancer checklist
Fig. 23: Vertical pipe
Fig. 24: Crossbar pipe
Resistance welder MULTISPOT MI-100control
1. Unpack the balancer.
2. Check balancer components for damage. Use the
checklist provided (Fig. 22) to check whether you have all
the parts.
— — — — Balancer
— — — — Guide rollers with locking pin and ring
— — — — Vertical pipe and crossbar pipe
— — — — Replacement carabine hook
— — — — Four M8 bolts with two nuts and washers each
— — — — Mounting instructions
3. Mount the vertical pipe using four M8 bolts
(Fig. 23, see separate operating and mounting
instructions).
4. Mount the crossbar (Fig. 24,
see separate mounting instructions).
Proceed as follows:
— — — — Mount and screw down stopper (Fig. 24/1).
— — — — Insert crossbar pipe into guiding element.
Secure with locking pin (Fig. 24/2).
— — — — Hang up spring balancer and secure (see operating
instructions for spring balancer).
Installation
33
