Resistance welder MULTISPOT MI-100control
Design and functionality
4.3.2

On the inverter control unit

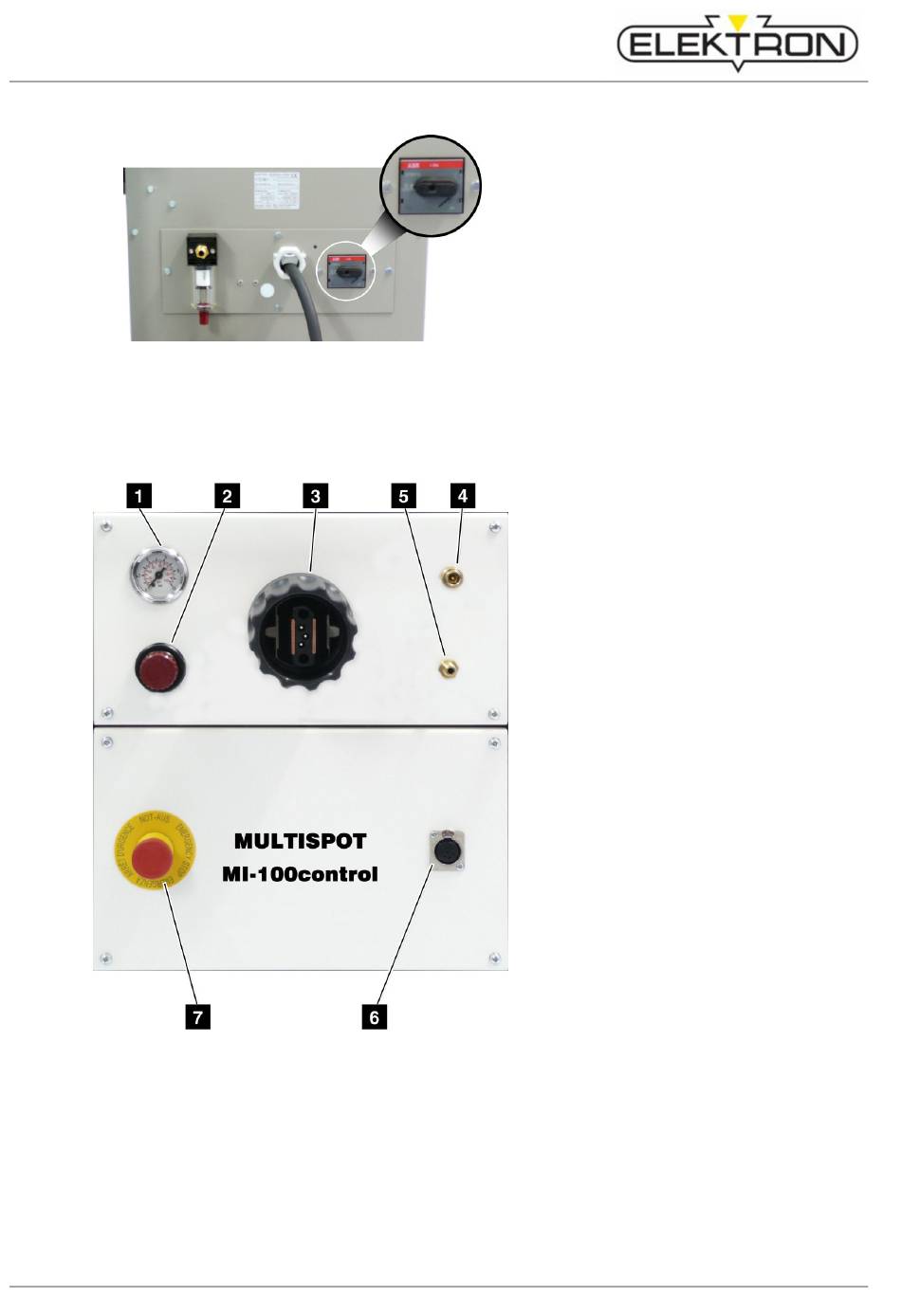

Fig. 15: Power switch (in „OFF" position)
4.4

Connections

4.4.1

Connections on the front side

Fig. 16: Connections on the front side
28
The power switch (Fig. 15) is for switching the
power supply on and off.
1 Pressure gauge
displays input pressure.
2 Pressure reducer
continuous adjustment of input pressure
3 Central connection point for weld current,
compressed air and control voltage of the
welding pliers
Coolant outlet
4
Coolant return
5
6 Connection for sensors
7 Emergency stop pushbutton
shuts down equipment immediately.
