6.7.2.5

Switching off weld rules

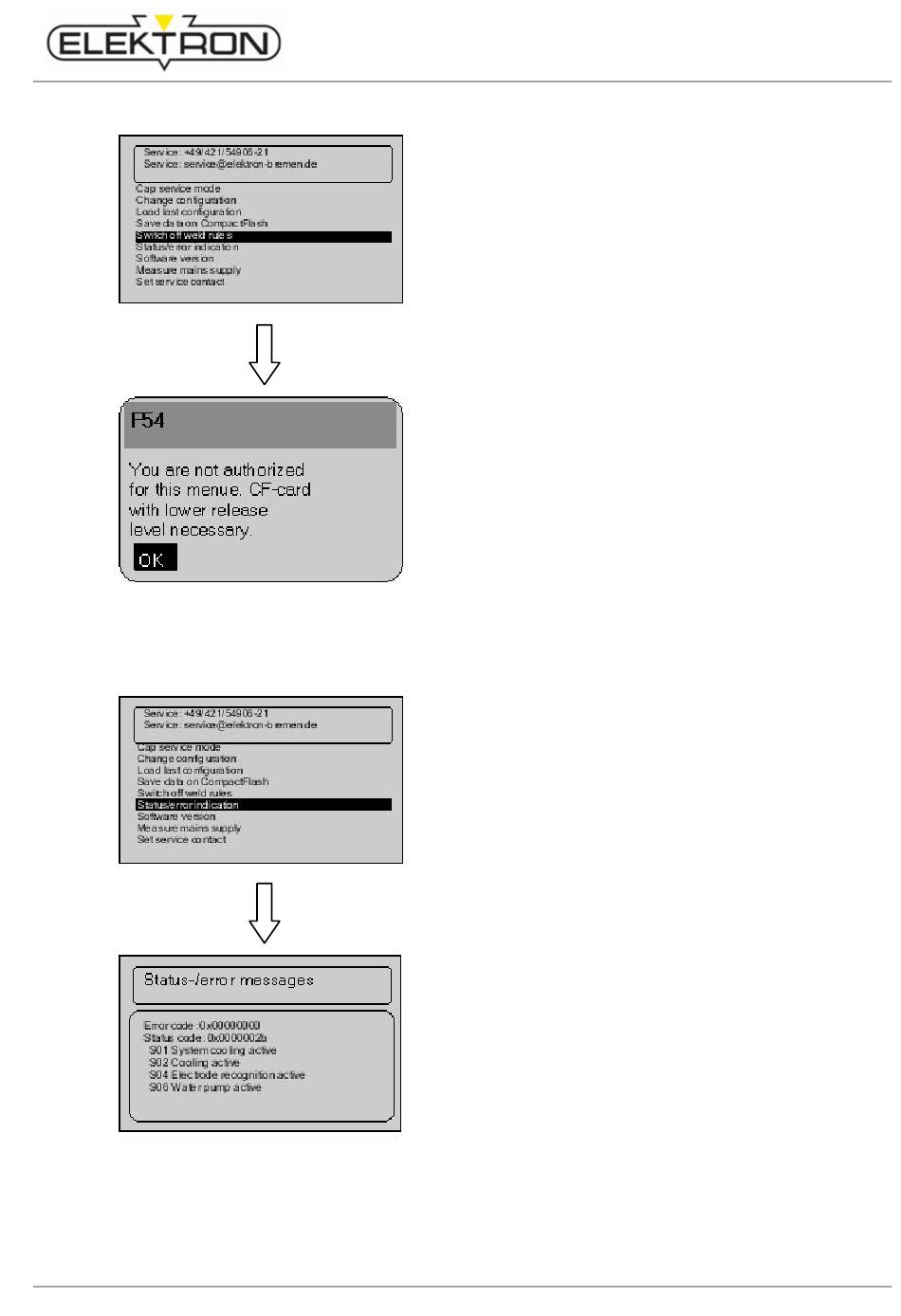

Fig. 85: Switching off weld rules
6.7.2.6

Calling up status and error messages

Fig. 86: Calling up status and error messages
Resistance welder MULTISPOT MI-100control
Use the menu item "Switch off weld rules" to switch off the
weld rules that have been pre-defined and stored in the
system.
However, you need the "Expert" CF memory card to
accomplish this.
Use the control knob to select "Switch off weld rules". Press
to confirm.
Depending on your access rights, you may receive, for
instance, the status message shown on the left.
Use the menu item "Status / error messages" to display the
current software version(s) installed on the welder.
Use the control knob to select "Status / error messages".
Press to confirm.
You will see the status and error message shown here on the
left.
