6.4.2.3

OEM programs

Keyboard
Program selectio
Free mode

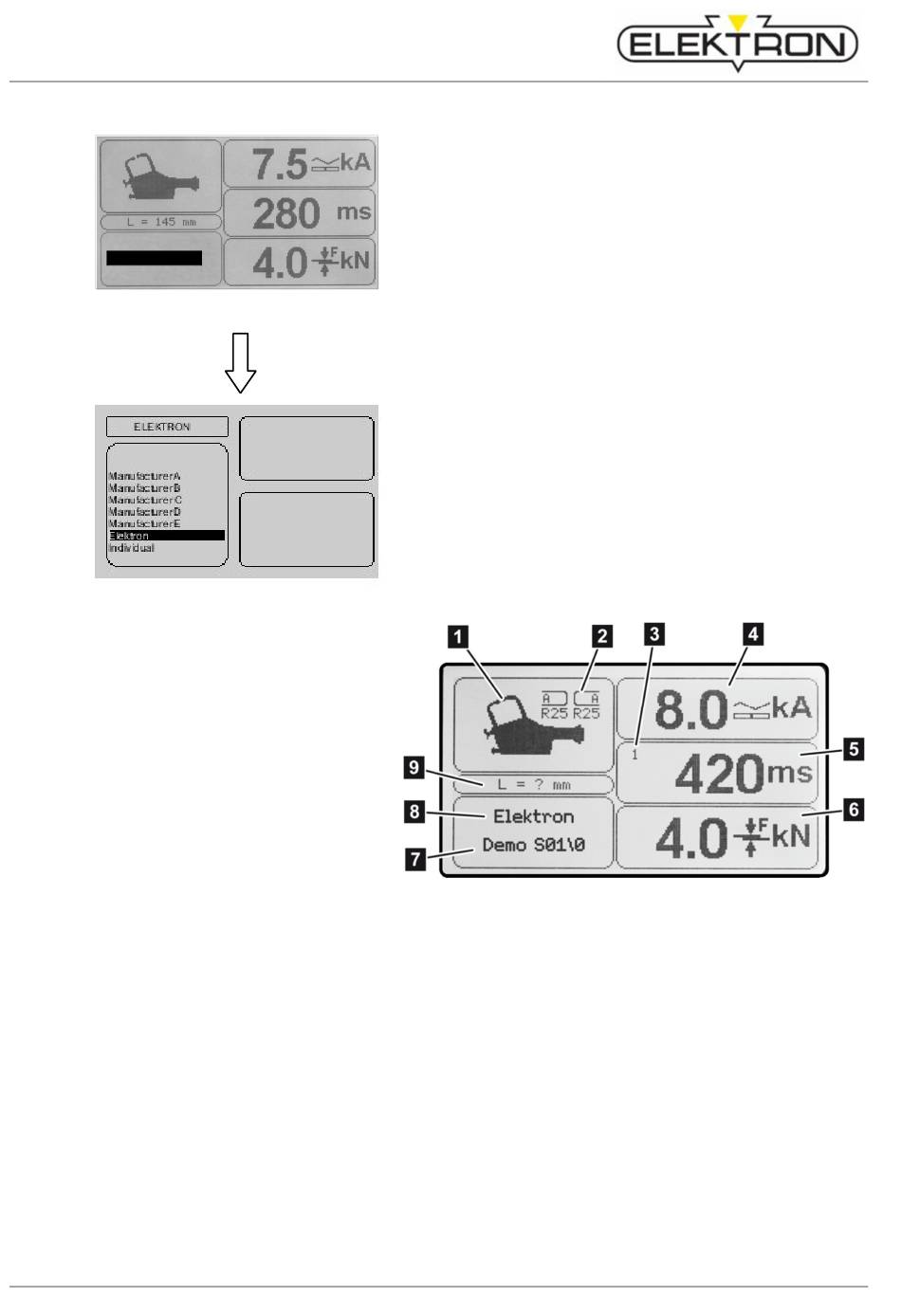

Fig. 54: Selecting the control mode
Fig. 55: Overview of OEM programs
1 Tools required
Electrode caps required for welding
2
program
3 No. of pulses (1 – 36)
4 Weld current required
5 Weld time required
(Total of all current times)
Contact force required
6
7 Program name or
8 Control mode
(depending on selection)
9 Required length of electrodes
48
This mode contains a number of pre-set programs provided
by OEMs.
1. Use the control knob to select mode
"Program selection". Confirm.
Next, the display will show a list of available welding
programs (Fig. 55).
2. Use the control knob to select a program. Confirm.
Next, you will see the parameters of the program selected
(Fig. 56).
Fig. 56: Program parameters
