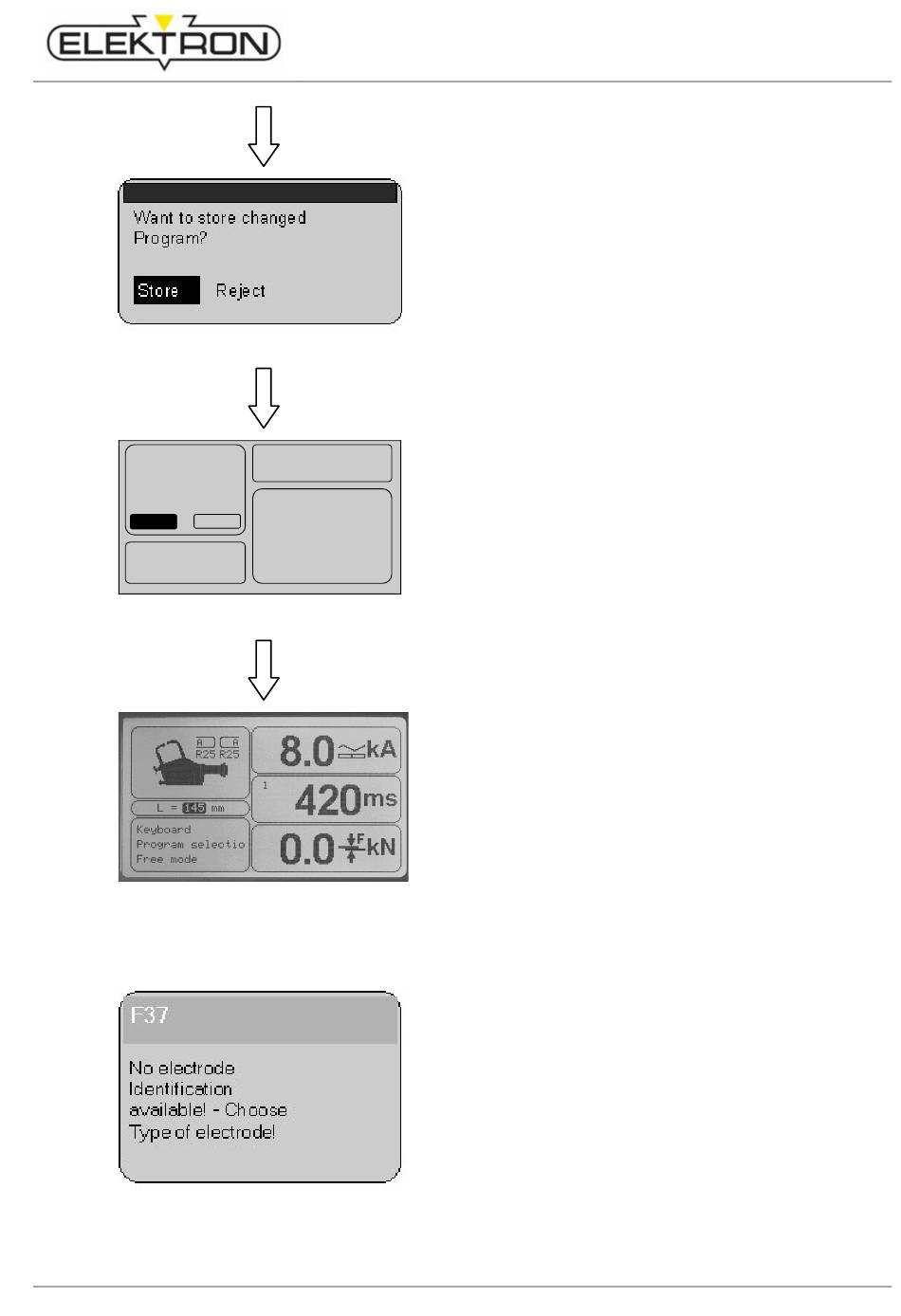

Fig. 64: Dialogue prompting to store or reject
A B C D E F G H I J K
L M N O P Q R S T U V
W X Y Z
. , +
. , + - - - - • • • • /
. , +
. , +
0 1 2 3 4 5 6 7 8 9 : : : :
<
; ; ; ; # % ! " @ ( )
DEL
OK
OK
OK
OK
Fig. 65: Entering program name and info
Fig. 66: Main menu
6.4.3
Electrode recognition
Fig. 67: No electrode recognition
Program name:
- - - - - - - - - - - - - - - - - - -
>
Program info :
=
- - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - -
Resistance welder MULTISPOT MI-100control
2. Press control knob again.
You will see the following prompt: "Want to store
changed program?" (Fig. 64).
3. Use the control knob to select "Store". Confirm.
In the following dialogue box, enter a Program name and
Program info, if required.
4. Use the control knob to enter and confirm the characters
you need to write the text.
5. When finished, select "OK". Confirm.
The new program has now been stored in the folder
"Individual programs".
6. To continue, press the control knob.
The display takes you back to the main menu.
The MULTISPOT MI-100control and the electrode arms are
equipped with an automatic electrode recognition system.
Electrodes are being identified automatically, and the length is
shown on the display.
If the automatic electrode recognition is off or does not work,
(Fig. 67), the length of the electrodes must be entered
manually. Proceed as follows:
There will be an error message. Acknowledge using the
control knob.
Operation
51
