CHAPTER 7– SERVICE AND REPAIR
W&M Switch Assembly Removal and Replacement
Part Number:
This assembly is only found for MultiLoad II EXL devices.
Removal:
1. Unplug the cable from the CPU board. Carefully depress the locking mechanism on the
connector and gently pull.
2. Remove the two screws securing the switch board assembly.
3. Remove the board.
Installation:
1. Install the new switch assembly using the same screws. Install with the cut corners facing
outward. DO NOT over-tighten and simply secure gently. Over-tightening will crack the ferrite
rings, damaging the switch.
2. Reinstall the connector.
3. Installation complete.
77
MultiLoad II/ RCU II Explosion Proof Lite (EXL) Installation Guide - Part # 6070
W&M Assembly Board:
W&M Bolt:

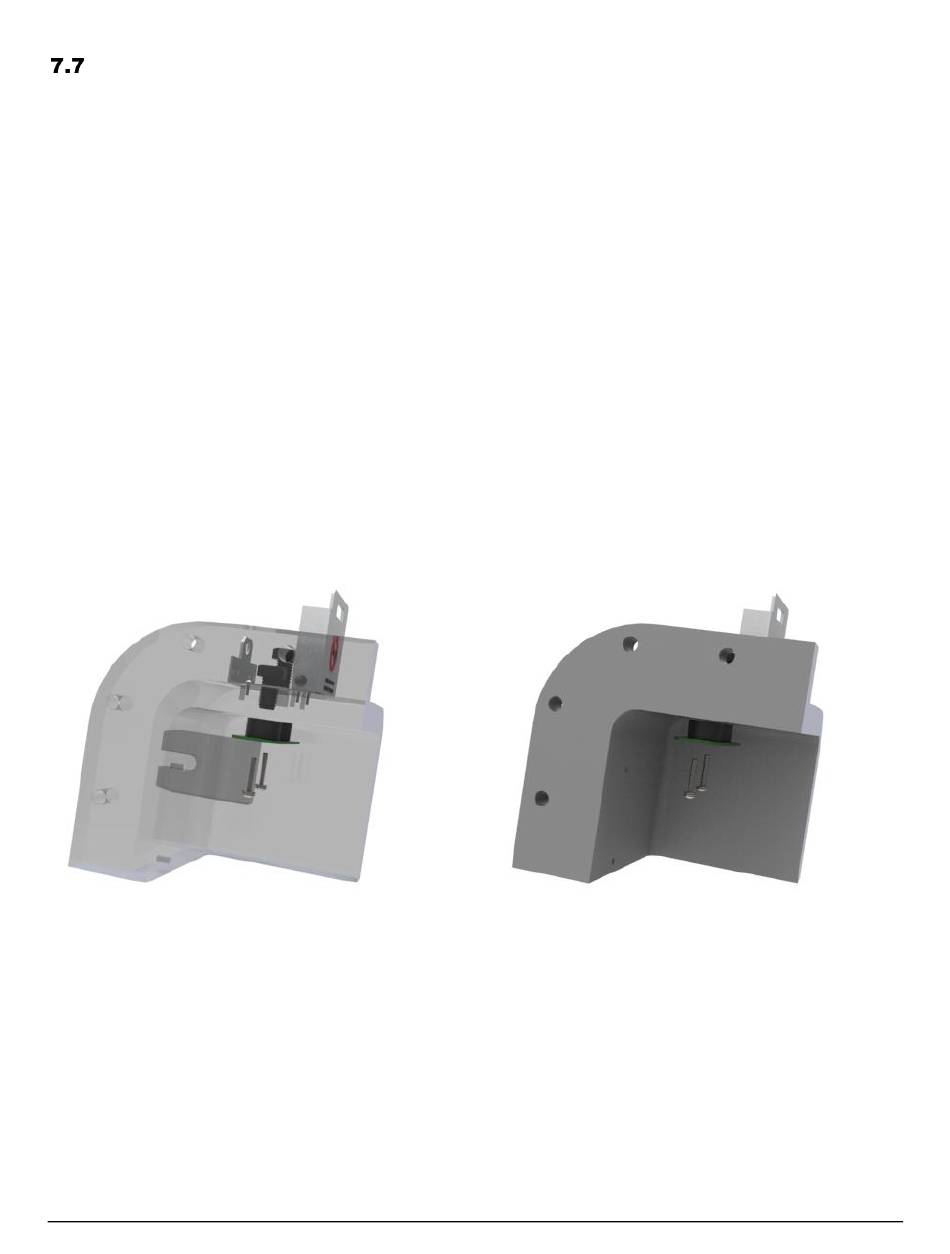

Figure 7.14 ML II/ RCU II EXL W&M Assembly
1900
1901
