CHAPTER 7– SERVICE AND REPAIR
The MultiLoad II/ RCU II EXL has been constructed with replaceable modules or sub-assemblies that
are available from Toptech. These include:
-
CPU Subassembly (CPU Chassis, CPU Board, Power Supply/ COM Board, I/O Board)
-
Display Subassembly (Active Matrix Display and Display Board)
- Keypad
-
Keypad Barrier Circuit
-
Prox Reader
- W&MS Subassembly
The following sections describe how to remove and replace each subassembly and, when applicable,
how to further disassemble the subassembly.
DISPLAY INTERFACE CABLE
68
MultiLoad II/ RCU II Explosion Proof Lite (EXL) Installation Guide - Part # 6070
BACKLIGHT POWER CABLE

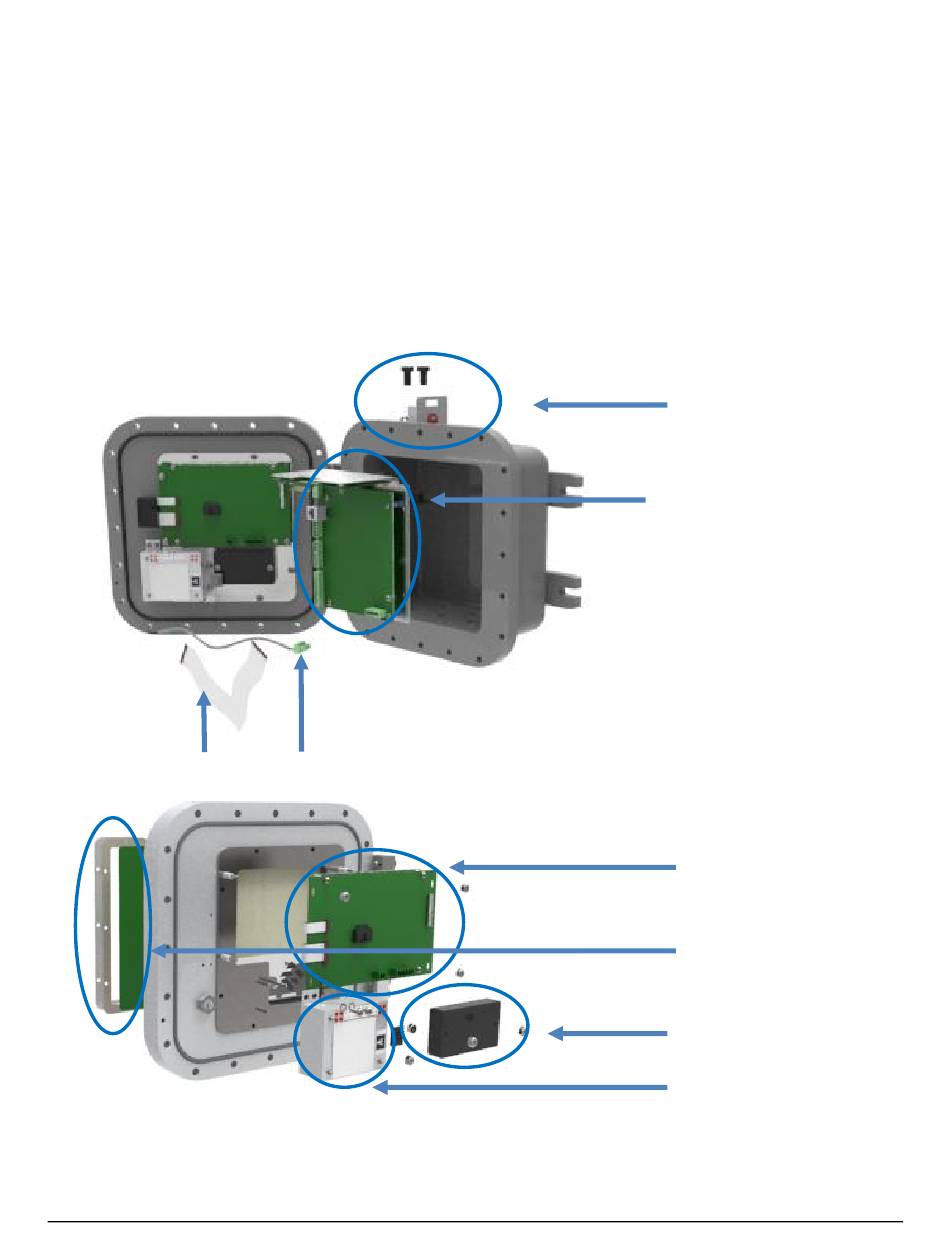

Figure 7.2 ML II/ RCU II EXL Unit Assembly
