CHAPTER 5– CONNECTING FIELD DEVICES TO THE I/O BOARD

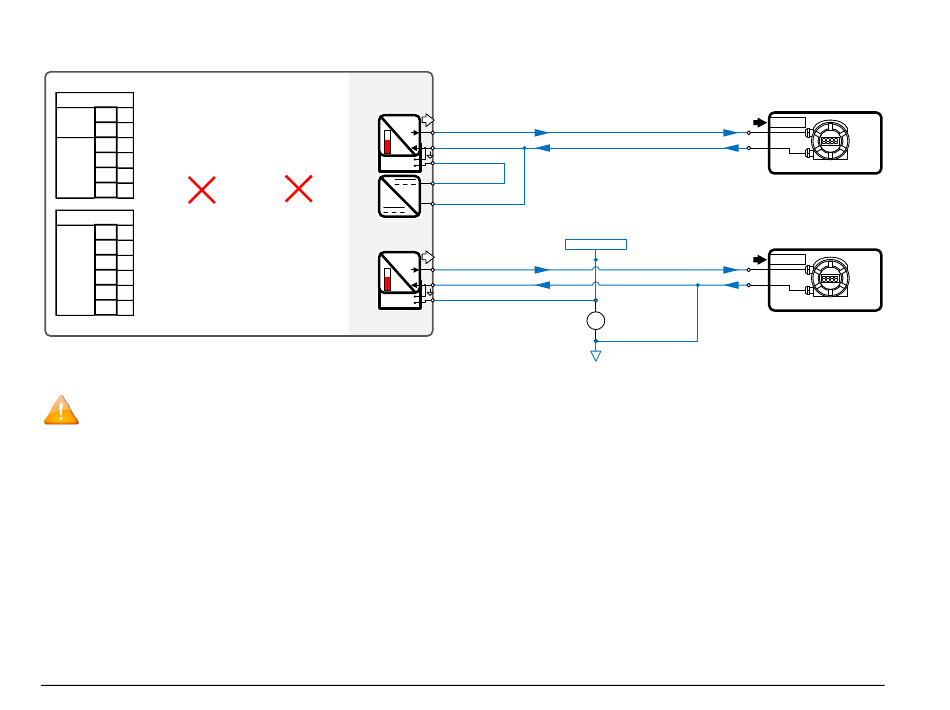

5.4.4.3 MultiLoad II 4 – 20 mA Output Wiring
IO_DA TB6
I+ 1
4-20 mA
IN
I- 2
✓
V+ 1
✓
COM 2
4-20 mA
OUT ✓
IOUT 3
N/A 4
IO_DA TB2A
✓
1
+
2
+
+ 3
12Vdc
+ 4
+ 5
✓
- 6
‡
Note: The 4-20mA output requires a power source (12-30vdc). The 12vdc output can be used as shown here.
