3. Connect the prox reader cable to the display subassembly.

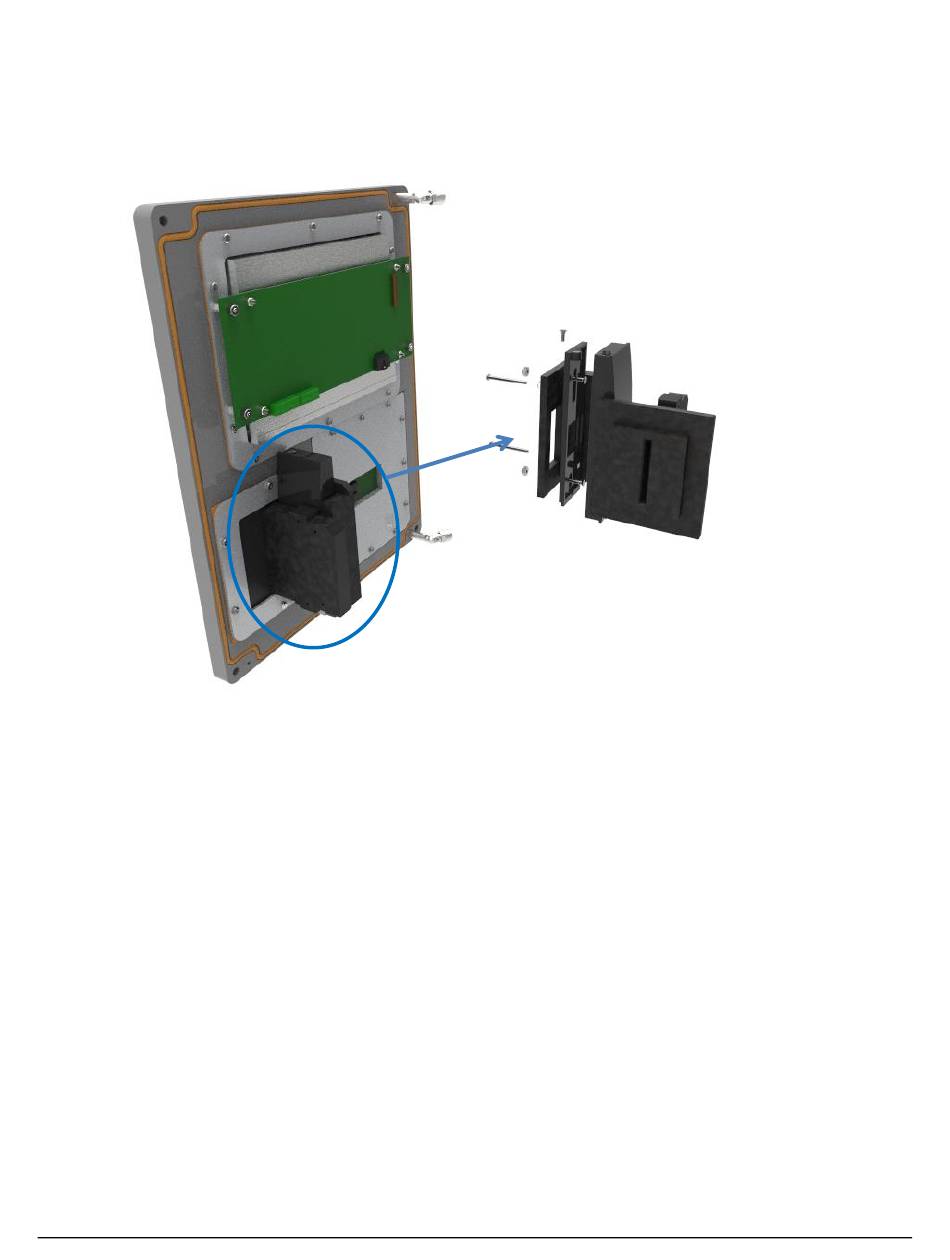

Figure 7.12
ML II/ RCU II Div2 Unit Assembly Prox/TWIC Slotted Card Holder RP15 (Obsolete)
7.6
W&M Switch Assembly Removal and Replacement
Part Number:
This assembly is only found for MultiLoad II DIV2 devices.
Removal:
1. Unplug the cable from the CPU board. Carefully depress the locking mechanism on the
connector and gently pull.
2. Remove the two screws securing the switch board assembly.
3. Remove the board.
W&M Assembly Board: 1900
W&M Bolt:
1901
75
