CHAPTER 2– OPERATING CONDITIONS AND COMPONENTS
MultiLoad II/ RCU II – EXL Model – Dimensions
The dimensions in this section are indicated in inches and millimeters (in parenthesis).

2.1.2.1 Front View

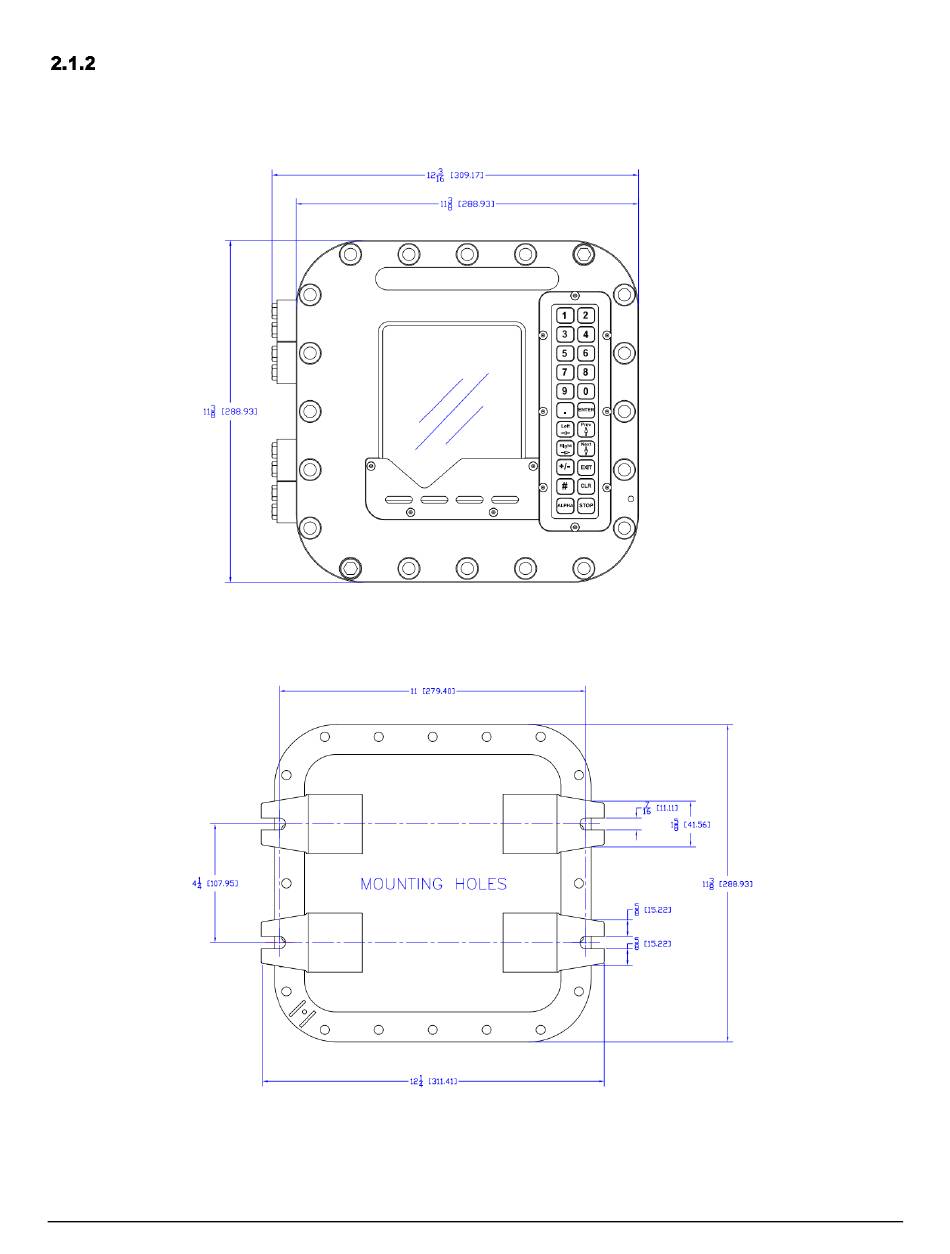

Unit Outline Drawing – Front View
Figure 2.2

2.1.2.2 Back View

Unit Outline Drawing – Back View
Figure 2.3
