CHAPTER 7– SERVICE AND REPAIR

Display Subassembly Removal and Replacement

Part Number:
Removal:
1. Disconnect the flat display cable (after releasing the cam lock –see 7.3.1), display power cable
and the keypad cable.
2. While supporting the display subassembly, remove the four mounting screws.
3. Do not attempt to disassemble the display subassembly. Return entire subassembly to
Toptech for repair after receiving an RMA number.
Installation:
1. While supporting the display subassembly, install the four mounting screws.
2. Connect the keypad cable, display power cable and the flat display cable.
3. Verify routing and clearance of the cable

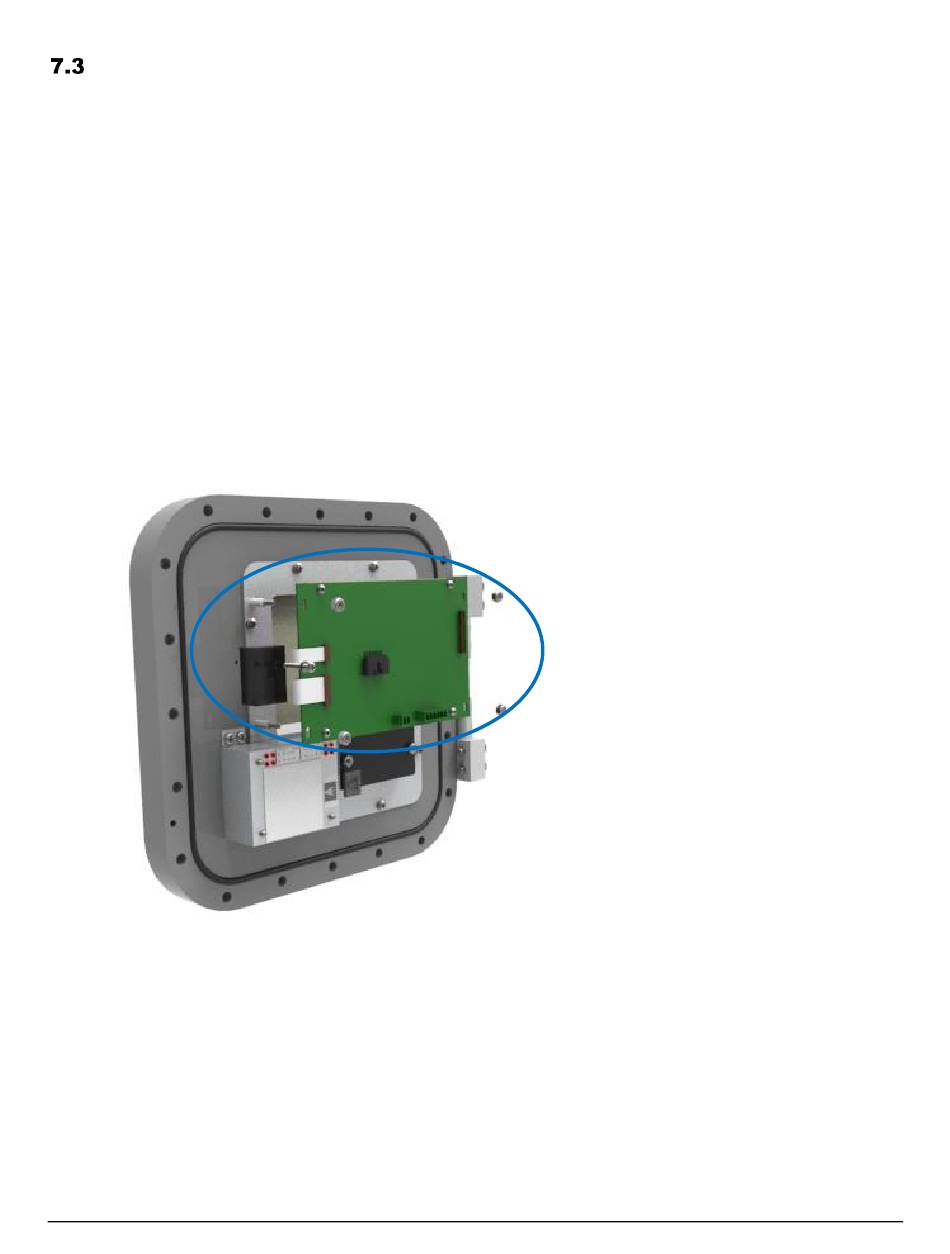

Figure 7.4
71
MultiLoad II/ RCU II Explosion Proof Lite (EXL) Installation Guide - Part # 6070
EXL Display Subassembly:
Backlight Power Cable:
ML II/ RCU II EXL Unit Cover Display Assembly
1667
1663
DISPLAY ASSEMBLY
