CHAPTER 6– CONFIGURATIONS

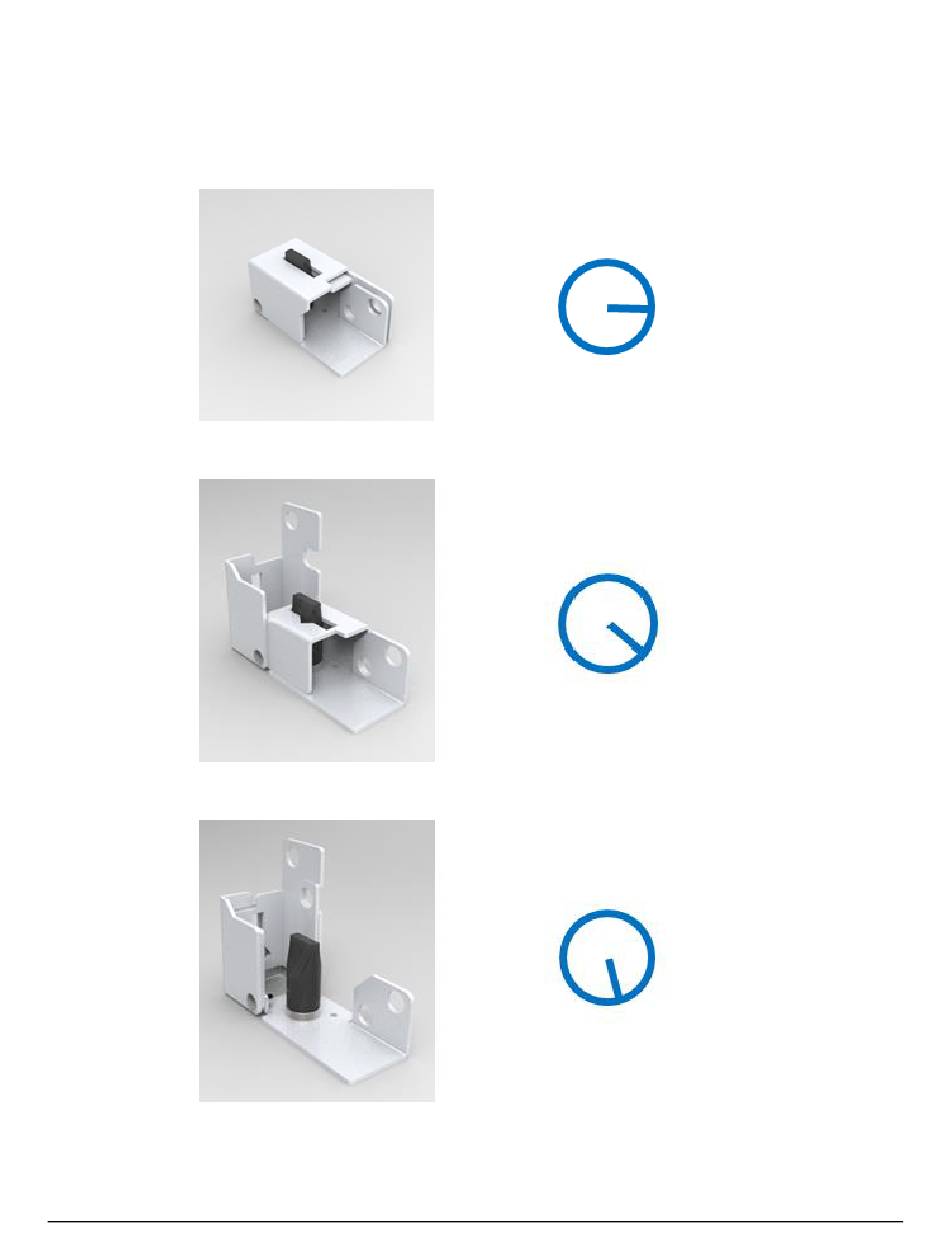

6.1.1.3 Single Rotary Program / W&M Switch (obsolete)
This design consists of a single 3-position external rotary switch with two individual covers which may
be locked and sealed with a wire and lead seal. The covers limit the switch rotation to three positions:
A - Two covers closed: Program access is denied and Weights and Measures access is denied.
B - First cover open: Program access is allowed and Weights and Measures access is denied.
C - Both covers open: Program access is allowed and Weights and Measures access is allowed.
Figure 6.3 Type 2 Program / W&M Switches
58
