CHAPTER 7– SERVICE AND REPAIR
Card Reader Removal and Replacement
Part Number: EXL Prox Card Reader 1669
Removal:
1. Disconnect the prox reader cable from the display subassembly.
2. Remove the two nuts holding prox reader.
3. Remove the prox reader.
Installation:
1. Reinstall the prox reader with the two nuts.
2. Connect the prox reader cable to the display subassembly.

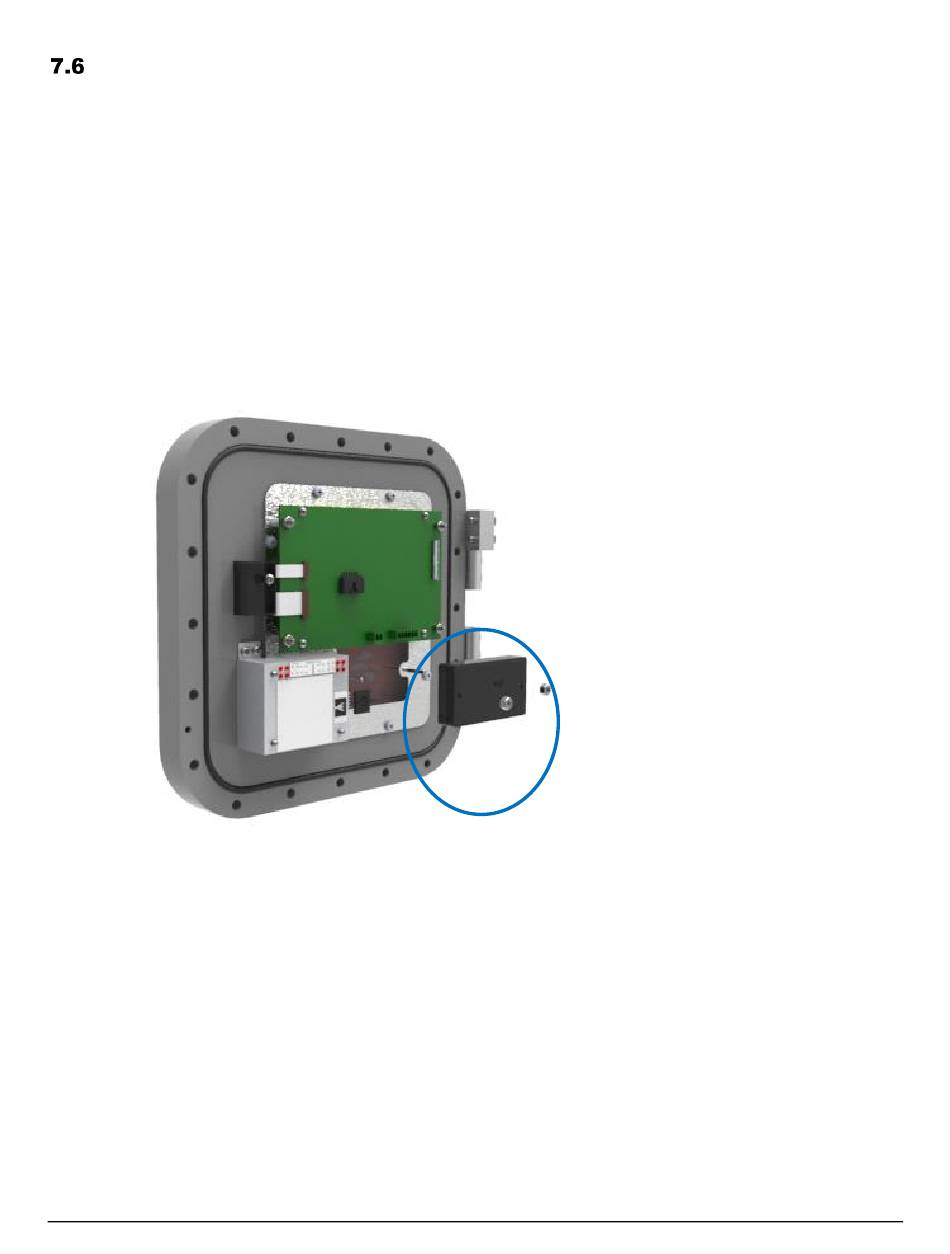

Figure 7.13
76
MultiLoad II/ RCU II Explosion Proof Lite (EXL) Installation Guide - Part # 6070
ML II/ RCU II EXL Cover Assembly Prox Bracket Mount
PROX READER
