Card Reader Removal And Replacement; Slotted Card Holder Mounted Prox Reader Removal And Replacement: (Current Model); Figure 7.8 Ml Ii/ Rcu Ii Div2 Unit Cover Keypad Assembly - Toptech MultiLoad II DIV-2 Installation Manual

Removal:
1. Disconnect the keypad cable from the back of the keypad.
2. Using a #2 screwdriver, remove all screws holding on the keypad plate.
3. Remove the plate.
4. Using a flat screwdriver, carefully pry out the keypad.
Installation:
1. Carefully install the keypad into the cover.
2. Install the keypad plate and retaining screws.
3. Reconnect the keypad cable to the keypad.

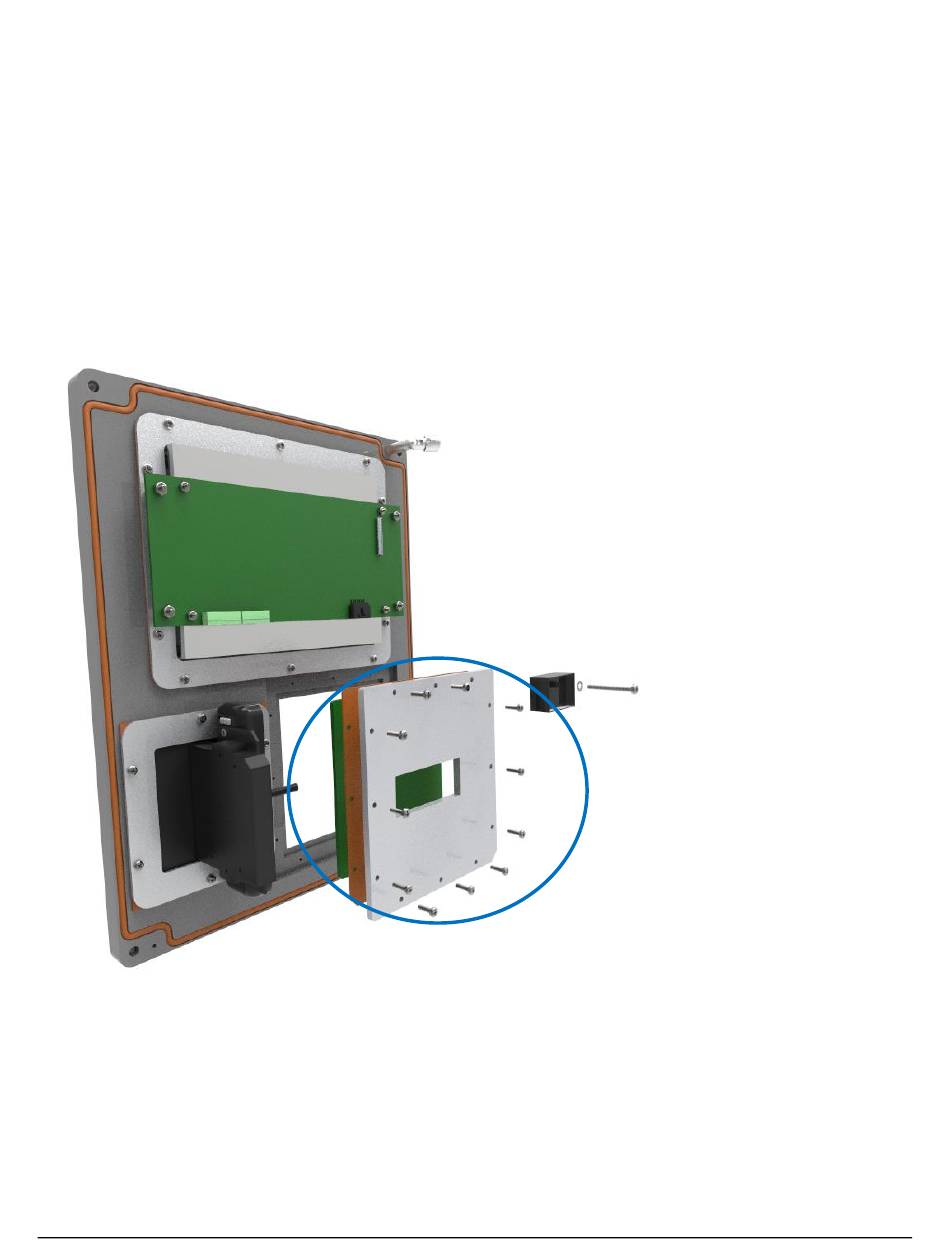

Figure 7.8
7.5

Card Reader Removal and Replacement

7.5.1

Slotted Card Holder Mounted Prox Reader Removal and Replacement: (Current Model)

ML II/ RCU II Div2 Unit Cover Keypad Assembly
KEYPAD
ASSEMBLY
