Programming Introduction; Digital Display - modbar av Series Manual

Description:
• This espresso machine has a CPU and many configurable settings.
• Additionally, there are many feedback controls employed in this espresso machine to troubleshoot problems should they occur.
• The following is a brief introduction to the controls and display and how they interact with the operator.
1 2 3 4 5
G1 MODBAR G2
█ █
95.7°C 95.4°C
6 7
8 9
23
10
11
The digital display is a backlit display capable of displaying 2 lines of 16 characters. The display enables the operator to interact with
the espresso machine to visibly change parameter values. The display also provides valuable information to the operator.
There are several warnings that the can be displayed to alert the operator of an unusual condition or a fault. Additionally, simple
messages are displayed alerting the operator that an action has been started or that a process needs to begin.
34

Programming Introduction

Digital Display

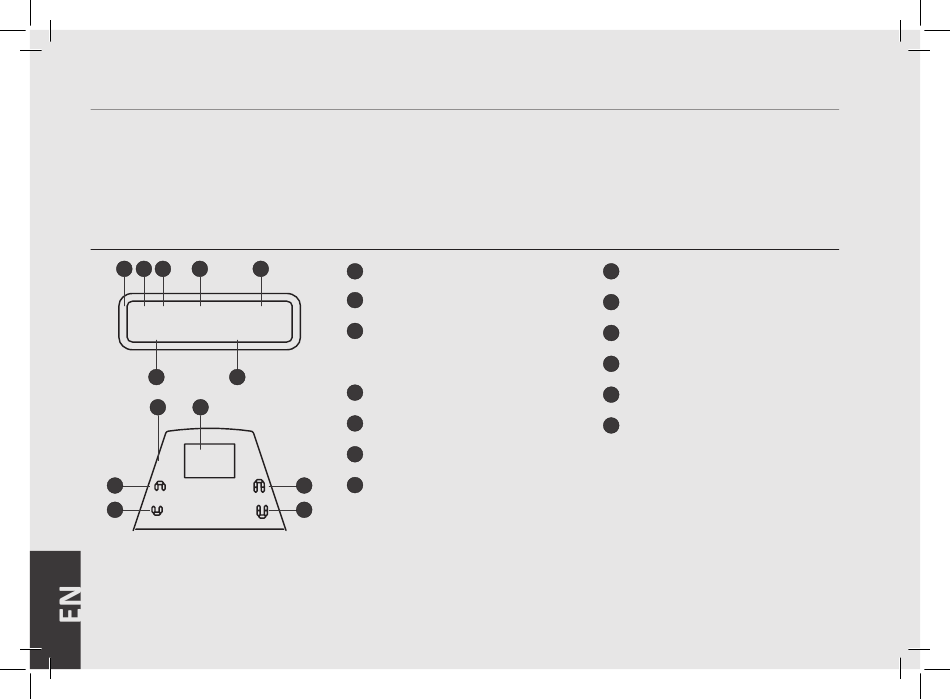

Digital display
1
2 Group 1 head
3 Heating indicator (on during heating,
off when the temperature has been
reached)
4 Name
5 Group 2 head (if present)
6 Group 1 temperature
12 7 Group 2 temperature
13
Digital display Tap
8
Timer
9
Short up
10
Short down
11
Long up
12
Long down
13
