Summary of Contents for modbar Steam System

  • Page 2: Table Of Contents

    Module not heating ..........................22 Note on safety reset switches: ......................22 Tap not dispensing ..........................22 Steam and/or water is visible around the ball fitting or drive shaft ........... 22 Boiler not filling ........................... 22 www.modbar.com Document 003-0042-1.1| Software Version 2.0...

  • Page 3: Installation

    ● Improper use or installation of Modbar equipment can cause product damage and or serious injury to end user. Modbar will not be held responsible for any damages or injuries occurring if equipment has been misused, installed improperly, or tampered with.
  • Page 4 If damage is suspected, contact Modbar immediately. In the event that equipment needs to be returned to Modbar, or shipped for any reason, it should be shipped in the factory approved packaging. If you have discarded the packaging, please contact Modbar for replacements.
  • Page 5 PERATING ANUAL TEAM YSTEM www.modbar.com Document 003-0042-1.1| Software Version 2.0...

  • Page 6: General Use

    In this position, the module is in operating mode. Power is applied to the heating elements, and all functions operate as normal. Upon installation, the Modbar steam module must be primed before use. This is accomplished by the following steps.
  • Page 7 PERATING ANUAL TEAM YSTEM The touch screen is used for selecting and displaying data. The multi-function encoder is used for editing data. The functions of the encoder are shown below: www.modbar.com Document 003-0042-1.1| Software Version 2.0...
  • Page 8 Boiler pressure read-out: Displays current pressure of the steam boiler, this pressure is relative and calculated by the boiler process temperature value. No boiler pressure will be present until the process temperature is above the boiler point of water (212°F / 100°C). www.modbar.com Document 003-0042-1.1| Software Version 2.0...

  • Page 9: Home Screen

    Home screen: This button navigates back to the home screen / dashboard. Preferences: This button navigates to the system preferences page. File operations: This button navigates to the file operations page. System info: This button displays the system version and software information. www.modbar.com Document 003-0042-1.1| Software Version 2.0...
  • Page 10 Pressure units: This button sets the system’s pressure units, in: bars or psi Temperature units: This button sets the system’s temperature units, in: Celsius (C), Fahrenheit (F) or Kelvin (K) Advanced: This button navigates to the advanced preference settings page. www.modbar.com Document 003-0042-1.1| Software Version 2.0...
  • Page 11 Factory Reset. Lighting: This button navigates to the lighting settings screen. Save & Exit: You guessed it! This button saves the settings changes and exits the current screen. www.modbar.com Document 003-0042-1.1| Software Version 2.0...
  • Page 12 This button will fill the boiler while it is pressed and held. Release the button once the water fills approximately half of the sight glass. www.modbar.com Document 003-0042-1.1| Software Version 2.0...
  • Page 13 LCD backlight: Use this slider to control the brightness of the touch screen display. RGB: Using the RGB color sliders you can create any color of the rainbow for the module’s internal LED lighting. www.modbar.com Document 003-0042-1.1| Software Version 2.0...
  • Page 14 -> main settings -> file operations Load settings: This button will navigate to the load settings screen. Save settings: This button will navigate to the save settings screen. Update software: This button will navigate to the update software screen. www.modbar.com Document 003-0042-1.1| Software Version 2.0...
  • Page 15 Cursor select: The dotted outline cursor select indicates which file is selected on screen. You may use the rotary encoder or up/down function of the joystick to navigate the file list. File select button: Pressing select will load the currently selected settings file. This all user accessible settings and preferences. www.modbar.com Document 003-0042-1.1| Software Version 2.0...
  • Page 16 File select button: Pressing select will save the current settings to the selected file. This includes all user accessible settings and preferences. www.modbar.com Document 003-0042-1.1| Software Version 2.0...
  • Page 17 -> main settings -> file operations -> save settings -> new file File name: This is a descriptive name for the settings file. Touch the name to highlight the field, use the encoder wheel and push-button to rename the file if desired. www.modbar.com Document 003-0042-1.1| Software Version 2.0...
  • Page 18 File select button: Pressing select will install the selected software update on the system. The software update process is complete when the machine reboots, displaying the Modbar logo on the module touch screen.
  • Page 19 Display board info: This field displays the hardware version and serial number of the display board. Main board info: This field displays the hardware version and serial number of the main board. Build info: This field displays the software build of each of the circuit boards in the system. www.modbar.com Document 003-0042-1.1| Software Version 2.0...

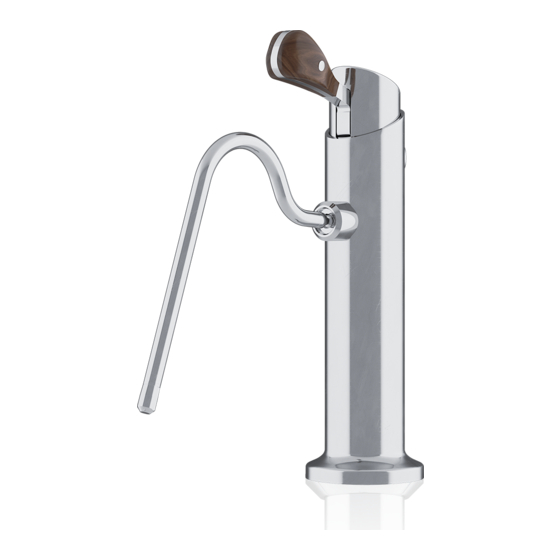

  • Page 20 TEAM YSTEM The Modbar steam tap is operated via a lever handle located on top of the tap. This handle actuates a valve that allows steam to pass through the steam wand. To dispense steam, move the lever handle from the closed position to the open position. If desired, steam velocity can be metered by moving the handle only slightly into the open position.

  • Page 21: Maintenance

    It is very important that the media for your water filtration is replaced on a regular basis, in accordance with the manufacturer’s recommendations. Please refer to the documentation for your filtration system for proper operating and cleaning instructions. www.modbar.com Document 003-0042-1.1| Software Version 2.0...
  • Page 22 Water quality is very important to the proper function of your Modbar equipment. Improper water filtration can lead to serious problems with both your equipment and the quality of the coffee produced.

  • Page 23: Preventative Maintenance

    Verify that water is turned on to the module. Verify that water pressure is adequate. The operable pressure range for Modbar equipment is 35-70psi. If water pressure is too low, the boiler will not fill. Verify that the displayed machine status reads “Filling” on the home screen. If it does not, this more than likely indicates scale on the fill probe, and the probe will need to be cleaned and/or the boiler may need to be descaled.
