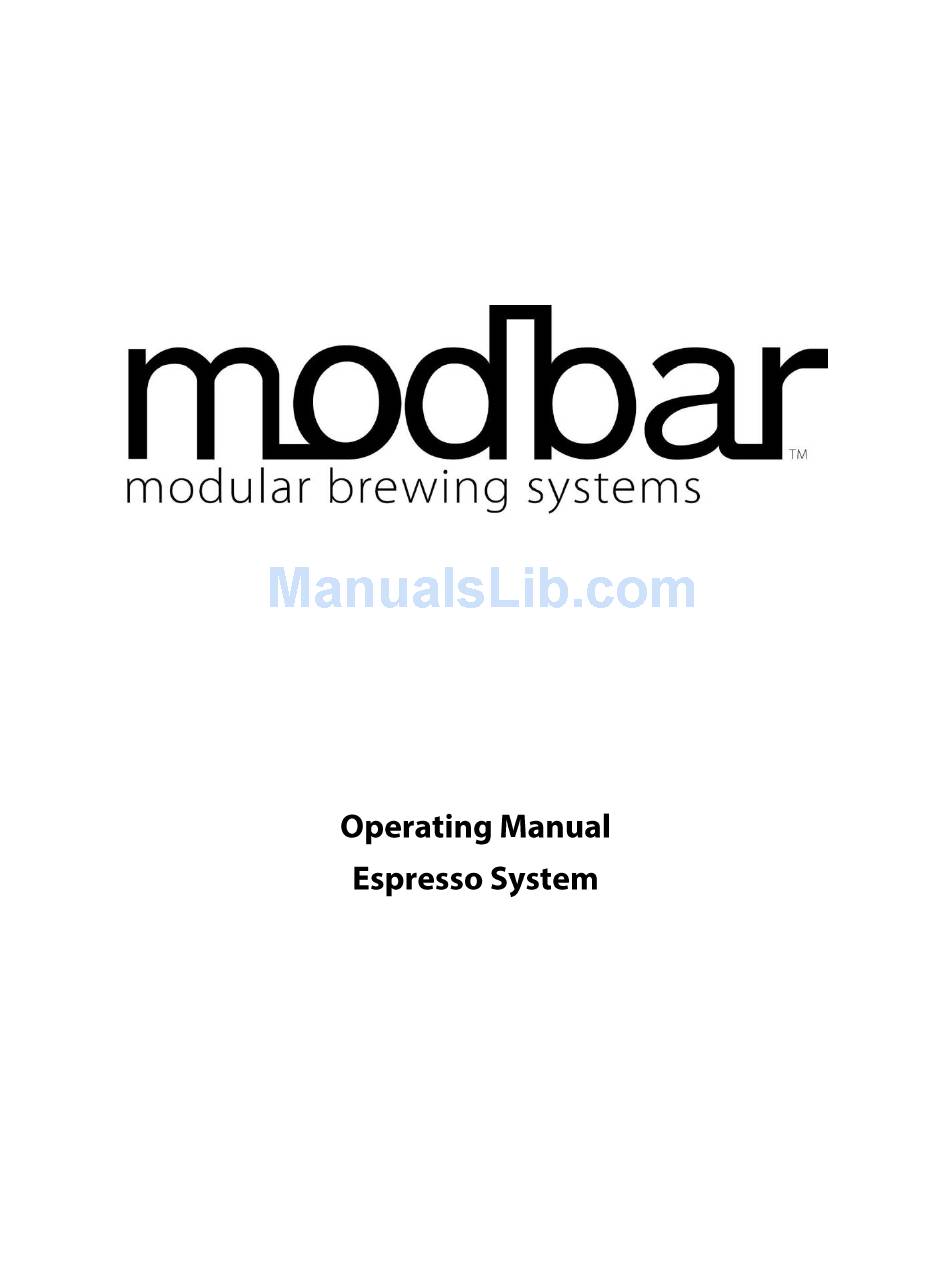

modbar espresso system Operating Manual

Hide thumbs Also See for MODBAR espresso system:

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the MODBAR espresso system and is the answer not in the manual?

Questions and answers

Related Manuals for modbar MODBAR espresso system

Summary of Contents for modbar MODBAR espresso system

  • Page 2: Table Of Contents

    Advanced preferences screen page 2: ....................16 Lighting screen: ........................... 17 File operations screen: ........................18 System info screen: ..........................23 Dispensing Operations ..........................24 Automatic Operations ......................... 24 Manual Operations ..........................24 Rinsing ..............................24 Cleaning cycle ............................25 www.modbar.com Document 001-0040-1.1| Software Version 2.0...
  • Page 3 Cleaning the exterior of the equipment ..................... 27 Water Filtration/Softener ........................27 Preventative maintenance ........................28 Basic diagnostics ............................. 29 Module not heating ..........................29 Tap not dispensing ..........................29 Pump is overshooting pressure ......................29 www.modbar.com Document 001-0040-1.1| Software Version 2.0...

  • Page 4: Installation

    ● Improper use or installation of Modbar equipment can cause product damage and or serious injury to end user. Modbar will not be held responsible for any damages or injuries occurring if equipment has been misused, installed improperly, or tampered with.
  • Page 5 If damage is suspected, contact Modbar immediately. In the event that equipment needs to be returned to Modbar, or shipped for any reason, it should be shipped in the factory approved packaging. If you have discarded the packaging, please contact Modbar for replacements.
  • Page 6 PERATING ANUAL SPRESSO YSTEM www.modbar.com Document 001-0040-1.1| Software Version 2.0...
  • Page 7 PERATING ANUAL SPRESSO YSTEM The three-position power switch on the Modbar module has three separate functions, as illustrated in the following image. 0 - Off In this position, the module is in the off position. I - Standby Mode In this position, the module is in standby mode. When in standby mode, all operations function as normal, but no power is applied to the heating elements.

  • Page 8: General Use

    ANUAL SPRESSO YSTEM Upon installation, the Modbar module must be primed before use. This is accomplished by the following steps. ● Ensure that filtered water is supplied to the module. ● Ensure that the power switch is in the off position.
  • Page 9 PERATING ANUAL SPRESSO YSTEM The touch screen is used for selecting and displaying data. The multi-function encoder is used for editing data. The functions of the encoder are shown below: www.modbar.com Document 001-0040-1.1| Software Version 2.0...
  • Page 10 Heat zone: In automatic temperature mode, this button has no function. In manual temperature mode, pressing this button cycles through the 3 heat zones on the espresso system: Inlet Boiler, Outlet Boiler and Brew Head. (Refer to “Advanced preferences screen page 2”) Settings button: This button navigates to the main settings screen.
  • Page 11 Profile menu: This button navigates to the profile selection menu. Preferences: This button navigates to the system preferences page. File operations: This button navigates to the file operations page. System info: This button displays the system version and software information. www.modbar.com Document 001-0040-1.1| Software Version 2.0...
  • Page 12 Pressing the center encoder button selects the profile highlighted on the tap. The center encoder button also navigates to the profile selection menu from the home screen. www.modbar.com Document 001-0040-1.1| Software Version 2.0...

  • Page 13: Interface

    SPRESSO YSTEM The pressure profiling capability of the Modbar espresso system can be programmed in “simple” or “advanced” modes, each of which have their own settings screen. It is important to understand the variables, their definitions, and how they work together to design successful profiles that provide desirable extraction characteristics.
  • Page 14 PERATING ANUAL SPRESSO YSTEM home -> main settings -> profile selection -> edit profile home -> main settings -> profile selection -> edit profile -> advanced www.modbar.com Document 001-0040-1.1| Software Version 2.0...
  • Page 15 Temperature units: This button sets the system’s temperature units, in: Celsius (C), Fahrenheit (F) or Kelvin (K) Volume units: This button sets the system’s volume units to: Milliliters (mL) or Fluid Ounces (oz.) Advanced: This button navigates to the advanced preference settings page. www.modbar.com Document 001-0040-1.1| Software Version 2.0...
  • Page 16 Lighting: This button navigates to the lighting settings screen. Advance preferences page 2: This button will navigate to page 2 of the advanced preferences screen Save & Exit: You guessed it! This button saves the settings changes and exits the current screen. www.modbar.com Document 001-0040-1.1| Software Version 2.0...

  • Page 17: Home Screen

    Rinse Power: The rinse power value controls the motor speed percentage during the rinse cycle. This can be modified for a more powerful or less powerful rinse. www.modbar.com Document 001-0040-1.1| Software Version 2.0...
  • Page 18 LCD backlight: Use this slider to control the brightness of the touch screen display. RGB: Using the RGB color sliders you can create any color of the rainbow for the module’s internal LED lighting. www.modbar.com Document 001-0040-1.1| Software Version 2.0...
  • Page 19 -> main settings -> file operations Load settings: This button will navigate to the load settings screen. Save settings: This button will navigate to the save settings screen. Update software: This button will navigate to the update software screen. www.modbar.com Document 001-0040-1.1| Software Version 2.0...
  • Page 20 File select button: Pressing select will load the currently selected settings file. This includes pressure profiles and all other user accessible settings and preferences. Note: existing profiles will be overwritten. www.modbar.com Document 001-0040-1.1| Software Version 2.0...
  • Page 21 File select button: Pressing select will save the current settings to the selected file. This includes pressure profiles and all other user accessible settings and preferences. www.modbar.com Document 001-0040-1.1| Software Version 2.0...
  • Page 22 -> main settings -> file operations -> save settings -> new file File name: This is a descriptive name for the settings file. Touch the name to highlight the field, use the encoder wheel and push-button to rename the file if desired. www.modbar.com Document 001-0040-1.1| Software Version 2.0...
  • Page 23 File select button: Pressing select will install the selected software update on the system. The software update process is complete when the machine reboots, displaying the Modbar logo on both the module touch screen and espresso tap displays.
  • Page 24 Head board info: This field displays the hardware version and serial number of the brew head board. Build info: This field displays the software build of each of the circuit boards in the system. www.modbar.com Document 001-0040-1.1| Software Version 2.0...

  • Page 25: Pressure Profiling

    SPRESSO YSTEM The Modbar espresso tap is able to command multiple functions using a single handle. We do this by combining the movement of three handle positions, as illustrated in the above diagram. Following are instructions for operating each of the tap functions.

  • Page 26: Rinsing

    ANUAL SPRESSO YSTEM The Modbar also has integrated cleaning/back flushing cycle functionality built in. To use the cleaning cycle: ● Activate the cleaning cycle by toggling the handle 3-times in short succession. The toggle motion is the same as used in the rinsing cycle.

  • Page 27: Maintenance

    Back flushing must be performed on a regular basis to ensure the proper function and cleanliness of the espresso system. We recommend following this procedure on a nightly basis.  Put one scoop of detergent into a blind filter, and insert it into the group to be cleaned. (Use the amount of detergent recommended on the package) ...
  • Page 28 It is very important that the media for your water filtration is replaced on a regular basis, in accordance with the manufacturer’s recommendations. Please refer to the documentation for your filtration system for proper operating and cleaning instructions. www.modbar.com Document 001-0040-1.1| Software Version 2.0...
  • Page 29 Check the interior of the boilers, and if necessary rinse out with a proper cleaning product allowed for food and beverage appliances Water quality is very important to the proper function of your Modbar equipment. Improper water filtration can lead to serious problems with both your equipment and the quality of the coffee produced.
  • Page 30 Also, ensure that your filtration supply is adequate for all of the equipment installed on it. In some cases, running a sink or other equipment connected to the same filtration line as the Modbar will cause pressure spikes during the extraction process. This is due to a sudden amount of water being drawn by a different device.
