Commissioning
5.3.7 Restoring Default Settings
NOTICE!
Risk of losing programming, motor data, localization, and
monitoring records by restoration of default settings. To
provide a backup, upload data to the LCP before initiali-
zation.
Restoring the default parameter settings is done by initiali-
zation of the adjustable frequency drive. Initialization is
carried out through parameter 14-22 Operation Mode
(recommended) or manually.
•
Initialization using parameter 14-22 Operation
Mode does not reset adjustable frequency drive
settings, such as operating hours, serial communi-
cation selections, personal menu settings, fault
log, alarm log, and other monitoring functions.
•
Manual initialization erases all motor,
programming, localization, and monitoring data
and restores factory default settings.
Recommended initialization procedure, via
parameter 14-22 Operation Mode
1. Press [Main Menu] twice to access parameters.
2. Scroll to parameter 14-22 Operation Mode and
press [OK].
Scroll to [2] Initialization and press [OK].
3.
4. Remove power to the unit and wait for the
display to turn off.
5. Apply power to the unit.
Default parameter settings are restored during start-up.
This may take slightly longer than normal.
6. Alarm 80 is displayed.
7. Press [Reset] to return to operation mode.
Manual initialization procedure
1. Remove power to the unit and wait for the
display to turn off.
2. Press and hold [Status], [Main Menu], and [OK] at
the same time while applying power to the unit
(approximately 5 s, or until a click is heard, and
the fan starts).
Factory default parameter settings are restored during
start-up. This may take slightly longer than normal.
MG34U422
Instruction Manual
Manual initialization does not reset the following
adjustable frequency drive information:
•
•
•
•

5.4 Basic Programming

5.4.1 Commissioning via [Main Menu]

Recommended parameter settings are intended for start-
up and check-out purposes. Application settings may vary.
Enter data with power ON, but before operating the
adjustable frequency drive.
1.
2.

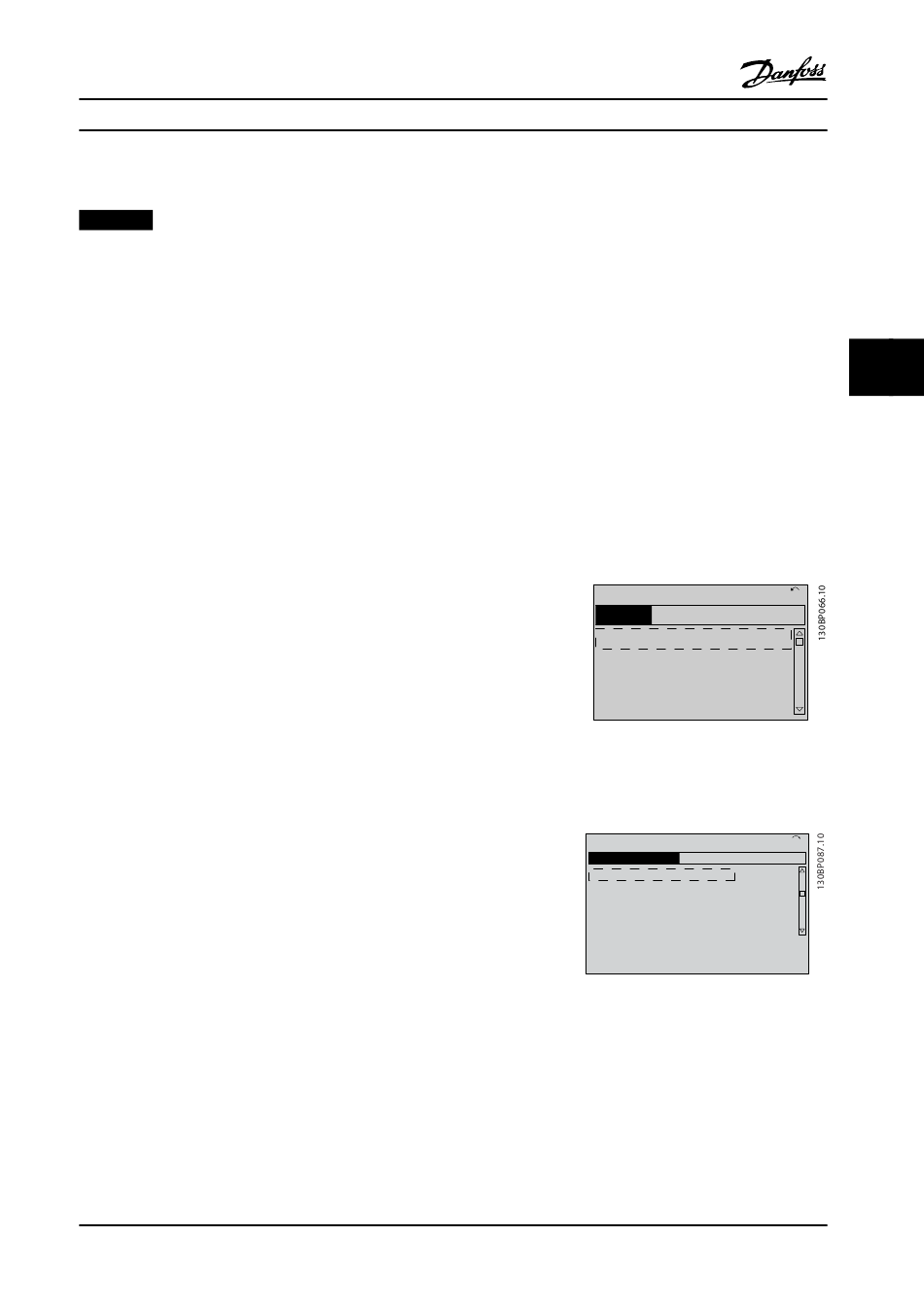

Figure 5.2 Main Menu
3.
Figure 5.3 Operation/Display
4.
Danfoss A/S © 06/2015 All rights reserved.
Parameter 15-00 Operating hours
Parameter 15-03 Power-ups
Parameter 15-04 Over Temps
Parameter 15-05 Over Volts
Press [Main Menu] on the LCP.
Press the navigation keys to scroll to parameter
group 0-** Operation/Display and press [OK].
3.84 A
1107 RPM
Main Menu
0 - ** Operation/Display
1 - ** Load/Motor
2 - ** Brakes
3 - ** Reference / Ramps
Press the navigation keys to scroll to parameter
group 0-0* Basic Settings and press [OK].
0.0% 0.00A
Operation / Display
0-0 * Basic Settings
0-1 Set-up Operations
*
0-2 * LCP Display
0-3 LCP Custom Readout
*
Press the navigation keys to scroll to
parameter 0-03 Regional Settings and press [OK].
5 5
1 (1)
1(1)
0- **
