Introduction
1 1
Options unit
designations
D5h
D6h
D7h
D8h
Table 1.2 Overview of Extended Options
The D7h and D8h adjustable frequency drives (D2h plus
options cabinet), include an approx. 200 mm (8 in)
pedestal for floor mounting.
There is a safety latch on the front cover of the options
cabinet. If the adjustable frequency drive is supplied with a
line power disconnect or circuit breaker, the safety latch
prevents the cabinet door from being opened while the
adjustable frequency drive is energized. Before opening
the door of the adjustable frequency drive, open the
disconnect or circuit breaker (to de-energize the adjustable
frequency drive) and remove the cover of the options
cabinet.
For adjustable frequency drives purchased with a
disconnect, contactor or circuit breaker, the nameplate
label includes a type code for a replacement that does not
include the option. If there is a problem with the
adjustable frequency drive, it is replaced independently of
the options.
6
VLT
Extension cabinets Possible options
•
D1h enclosure with Brake.
short extension.
•
Disconnect.
•
D1h enclosure with Contactor.
tall extension.
•
Contactor with
disconnect.
•
Circuit breaker.
•
D2h enclosure with Brake.
short extension.
•
Disconnect.
•
D2h enclosure with Contactor.
tall extension.
•
Contactor with
disconnect.
•
Circuit breaker.
Danfoss A/S © 06/2015 All rights reserved.
®
AutomationDrive FC 302
1754
[69.1]

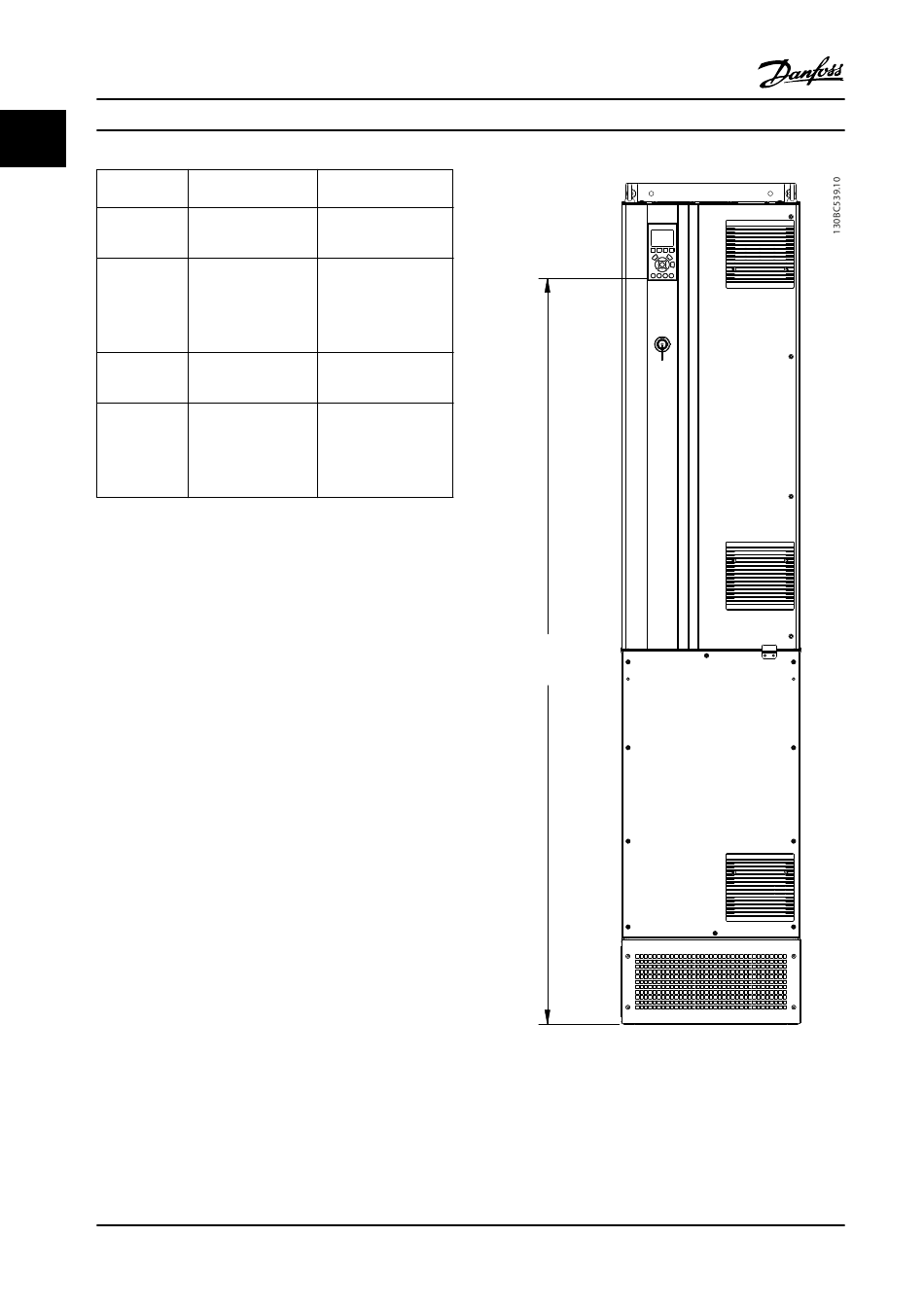

Figure 1.3 D7h enclosure
